31001PAW 03 – GAS CONTROLS
Written by
in

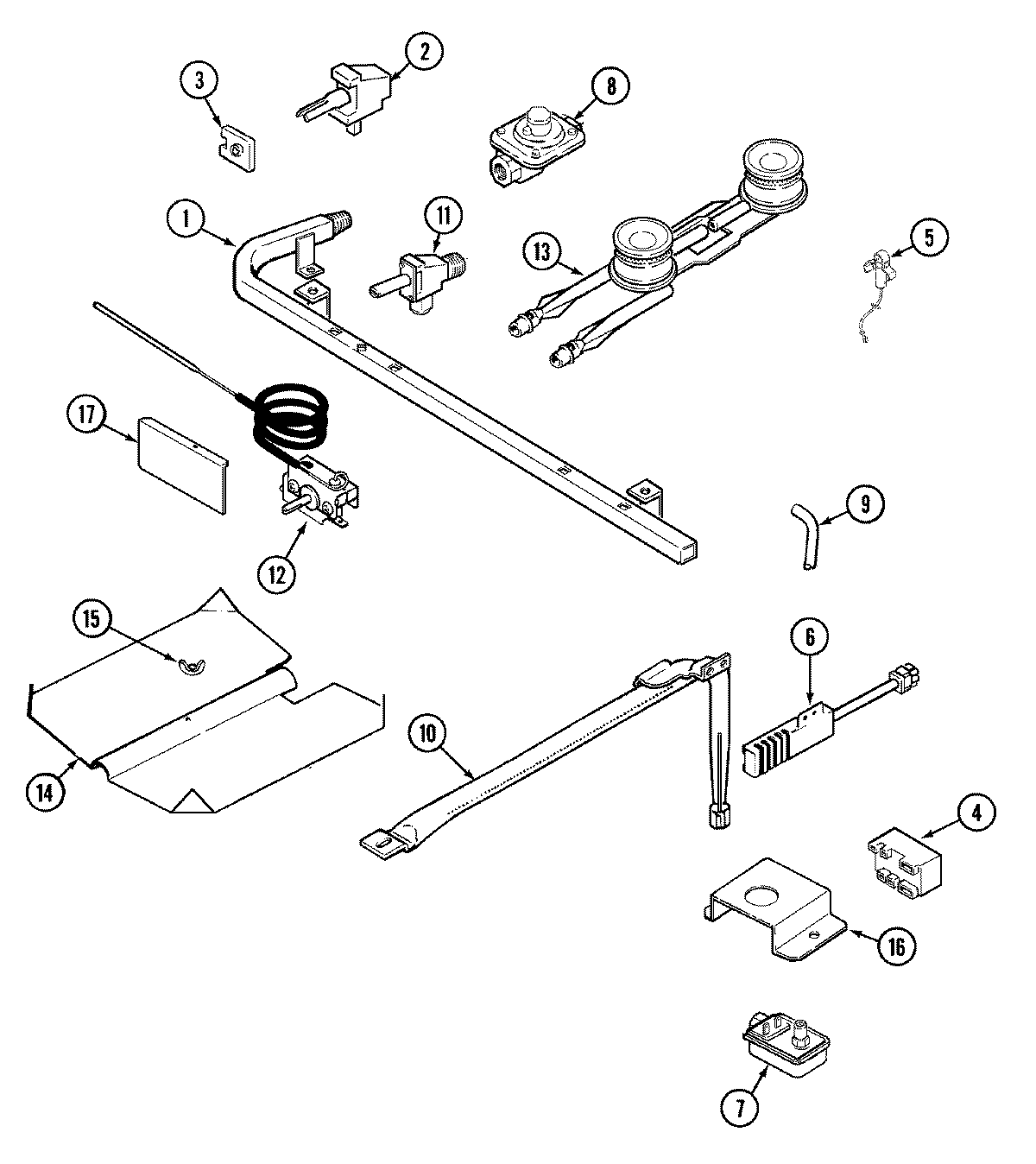

31001PAW 03 – GAS CONTROLS
Products
Position
Product
1
MAY 74003913
1
MAY 74002382
2
MAY 12002286
2
WP8273096 Whirlpool Screw
2
MAY 74002383
3
MAY 74002384
3
MAY 74009461
4
MAY 7431P006-60
4
MAY 74004282
5
MAY 74002385
5
MAY 74002386
6
MAY 7432P076-60
6
WP3351614 Whirlpool Screw
7
MAY 74006281
7
MAY 74005329
7
MAY 74002387
8
MAY 7510P049-60
9
MAY 74002388
10
MAY 74002434
11
MAY 7101P044-60
11
12002277 Whirlpool Oven Valve Kit & Screw
11
12002280 Whirlpool Oven Valve Kit and Screw
12
WP74002390 Whirlpool Oven Thermostat
12
MAY 7101P280-60
13
MAY 74002392
13
SCREW (8BX3/8-NI)
13
MAY 74010149
13
MAY 74010148
14
MAY 74002393
15
NUT, WING
16
MAY 74002394
17
SCREW
17
MAY 74002391
18
NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
←
