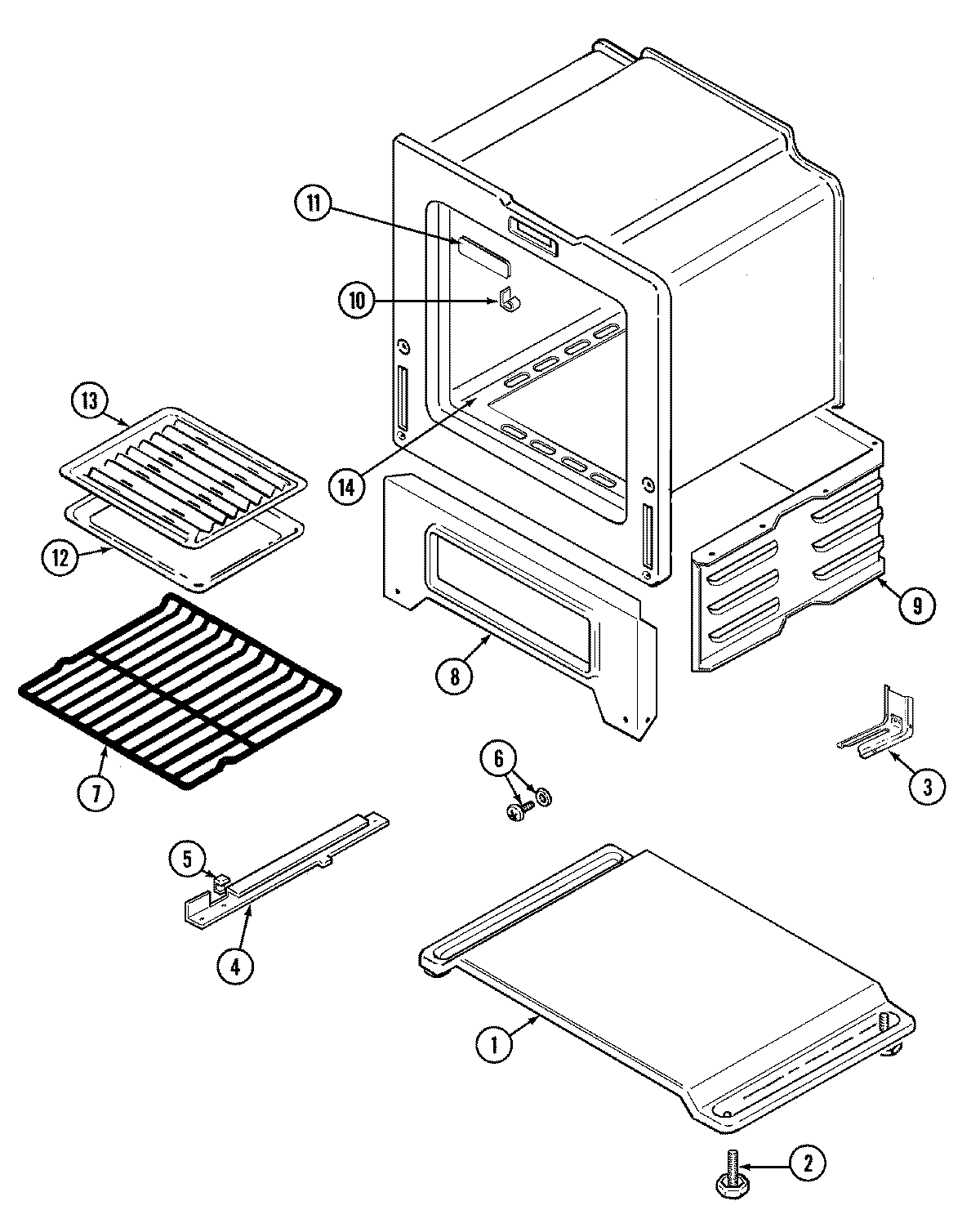

3100PPA-K 03 – OVEN/BASE (3100PPx,3100PPx-K)

3100PPA-K 03 – OVEN/BASE (3100PPx,3100PPx-K)

Written by

in

3100PPA-K 03 – OVEN/BASE (3100PPx,3100PPx-K)

Products

PositionProduct
1MAY 4003F024-80
1MAY 4003W028-80
2MAY 7101P306-60
3MAY 3801F218-51
3MAY 7101P289-60
4MAY 3404F021-51
4MAY 3404F018-51
5MAY 8016P010-60
6WP74003976 Whirlpool Screw
7MAY 7801P036-60
8MAY 2201F073-19
9MAY 4016F039-45
10WP7112P004-60 Whirlpool Thermal Clip
11MAY 8114P335-60
12MAY Y3401F02019
13MAY Y3413F01619
14MAY 7101P290-60
14MAY 3601F229-45
14MAY 3804F010-50
14MAY 5504A001-19
