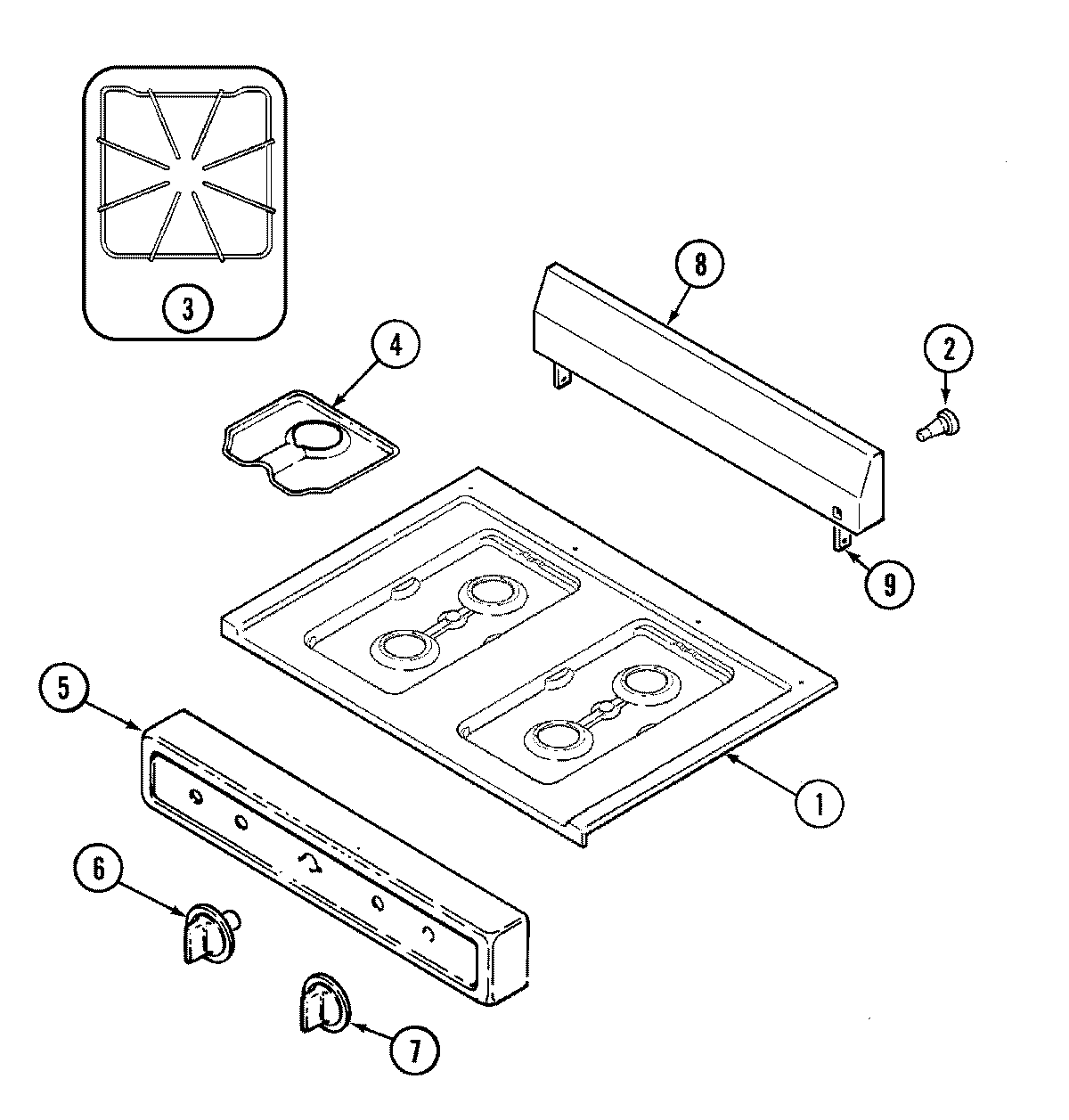

3100PTA-K 04 – TOP ASSEMBLY (3100PT)

3100PTA-K 04 – TOP ASSEMBLY (3100PT)

Written by

in

3100PTA-K 04 – TOP ASSEMBLY (3100PT)

Products

PositionProduct
1MAY 2001F098-84
2SPACER, HINGE (MAIN TOP)
3MAY 2003W026-00
4MAY 5401A433-60
5MAY 7101P311-60
5MAY 2616F085-09
5MAY 7118P015-60
6MAY 7731P085-60
7WP7711P135-60 Whirlpool Knob
8MAY 2601W349-09
9MAY 7101P290-60
9MAY 3801F242-51
9MAY 3801F243-51
10MAY 8113P042-60
10MAY 16000329
