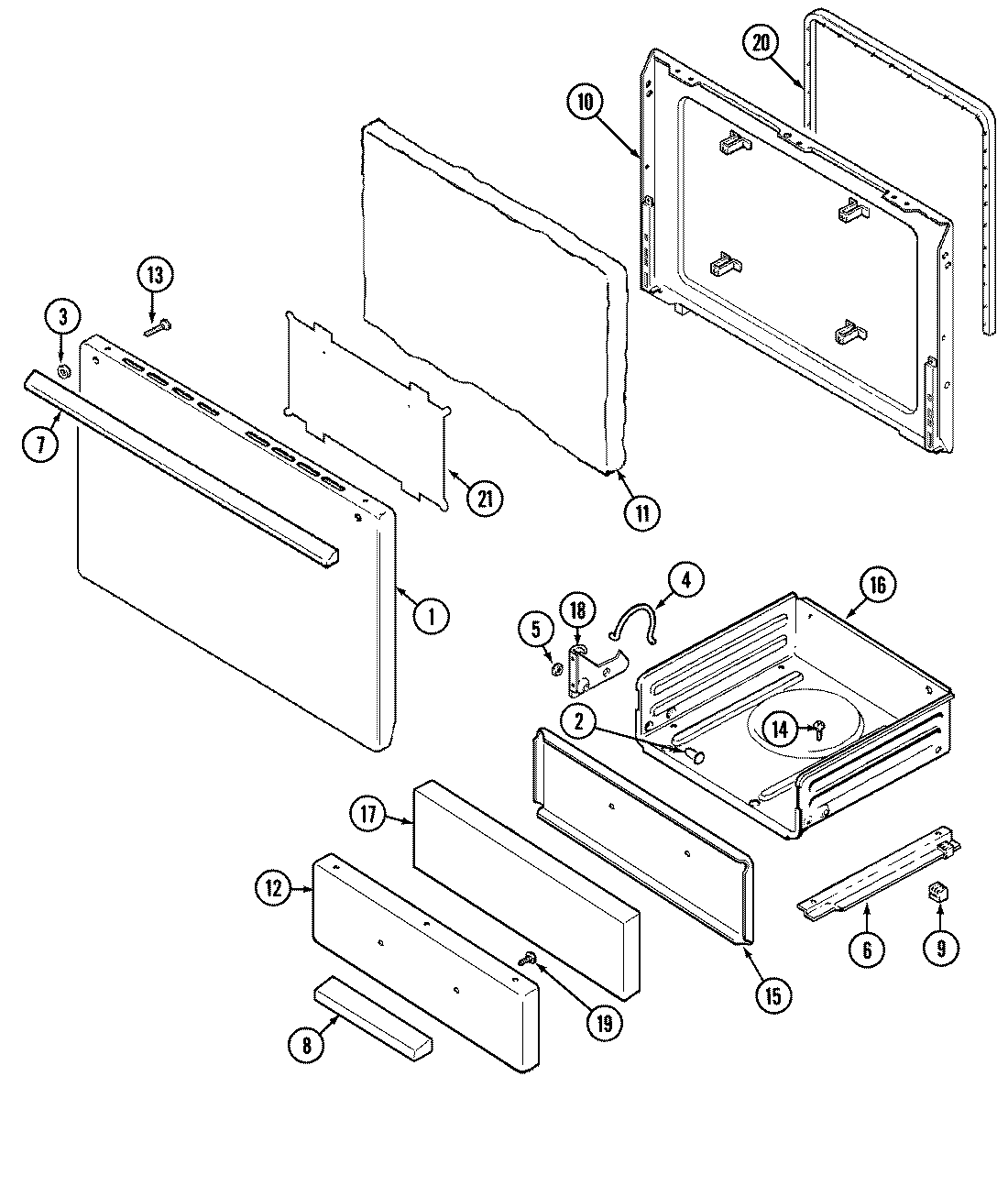

3100PTW-KL 02 – DOOR/DRAWER

Products

Position	Product
1	PANEL, DOOR (WHT)
2	MAY 7113P012-60
3	MAY 8010P084-60
4	MAY 7803P065-60
4	MAY 7803P064-60
5	MAY 7103P022-60
6	MAY 3404F023-51
6	MAY 3404F022-51
7	MAY 7701P030-60
7	WP2411F013-70 Whirlpool Door Handle
8	MAY 7701P012-60
8	MAY 74001820
9	MAY 8016P015-60
9	MAY 8016P011-60
10	MAY 2402W211-19
10	CLIP, DOOR
11	MAY 4804F050-60
12	MAY 2403F028-71
13	MAY 7101P080-60
15	MAY 2404F035-19
16	MAY 3407F012-19
17	MAY 4804F025-60
18	MAY 3418F080-51
18	MAY 3418F079-51
19	74002481 Whirlpool Screw
20	WP7212P043-60 Whirlpool Oven Door Seal Gasket
21	MAY 3601F250-51
21	SCREW
