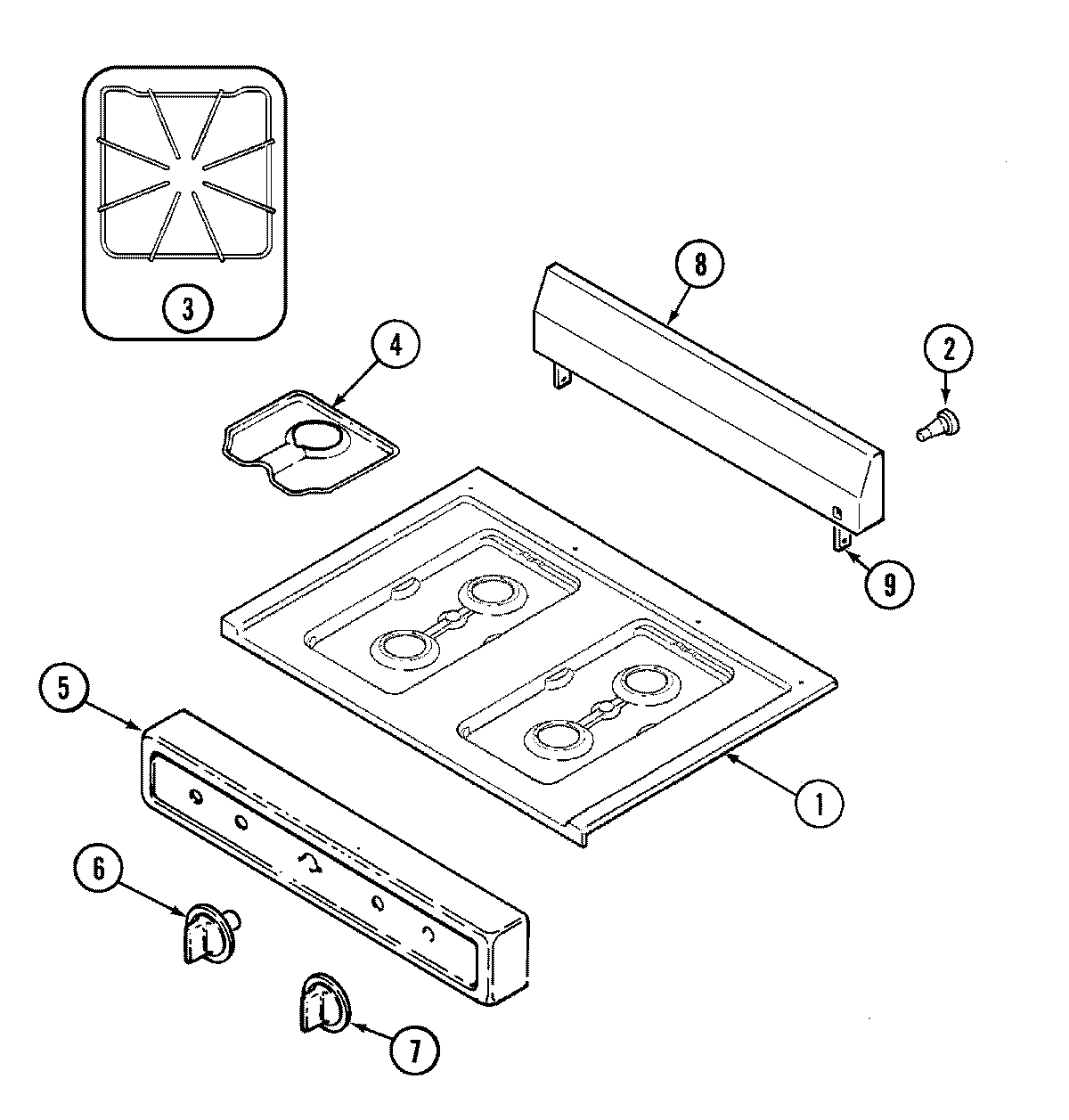

3100PTW-KL 05 – TOP ASSEMBLY

Products

PositionProduct
1MAY 2001F098-81
2SPACER, HINGE (MAIN TOP)
3MAY 2003W026-00
4MAY 5401A433-60
5MAY 7101P074-60
5MAY 7109P015-60
5MAY 2616F085-09
6MAY 7731P085-60
7WP7711P135-60 Whirlpool Knob
8MAY 2601W349-09
9SCREW
9MAY 3801F242-51
9MAY 3801F243-51
10MAY 16000329
10MAY 8113P042-60
