3100SPW-K 05 – TOP ASSEMBLY (3100SPx,3100SPx-K)

3100SPW-K 05 – TOP ASSEMBLY (3100SPx,3100SPx-K)

Written by

in

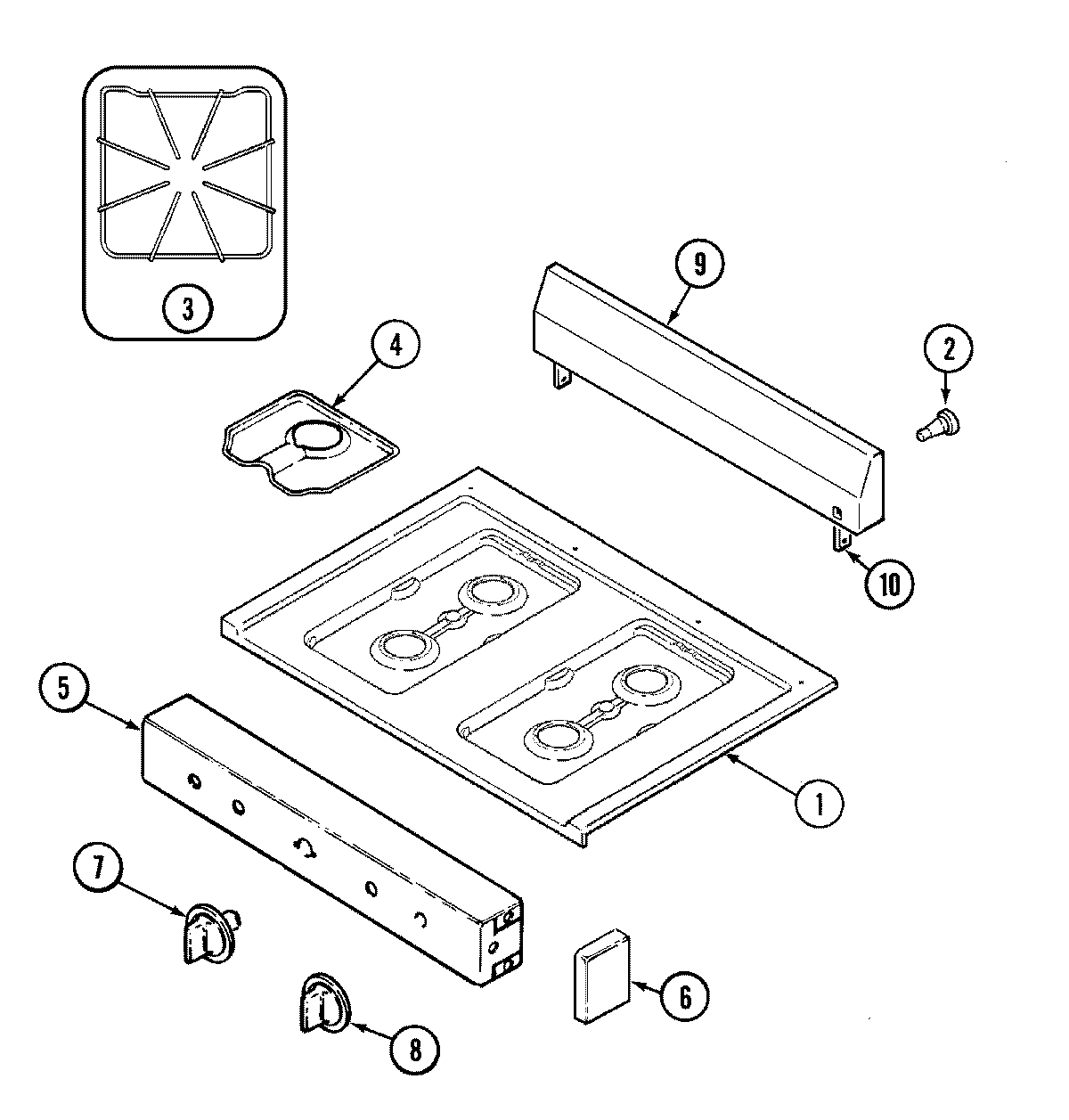

3100SPW-K 05 – TOP ASSEMBLY (3100SPx,3100SPx-K)

Products

Position	Product
1	MAY 2001F098-81
2	SPACER, HINGE (MAIN TOP)
3	MAY 2003W026-00
4	MAY 5401A433-60
5	MAY 2616F085-09
5	MAY 7118P015-60
5	MAY 7101P311-60
6	MAY 7112P092-60
6	MAY 7713P018-60
7	WP74002419 Whirlpool Thermal Knob
8	WP7711P135-60 Whirlpool Knob
9	MAY 2601W349-09
10	MAY 7101P290-60
10	MAY 3801F242-51
10	MAY 3801F243-51
11	MAY 16000329
11	MAY 8113P011-60
