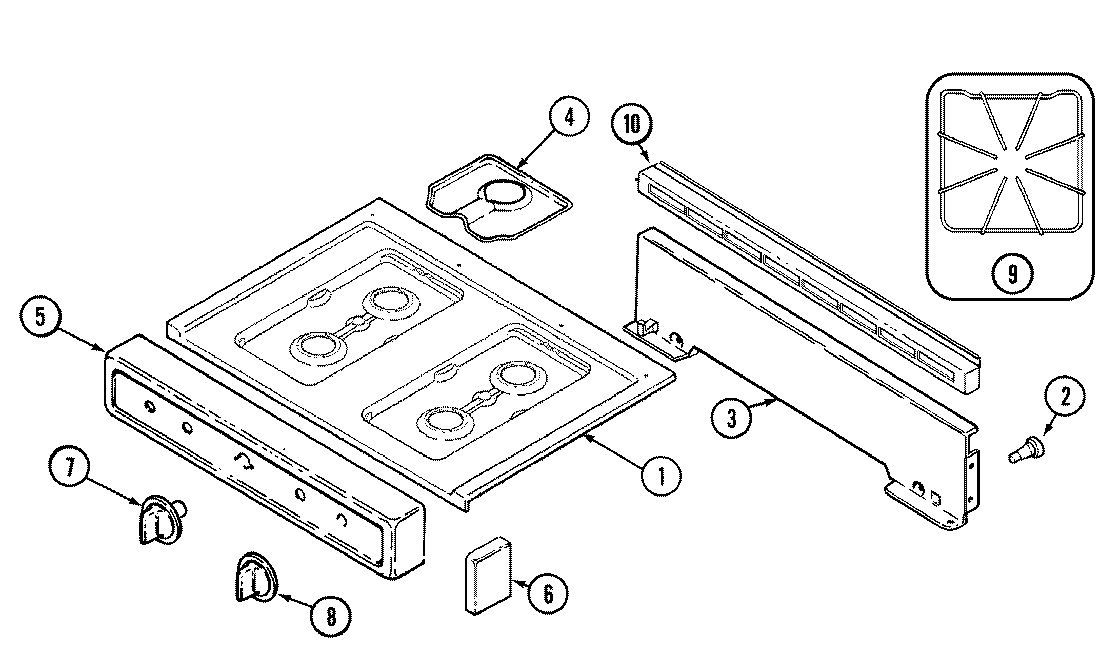

3101WPW 02 – CONTROL PANEL/TOP ASSEMBLY (3101WPx)

3101WPW 02 – CONTROL PANEL/TOP ASSEMBLY (3101WPx)

Written by

in

3101WPW 02 – CONTROL PANEL/TOP ASSEMBLY (3101WPx)

Products

Position	Product
1	MAY 2001F098-81
2	SPACER, HINGE (MAIN TOP)
3	MAY 2003W026-00
4	MAY 5401A433-60
5	MAY 2616F097-09
5	MAY 7118P015-60
5	MAY 7101P311-60
5	MAY 3604F198-51
6	MAY 7112P092-60
6	MAY 7713P018-60
7	WP7711P135-60 Whirlpool Knob
8	MAY 7731P065-60
9	MAY 7403P247-60
10	MAY 7602P109-60
10	MAY 7101P074-60
10	MAY 3801F253-51
11	MAY 7711P466-60
12	MAY 7902P034-60
13	MAY 2601W349-09
14	MAY 3801F242-51
14	MAY 3801F243-51
14	MAY 7101P290-60
15	MAY 8113P011-60
