31100PAA 02 – CONTROL PANEL/TOP ASSEMBLY – Aparts

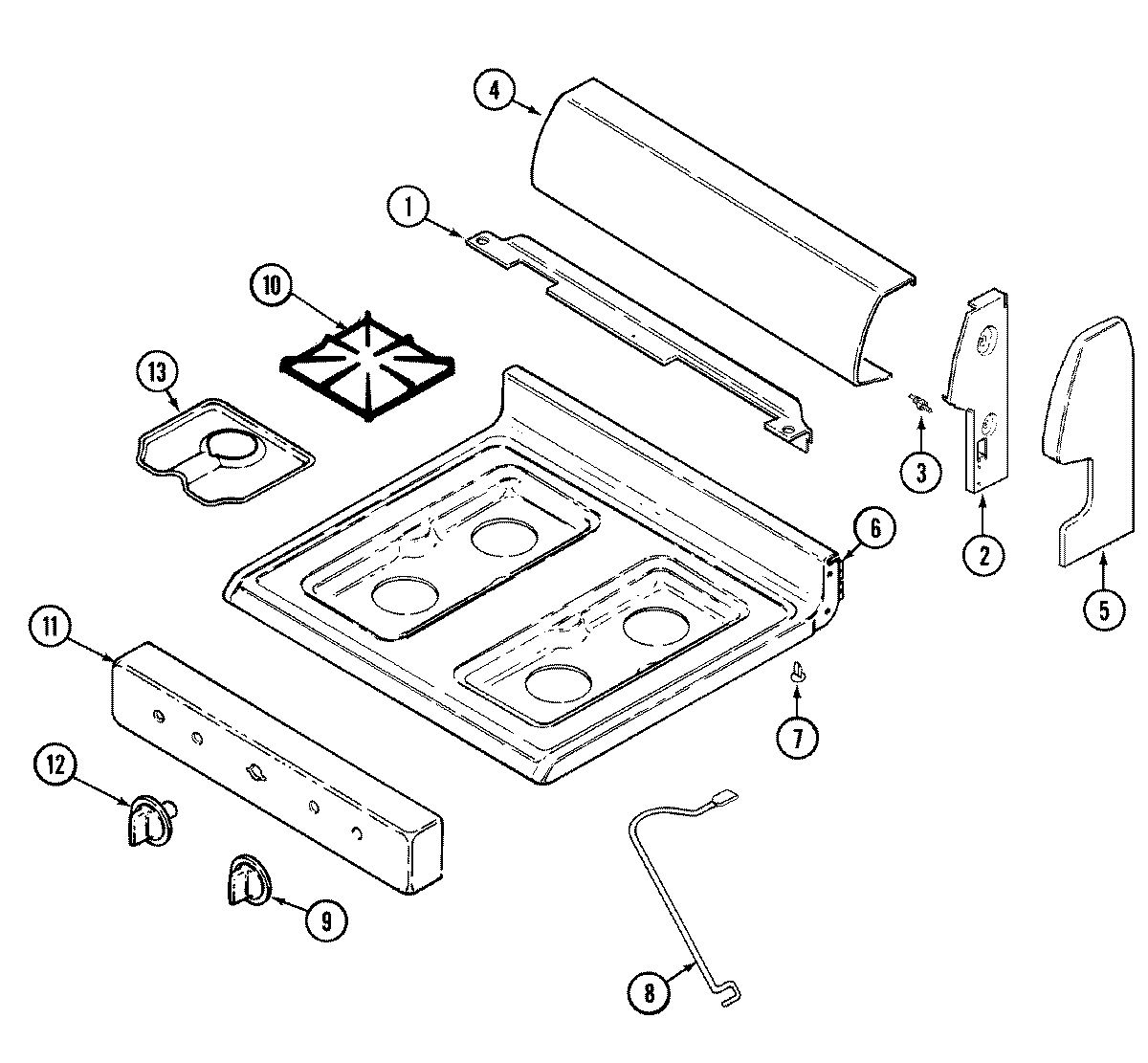

31100PAA 02 – CONTROL PANEL/TOP ASSEMBLY

Products

Position	Product
1	MAY 74002409
1	MAY 74002401
2	SCREW (8BX3/8-NI)
2	MAY 74002402
2	MAY 74002403
3	MAY 74002404
4	MAY 74002421
4	MAY 74001280
4	WP74009541 Whirlpool Screw Assembly
5	MAY 74002408
5	MAY 74002406
5	MAY 74002407
6	MAY 74002422
7	MAY 8016P015-60
8	MAY 74001170
9	WP74002353 Whirlpool Control Knob
10	WP2003X030-00 Whirlpool Burner Grate
11	MAY 74002411
12	WP74002419 Whirlpool Thermal Knob
13	MAY 5401A433-60
13	MAY 74002355
14	MAY 16010161
