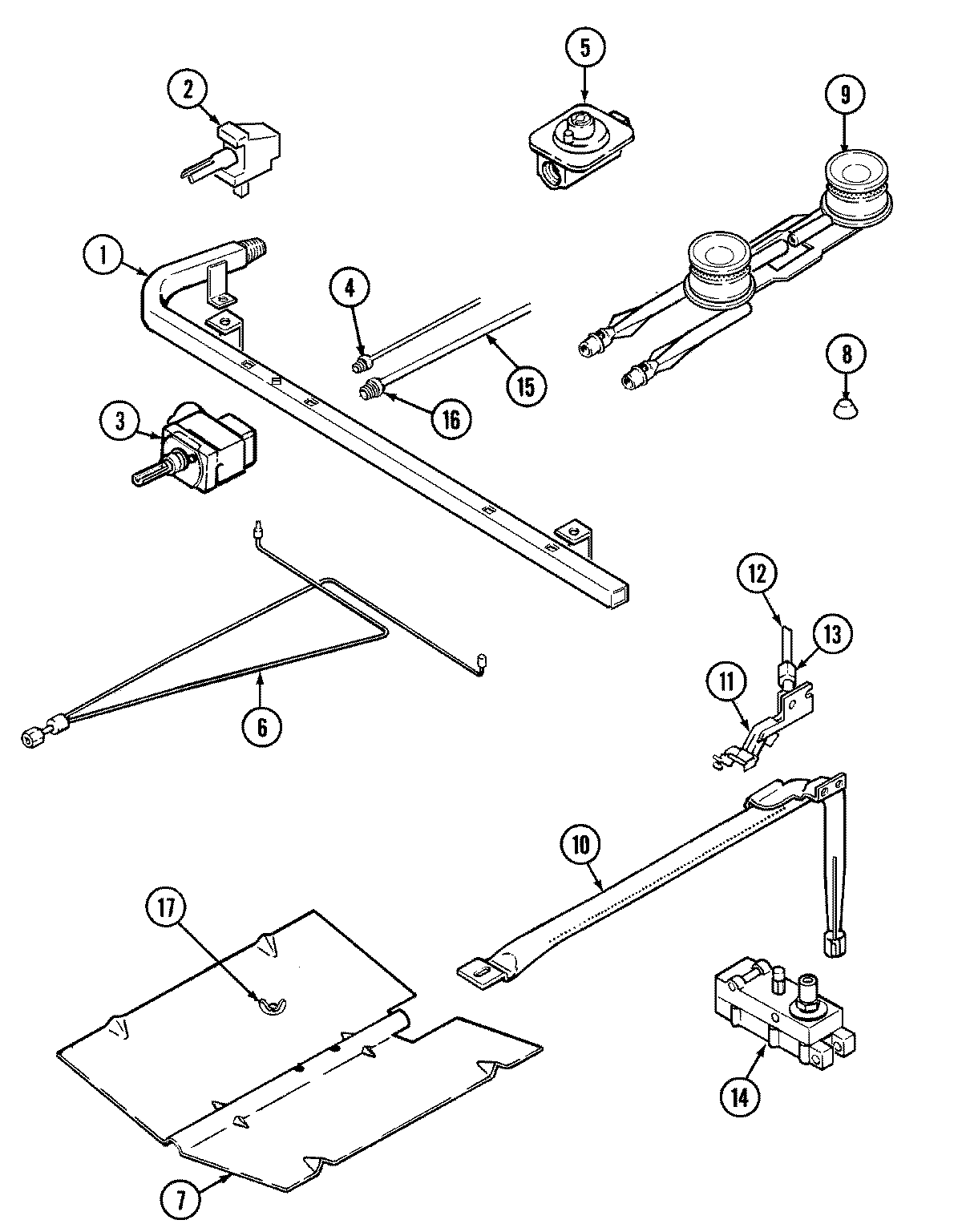

31100PAW 04 – GAS CONTROLS

Products

Position	Product
1	MAY 74002424
1	MAY 74010235
2	MAY 12002286
2	MAY 74002383
2	MAY 7101P044-60
3	MAY 74002425
3	WP74009857 Whirlpool Screw
3	WP74009917 Whirlpool Thermostat
3	MAY 7101P010-60
4	MAY 1555222
5	MAY 7510P002-60
6	MAY 7103P128-60
6	MAY 74009922
6	WPW10206112 Whirlpool Oven Pilot Burner
6	MAY 74002426
7	MAY 3601F229-45
8	MAY 74002435
9	MAY 74010149
9	SCREW (8BX3/8-NI)
9	MAY 74010148
9	MAY 74002392
10	SCREW
10	MAY 74002434
11	MAY 7432P068-60
11	WP4159193 Whirlpool Screw
12	MAY 3414F108-44
13	MAY 1555261K
14	MAY 74010135
14	MAY 74010136
14	MAY 74010137
14	MAY 74010138
14	SCREW No.10 X 2
14	MAY 74002428
15	MAY 74010133
15	MAY 12001100
15	MAY 74001062
16	MAY 1555251
17	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
17	NUT, WING
