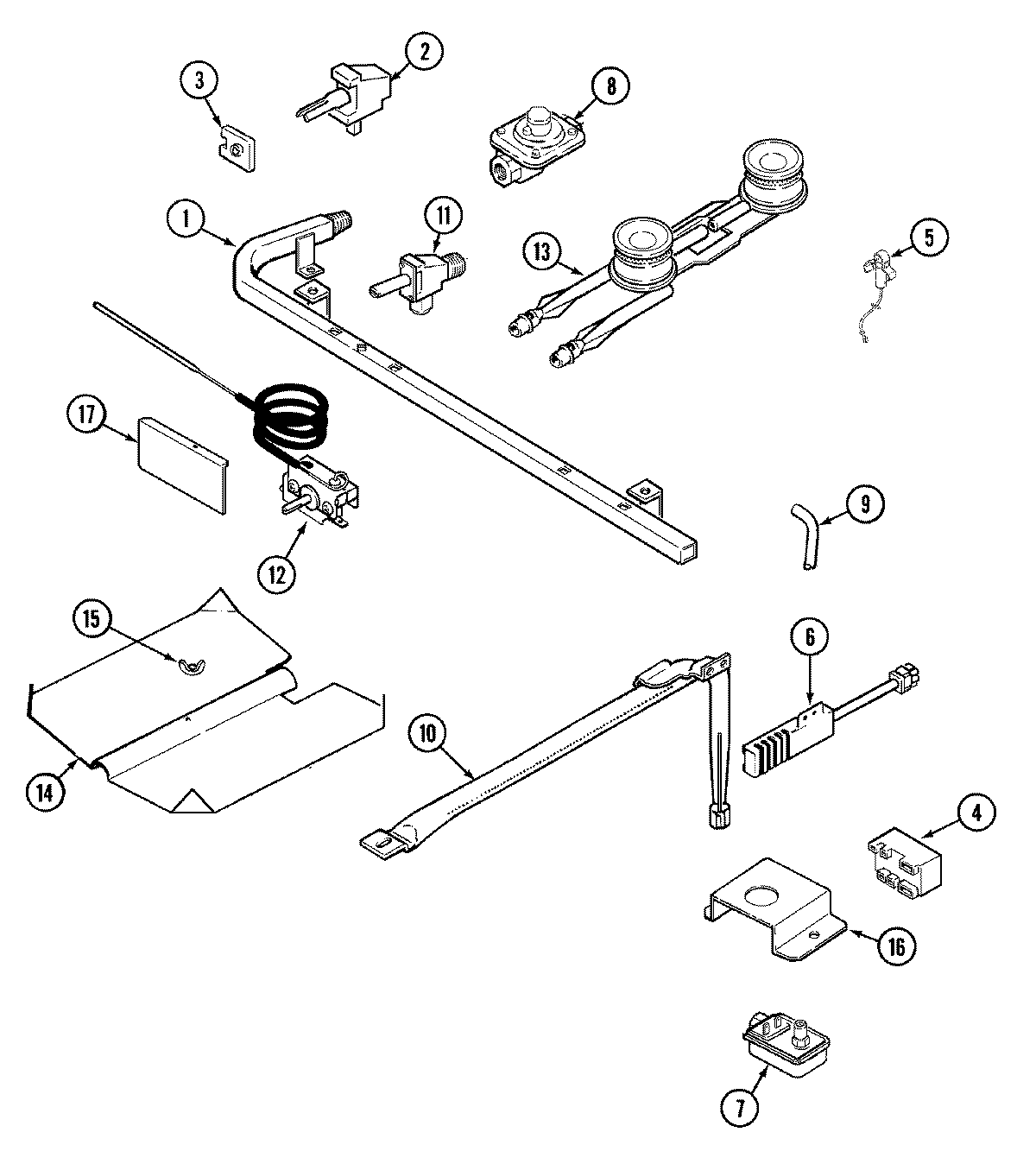

31101PAA 03 – GAS CONTROLS

Products

Position	Product
1	MAY 74003913
1	MAY 74002382
2	MAY 74002383
3	MAY 74002384
4	MAY 7431P006-60
5	MAY 74002385
5	MAY 74002386
6	MAY 7432P076-60
6	WP3351614 Whirlpool Screw
7	MAY 74002387
8	MAY 7510P049-60
9	MAY 74002388
10	MAY 3403D023-45
11	MAY 7101P044-60
11	12002280 Whirlpool Oven Valve Kit and Screw
12	MAY 7101P280-60
12	WP74002390 Whirlpool Oven Thermostat
13	MAY 74002392
13	SCREW (8BX3/8-NI)
14	MAY 74002393
15	NUT, WING
16	MAY 74002394
17	SCREW
17	MAY 74002391
18	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
