31101PAW 03 – DOOR/DRAWER

31101PAW 03 – DOOR/DRAWER

Written by

in

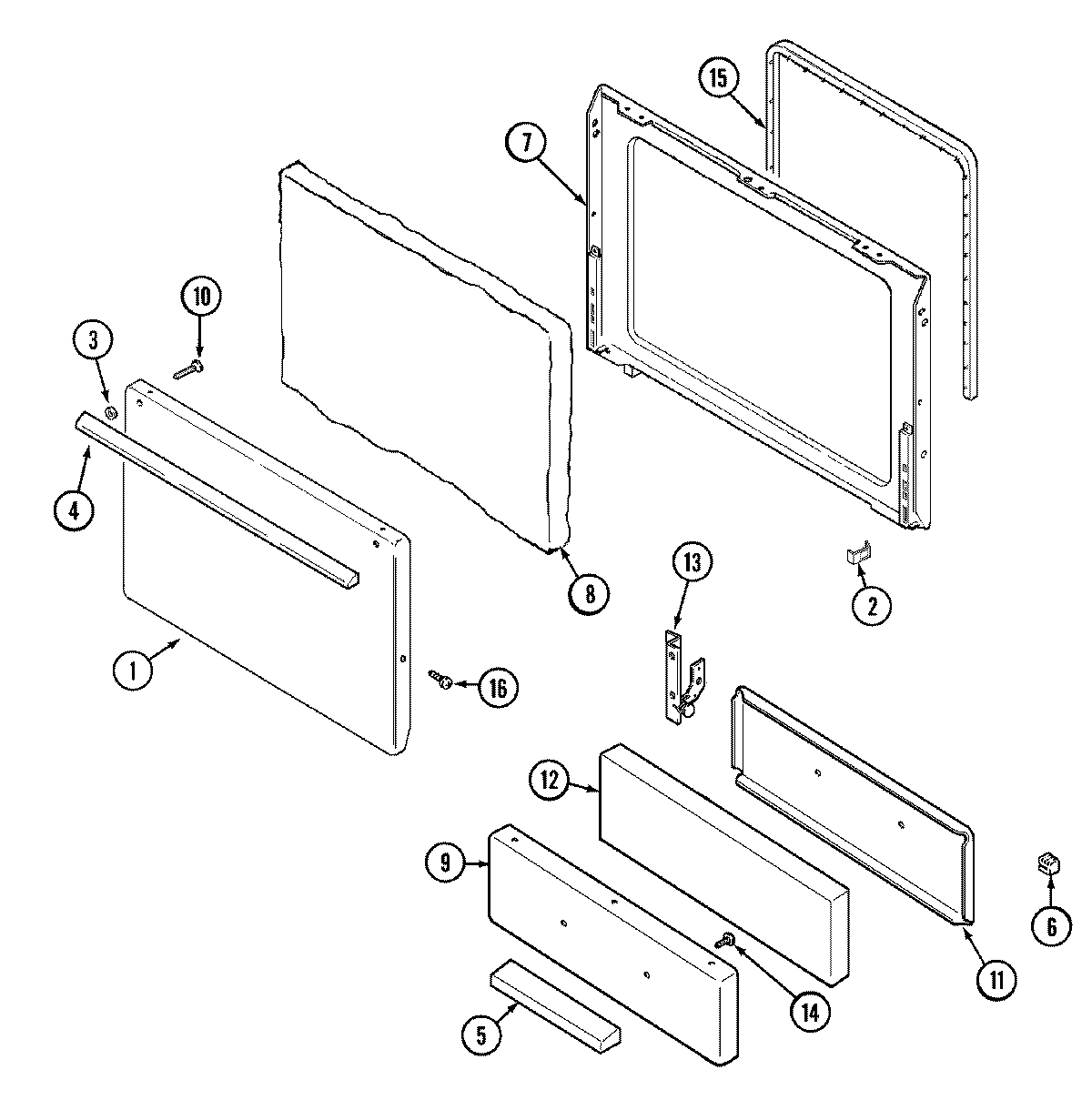

31101PAW 03 – DOOR/DRAWER

Products

PositionProduct
1MAY 74002282
1WP98008544 Whirlpool Screw Assembly
1MAY 74003137
2CLIP, DOOR
3MAY 8010P084-60
4WP2411F013-70 Whirlpool Door Handle
5MAY 74001820
6MAY 8016P015-60
7NUT, SNAP (ROUND-WHT)
7MAY 74002396
7MAY 74003240
8MAY 4804F025-60
8MAY 4804F028-60
9MAY 74001729
9SCREW
10MAY 7101P080-60
11MAY 74002397
12MAY 74001814
13MAY 74002398
1474002481 Whirlpool Screw
15WP7212P043-60 Whirlpool Oven Door Seal Gasket
