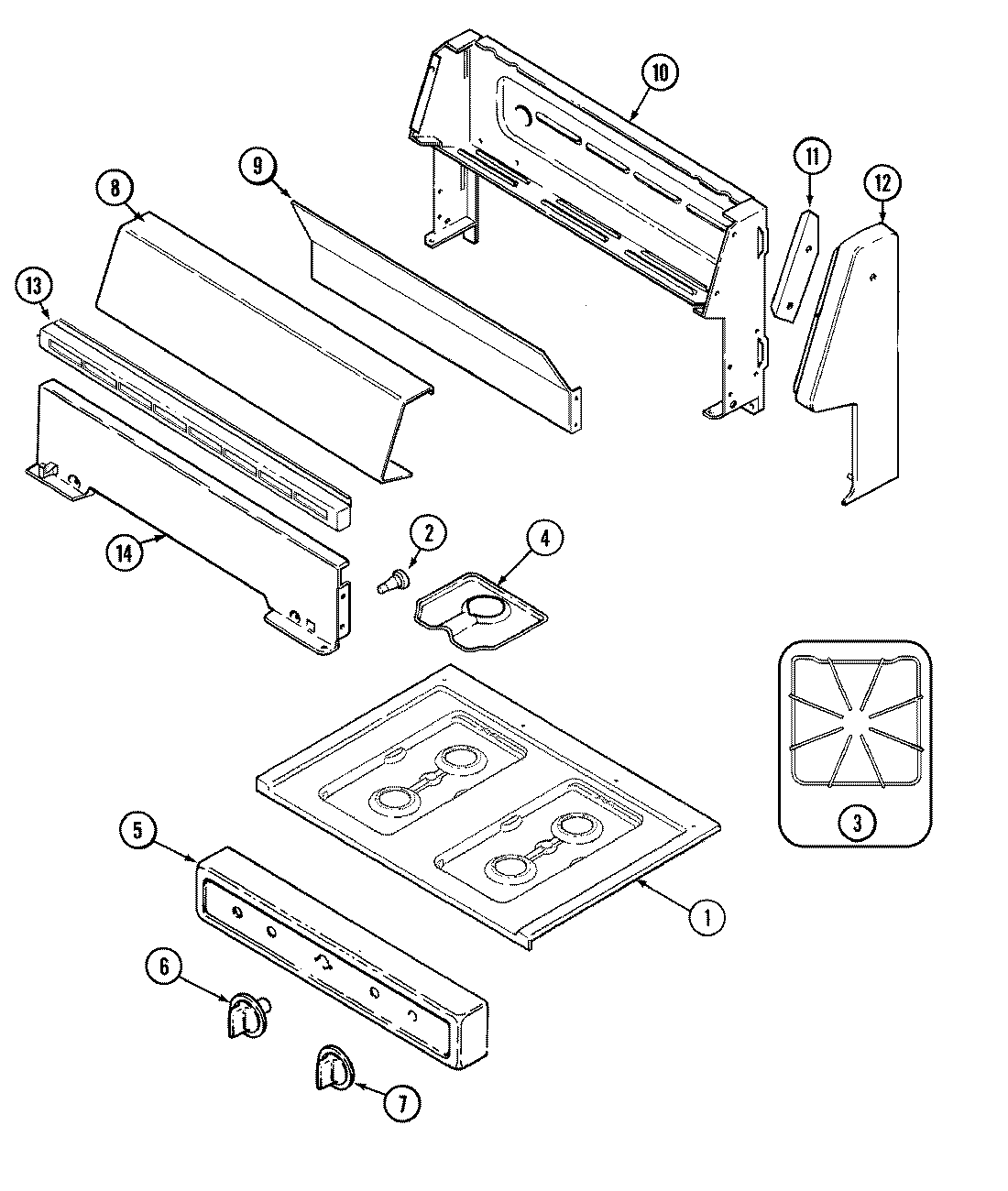

3110PPW-K 05 – TOP ASSEMBLY (3110PPx,3110PPx-K)

3110PPW-K 05 – TOP ASSEMBLY (3110PPx,3110PPx-K)

Written by

in

3110PPW-K 05 – TOP ASSEMBLY (3110PPx,3110PPx-K)

Products

PositionProduct
1MAY 2001F098-81
2SPACER, HINGE (MAIN TOP)
3MAY 2003W026-00
4MAY 5401A433-60
5MAY 2616F085-09
5MAY 7118P015-60
5MAY 7101P311-60
6MAY 7731P085-60
7WP7711P135-60 Whirlpool Knob
8MAY 7101P290-60
8MAY 3801F296-51
8MAY 2601F405-81
9MAY 3604F170-09
10MAY 4001F084-51
11MAY 3807F435-45
11MAY 3807F436-45
12MAY 7726P070-60
12MAY 7726P069-60
12WP98008545 Whirlpool Screw
12MAY 7101P032-60
13MAY 3608F043-09
14MAY 2612F037-81
15MAY 16000329
15MAY 8113P011-60
