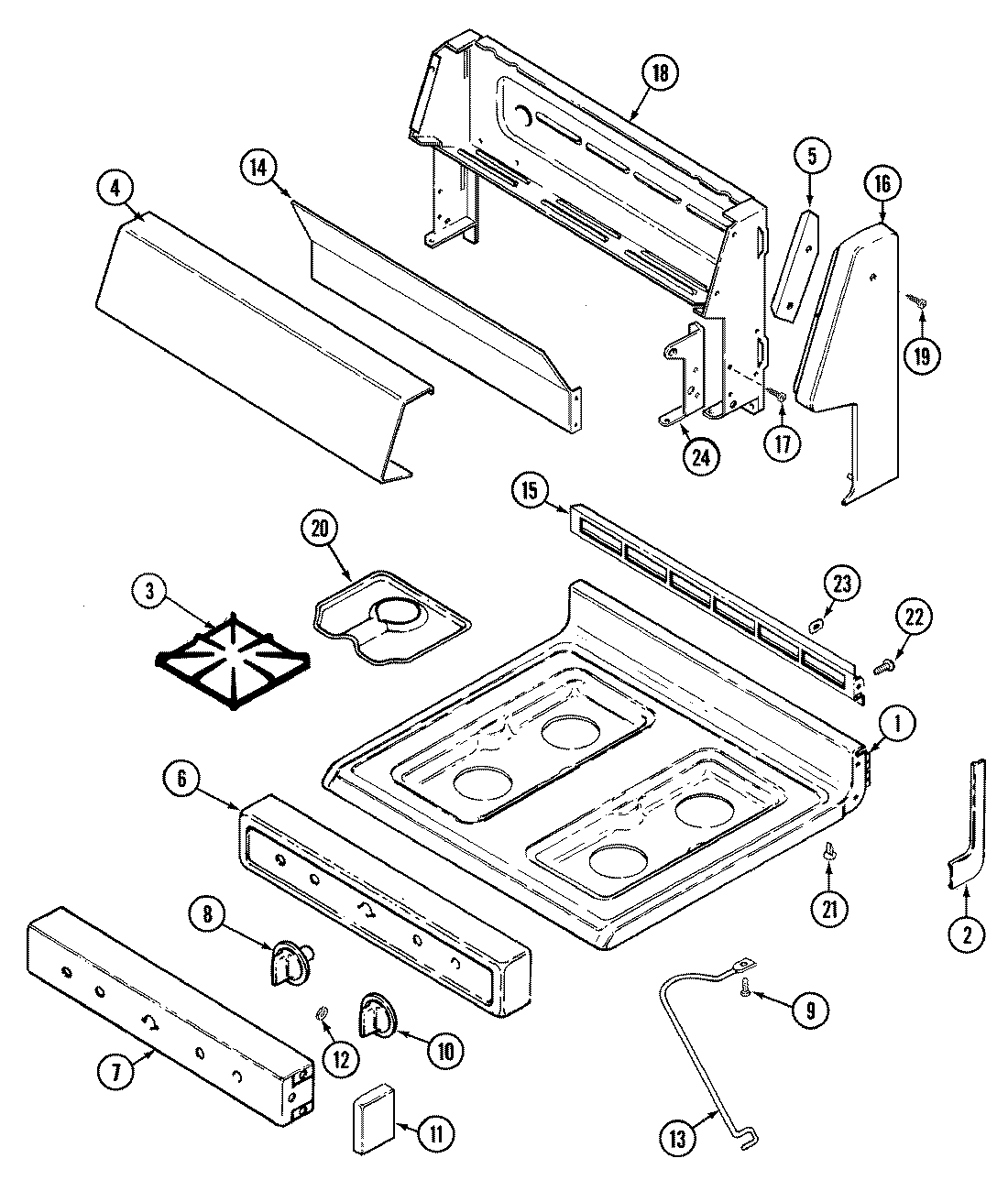

3110PRA-K 04 – TOP ASSEMBLY/CONTROL PANEL

Products

Position	Product
1	MAY 2001W081-84
2	MAY 7746P030-60
2	MAY 7746P031-60
3	MAY 2003W026-00
4	MAY 3801F296-51
4	MAY 2601F405-84
5	MAY 3807F436-45
5	MAY 3807F435-45
6	MAY 2616F085-09
7	MAY 7101P311-60
8	MAY 7731P085-60
9	MAY 7101P280-60
10	WP7711P135-60 Whirlpool Knob
12	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
13	MAY 7809P014-60
14	MAY 3604F188-09
15	MAY 3608F042-09
16	MAY 7726P052-60
16	MAY 7726P051-60
17	MAY 7118P015-60
18	MAY 4001F097-51
19	MAY 7101P032-60
20	MAY 5401A433-60
21	MAY 8016P013-60
22	SCREW (10ABX1/4P TR ZN)
23	MAY 7103P129-60
24	MAY 3418A087-34
24	MAY 3418A088-34
