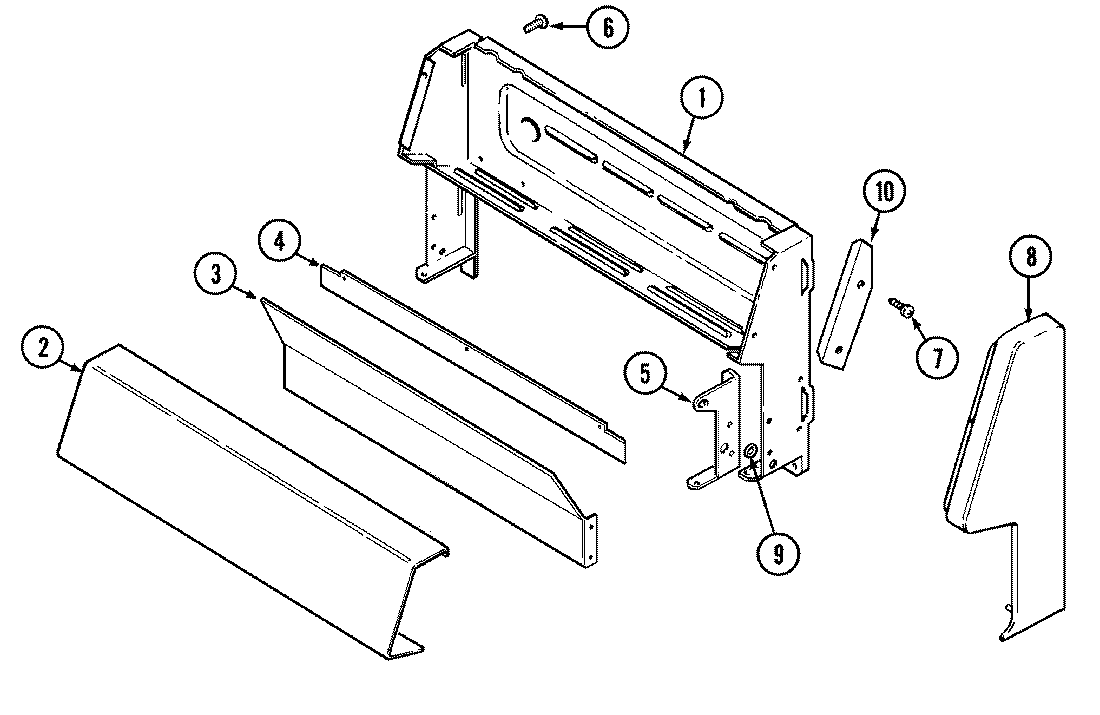

3110PTW-KL 02 – CONTROL PANEL

3110PTW-KL 02 – CONTROL PANEL

Written by

in

3110PTW-KL 02 – CONTROL PANEL

Products

PositionProduct
1MAY 4001F091-51
1MAY 4005F448-45
2MAY 2601F405-81
3MAY 3604F188-09
4MAY 8036P003-60
5MAY 8114P348-60
5MAY 3418D098-60
5MAY 3418D097-60
6SCREW
7WP98008545 Whirlpool Screw
7MAY 7101P317-60
8MAY 7726P052-60
8MAY 7726P051-60
9WP3195558 Whirlpool Nut
10MAY 3807F450-45
10MAY 3807F449-45
10SCREW (8BX3/8-NI)
11MAY 16000329
11MAY 8113P042-60
