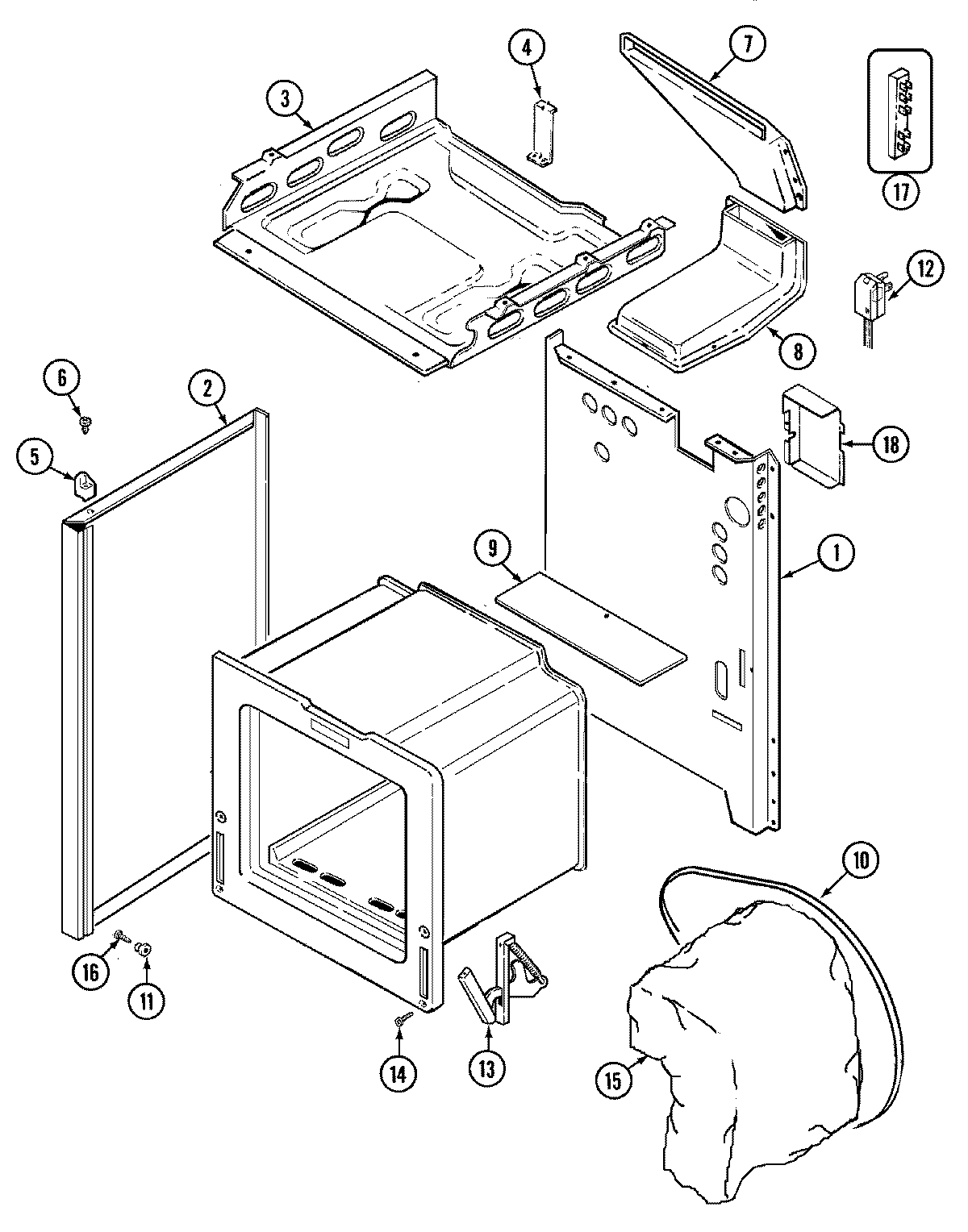

3115PUV 01 – BODY

3115PUV 01 – BODY

Written by

in

3115PUV 01 – BODY

Products

Position	Product
1	MAY 4002F211-80
1	MAY 8008P021-60
2	MAY 74001884
3	MAY 4011F230-80
4	MAY 3807F431-45
5	SPACER, MAIN TOP (LT)
5	SPACER, MAIN TOP (RT)
6	MAY 7101P313-60
7	MAY 4022W007-19
8	WP74003976 Whirlpool Screw
8	MAY 4006W113-45
9	MAY 3807F416-45
10	MAY 4820F001-59
11	MAY 8004P024-60
12	MAY 7402P043-60
13	MAY 7106P055-60
14	SCREW (10-24X5/16-NI)
15	MAY 4804F039-60
15	MAY 4804F044-60
16	MAY 74001449
17	MAY 7401P037-60
17	SCREW (8BX3/8-NI)
18	SCREW
18	MAY 4005F385-51
