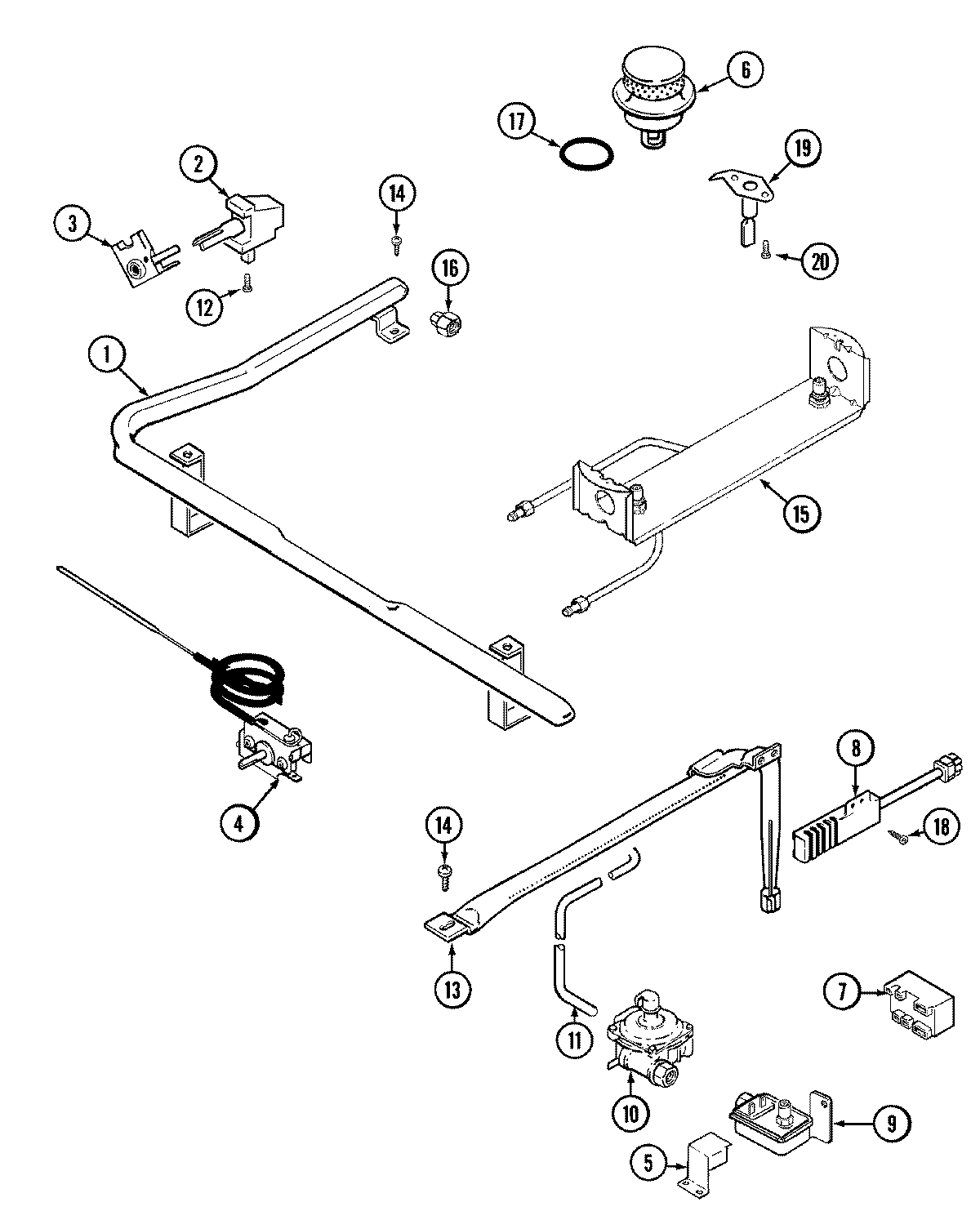

3115PUV 03 – GAS CONTROLS

Products

Position	Product
1	MAY 7513P105-60
2	MAY 7502P232-60
3	MAY 7403P284-60
4	MAY 7404P087-60
4	MAY 7101P280-60
5	MAY 4005F433-51
6	MAY 3412D018-26
7	MAY 3807F432-45
7	MAY 7431P027-60
7	SCREW (8BX3/8-NI)
8	MAY 7432P076-60
9	MAY 7501P137-60
10	MAY 7507P123-60
10	WP74006429 Whirlpool Regulator
11	MAY 3414F104-44
12	MAY 7101P044-60
13	MAY 3403D023-45
14	SCREW
15	WP5187M026-60 Whirlpool Surface Burner Orifice Holder
16	MAY 7103P130-60
17	MAY 7201P050-60
18	WP3351614 Whirlpool Screw
19	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
20	MAY Y707113
21	MAY 7111P017-60
22	MAY 5195D078-60
22	MAY 5140D038-60
22	MAY 5125A312-60
