31203PAA 01 – BODY

31203PAA 01 – BODY

Written by

in

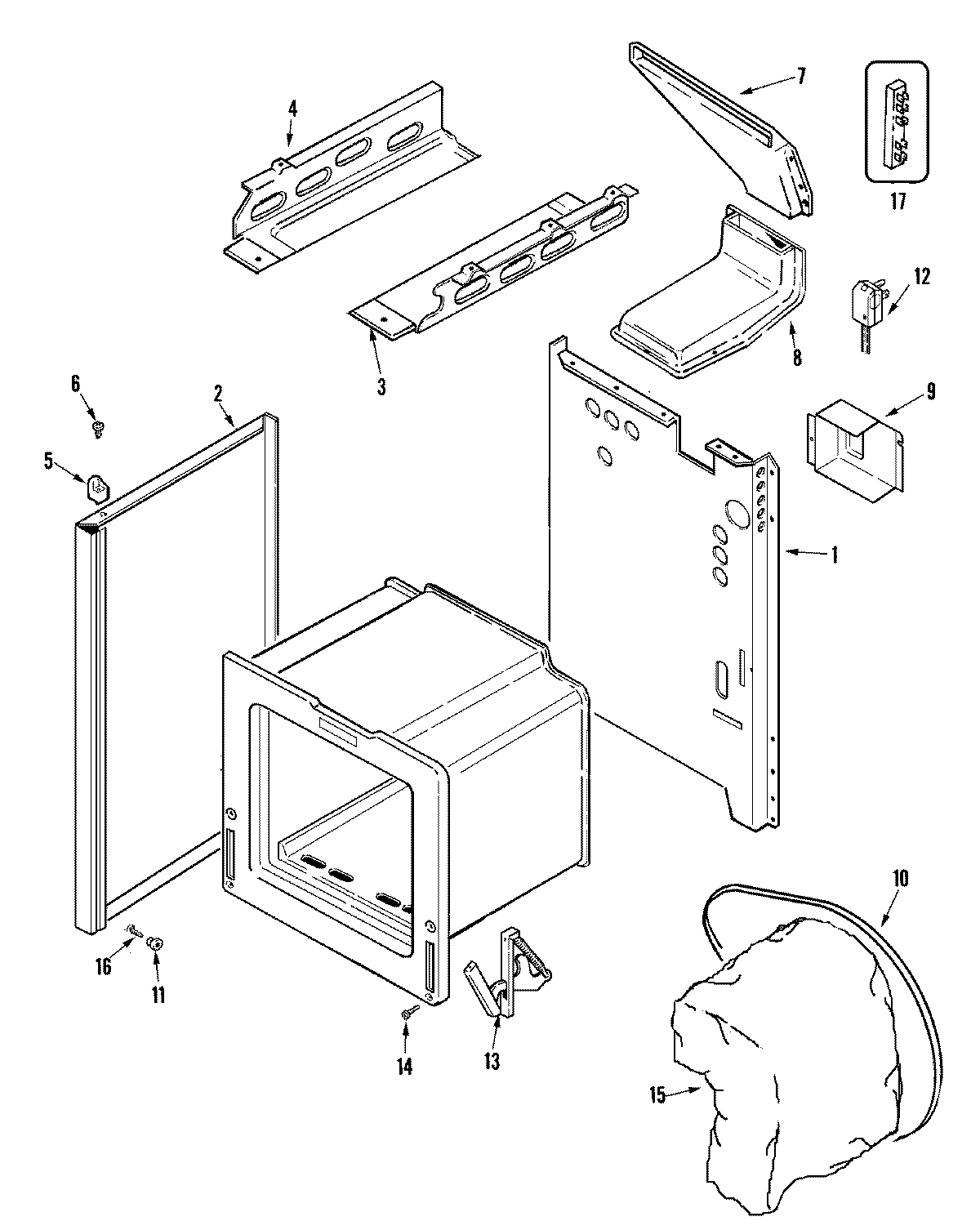

31203PAA 01 – BODY

Products

PositionProduct
1MAY 74002364
1MAY 8008P021-60
2MAY 74001885
3MAY 74002452
4MAY 74002453
5SPACER, MAIN TOP (LT)
5SPACER, MAIN TOP (RT)
6MAY 7101P313-60
7MAY 74002412
8MAY 74002367
8WP74003976 Whirlpool Screw
9SCREW
9MAY 74004591
10MAY 74002369
11MAY 8004P024-60
12MAY 7402P043-60
13W10876639 Whirlpool Door Hinge Assembly
14SCREW (10-24X5/16-NI)
15MAY 74002370
15MAY 74002371
16MAY 74001449
17MAY 7401P037-60
17SCREW (8BX3/8-NI)
