31211XAA 02 – CONTROL PANEL

31211XAA 02 – CONTROL PANEL

Written by

in

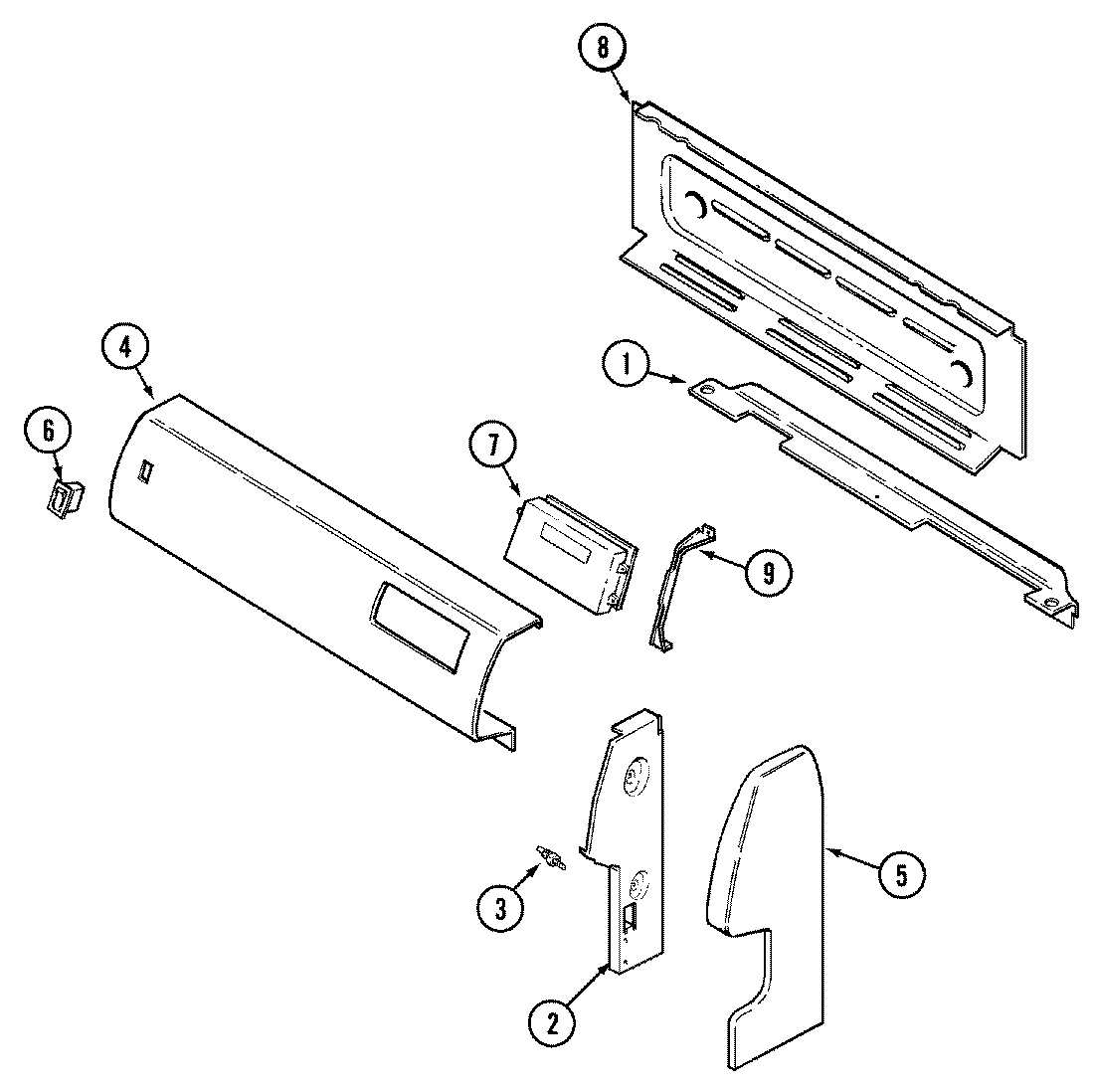

31211XAA 02 – CONTROL PANEL

Products

PositionProduct
1MAY 74002401
2SCREW (8BX3/8-NI)
2MAY 74002402
2MAY 74002403
3MAY 74002404
4MAY 74002498
4MAY 74002610
5MAY 74002432
5SCREW (8ABX1/2“-BLK)
5MAY 74002407
5MAY 74002406
6MAY 7403P102-60
7W10799767 Whirlpool Clock Timer
7MAY 7602P118-60
7WPY706189 Whirlpool Stove Screw
8SCREW
8MAY 74002450
9MAY 74002449
9WP59002061 Whirlpool Microwave Screw
10MAY 74002477
11MAY 74002355
