31213SAA 04 – GAS CONTROLS
Written by
in

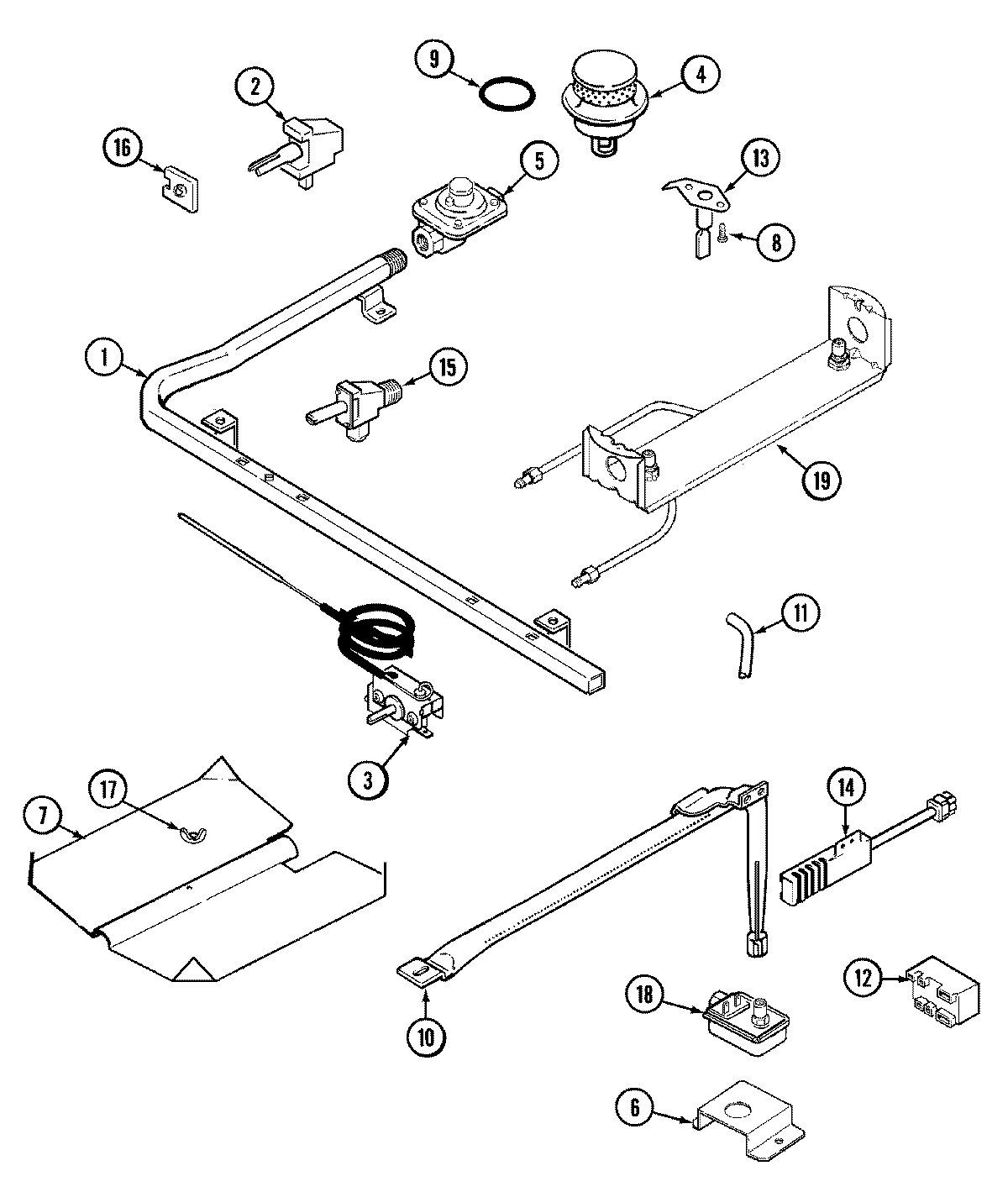

31213SAA 04 – GAS CONTROLS
Products
Position
Product
1
MAY 74002454
2
WP8273096 Whirlpool Screw
2
MAY 74002455
3
MAY 7101P280-60
3
WP74002390 Whirlpool Oven Thermostat
4
MAY 3412D018-09
4
WP3412D024-09 Whirlpool Oven Burner Head
5
MAY 7510P049-60
6
MAY 74002394
7
MAY 74002393
8
MAY Y707113
9
MAY 7201P050-60
10
MAY 74002434
10
SCREW
11
MAY 74002456
11
MAY 1555251
12
MAY 7431P027-60
12
MAY 74003288
13
74004053 Whirlpool Range Cooktop Top Burner Electrode Spark Igniter
14
WP3351614 Whirlpool Screw
14
MAY 7432P076-60
15
MAY 7101P044-60
15
12002280 Whirlpool Oven Valve Kit and Screw
16
MAY 74002384
17
NUT, WING
18
MAY 74002387
19
WP5187M026-60 Whirlpool Surface Burner Orifice Holder
20
MAY 74002363
20
MAY 74002457
20
MAY 74002362
21
NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
←
MFW2055YEM02 10 – OPTIONAL PARTS
MFX2570AEM3 11 – OPTIONAL PARTS (NOT INCLUDED)
→
