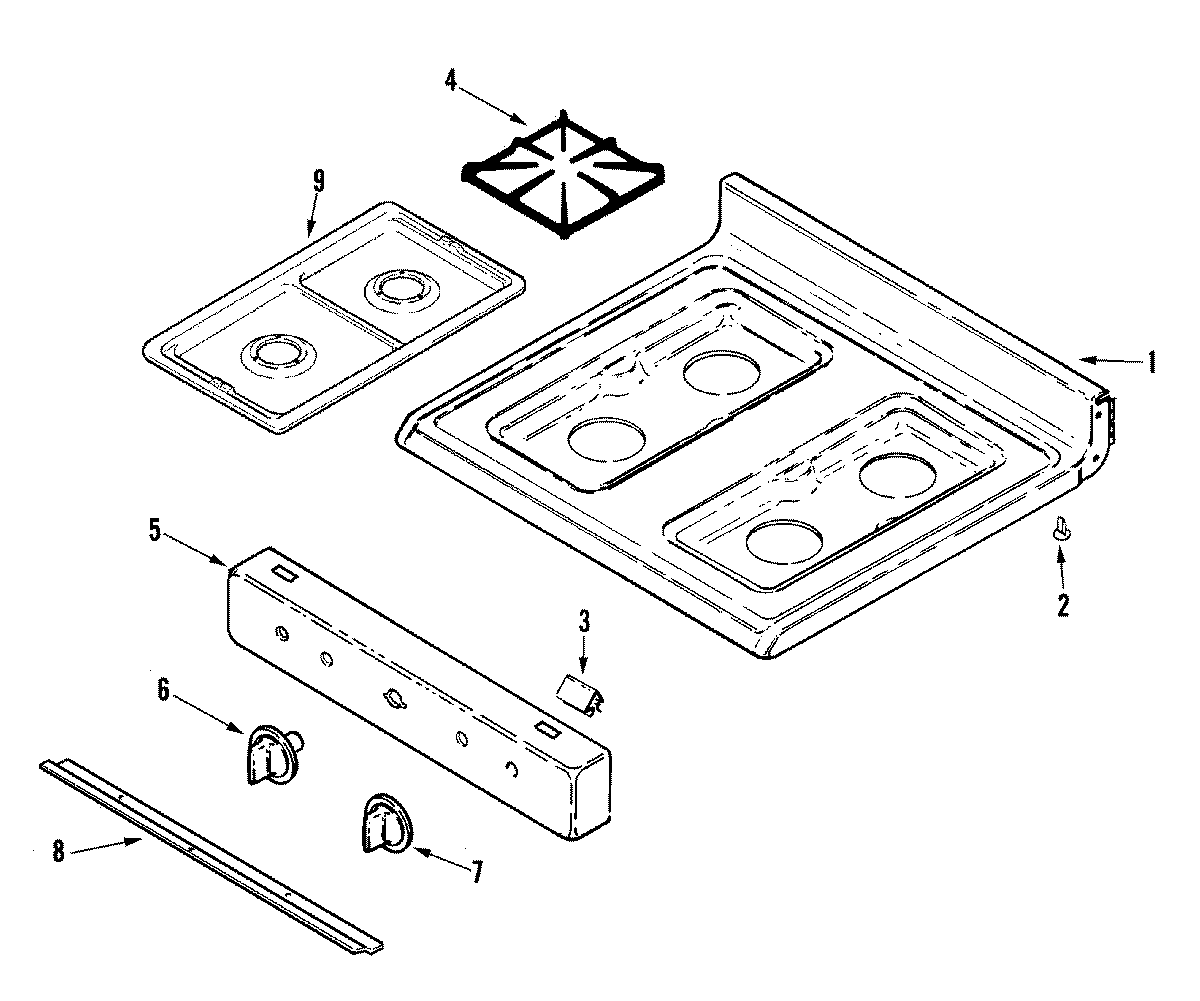

31213WAA 06 – TOP ASSEMBLY

31213WAA 06 – TOP ASSEMBLY

Written by

in

31213WAA 06 – TOP ASSEMBLY

Products

PositionProduct
1MAY 74002441
2MAY 8016P015-60
3MAY 7112P087-60
4MAY 2003W026-00
5MAY 7101P074-60
5MAY 7109P015-60
5SCREW (8BX3/8-NI)
5MAY 74002411
6MAY 74002443
7MAY 74002445
8MAY 74002447
8SCREW
9MAY 5401A452-60
