3121XRA-UX 01 – BODY/OVEN – Aparts

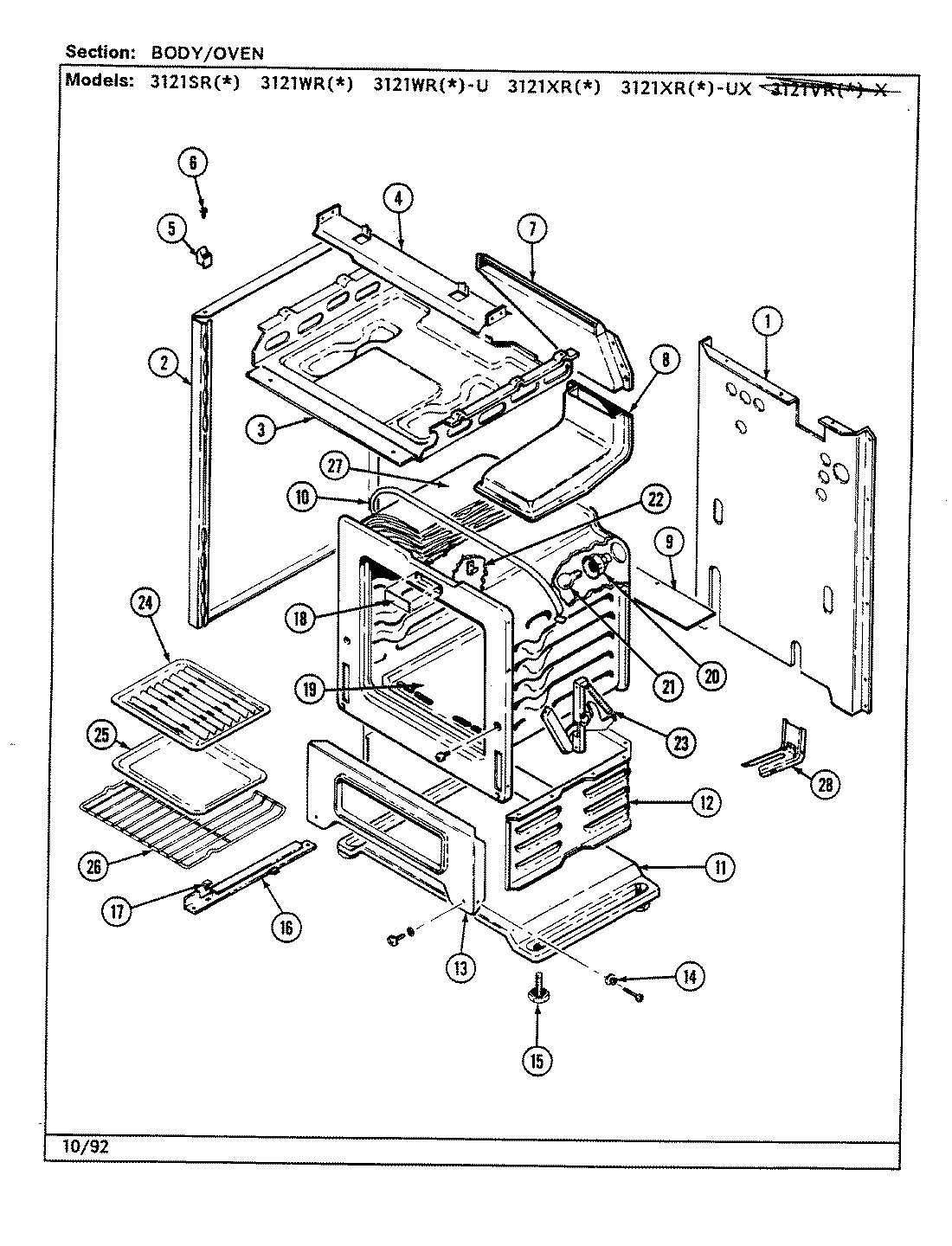

3121XRA-UX 01 – BODY/OVEN

Products

Position	Product
1	MAY 4005F385-51
1	MAY 4002F138-80
2	MAY 2618F085-74
3	MAY 4011F209-80
4	MAY 3807F411-51
5	SPACER, MAIN TOP (LT)
5	SPACER, MAIN TOP (RT)
6	MAY 7118P013-60
7	MAY 4022W005-19
8	WP74003976 Whirlpool Screw
8	MAY 4006W113-45
9	MAY 3807F416-45
10	MAY 4820F001-59
11	MAY 4003F024-80
12	MAY 4016F039-45
13	MAY 2201F073-19
14	MAY 8004P024-60
14	MAY 7101P300-60
15	MAY 7101P306-60
16	MAY 3404F018-51
16	MAY 3404F021-51
17	MAY 8016P010-60
18	MAY 8114P335-60
19	MAY 3601F229-45
19	MAY 3804F010-50
19	MAY 5504A001-19
19	MAY 7101P290-60
20	WP7407P182-60 Whirlpool Lamp
21	MAY 7407P026-60
22	WP7112P004-60 Whirlpool Thermal Clip
23	MAY 7106P032-60
23	SCREW, HINGE
24	MAY Y3413F01619
25	MAY Y3401F02019
26	MAY 7801P036-60
27	MAY 4804F017-60
27	MAY 4804F018-60
28	MAY 7402P043-60
28	MAY 7101P289-60
28	MAY 3801F218-51
28	MAY 5125A312-60
28	MAY 5185D250-60
28	MAY 5195D078-60
