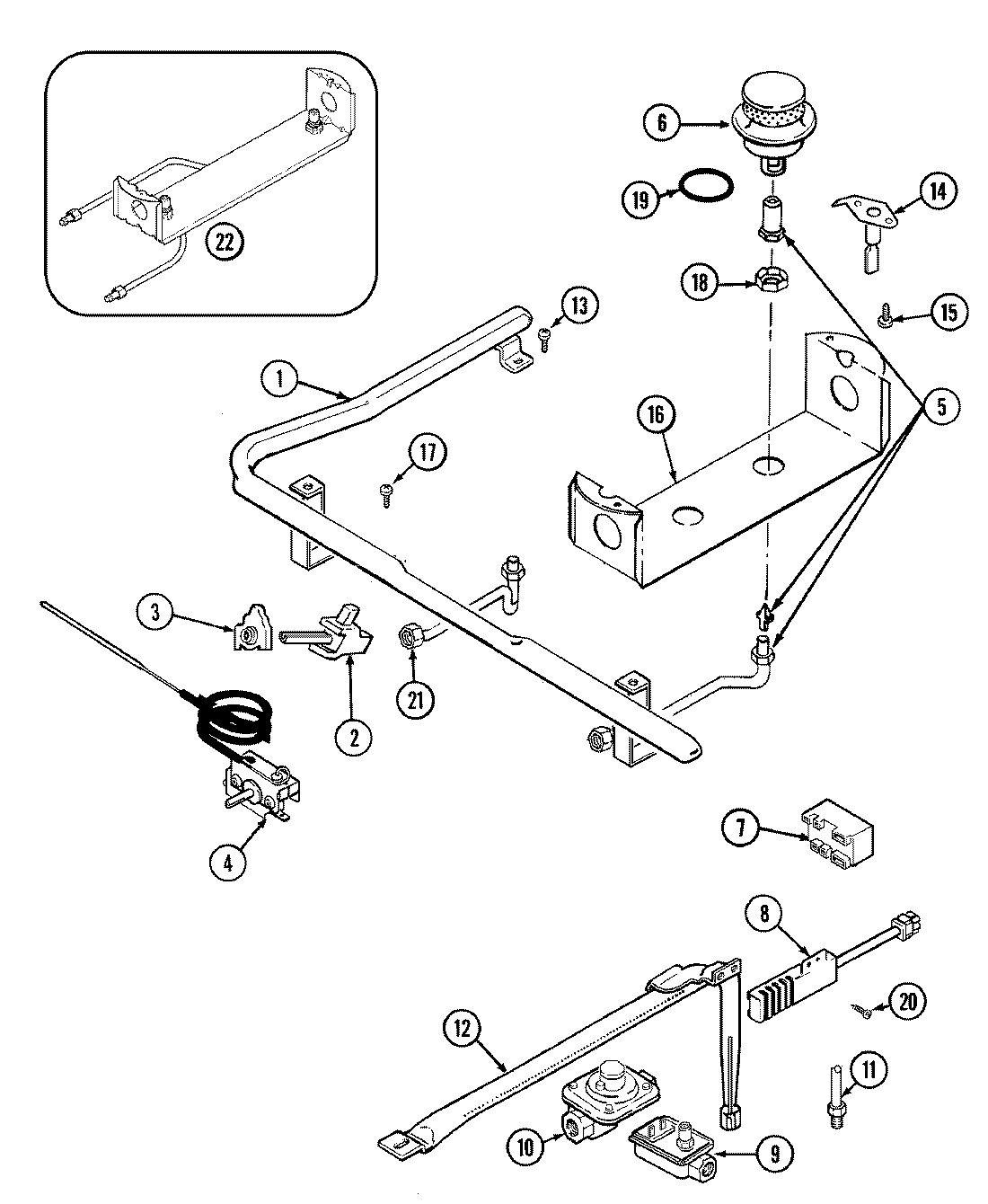

3126STW 04 – GAS CONTROLS

Products

Position	Product
1	MAY 7513P120-60
2	MAY 7502P232-60
3	MAY 7403P284-60
4	MAY 4005F334-51
4	MAY 7101P280-60
4	MAY 7404P087-60
5	MAY 7507P137-60
6	MAY 3412D018-09
7	MAY 3807F432-45
7	MAY 7431P021-60
7	MAY 7431P027-60
8	MAY 7432P067-60
9	MAY 7103P130-60
9	MAY 7501P137-60
10	MAY 8020P007-60
10	MAY 7510P063-60
10	MAY 7507P123-60
11	MAY 3414F104-44
12	MAY 3403D023-45
13	MAY 7101P290-60
14	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
15	MAY 7101P315-60
16	MAY 3807F451-45
17	MAY 7101P296-60
18	MAY 7103P119-60
19	MAY 7201P050-60
20	SCREW (10-24X5/16-NI)
21	MAY 7507P115-60
22	WP5187M026-60 Whirlpool Surface Burner Orifice Holder
23	MAY 5185D250-60
23	MAY 5140D038-60
23	MAY 5125A312-60
