31315VBV 04 – GAS CONTROLS
Written by
in

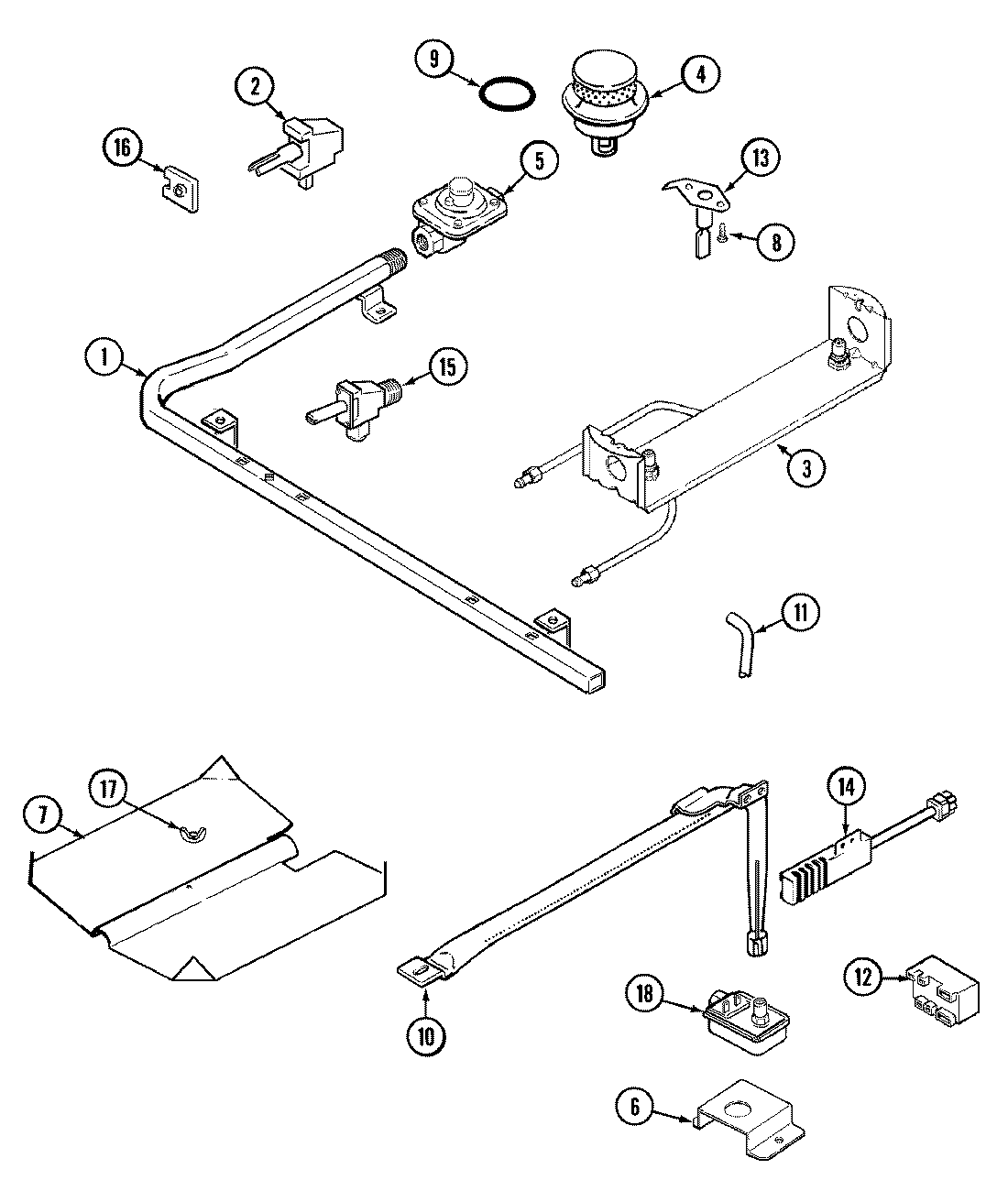

31315VBV 04 – GAS CONTROLS
Products
Position
Product
1
MAY 74002531
2
MAY 7502P252-60
2
WP8273096 Whirlpool Screw
2
MAY 74002532
3
MAY 74002534
3
MAY 74002535
4
MAY 3412D018-26
5
MAY 7510P049-60
6
MAY 74002394
7
MAY 74002393
8
MAY Y707113
9
MAY 7201P050-60
10
SCREW
10
MAY 74002434
11
MAY 74002456
11
MAY 1555251
12
8215557 Whirlpool Gas Stove Range Oven Cooktop Spark Module
12
MAY 74003288
14
WP3351614 Whirlpool Screw
14
MAY 7432P076-60
15
12002280 Whirlpool Oven Valve Kit and Screw
15
MAY 7101P044-60
16
MAY 74002533
16
WP7403P287-60 Whirlpool Igniter Switch
17
NUT, WING
18
MAY 74002387
19
MAY 74002363
19
MAY 74002457
19
MAY 74002362
20
NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
←
