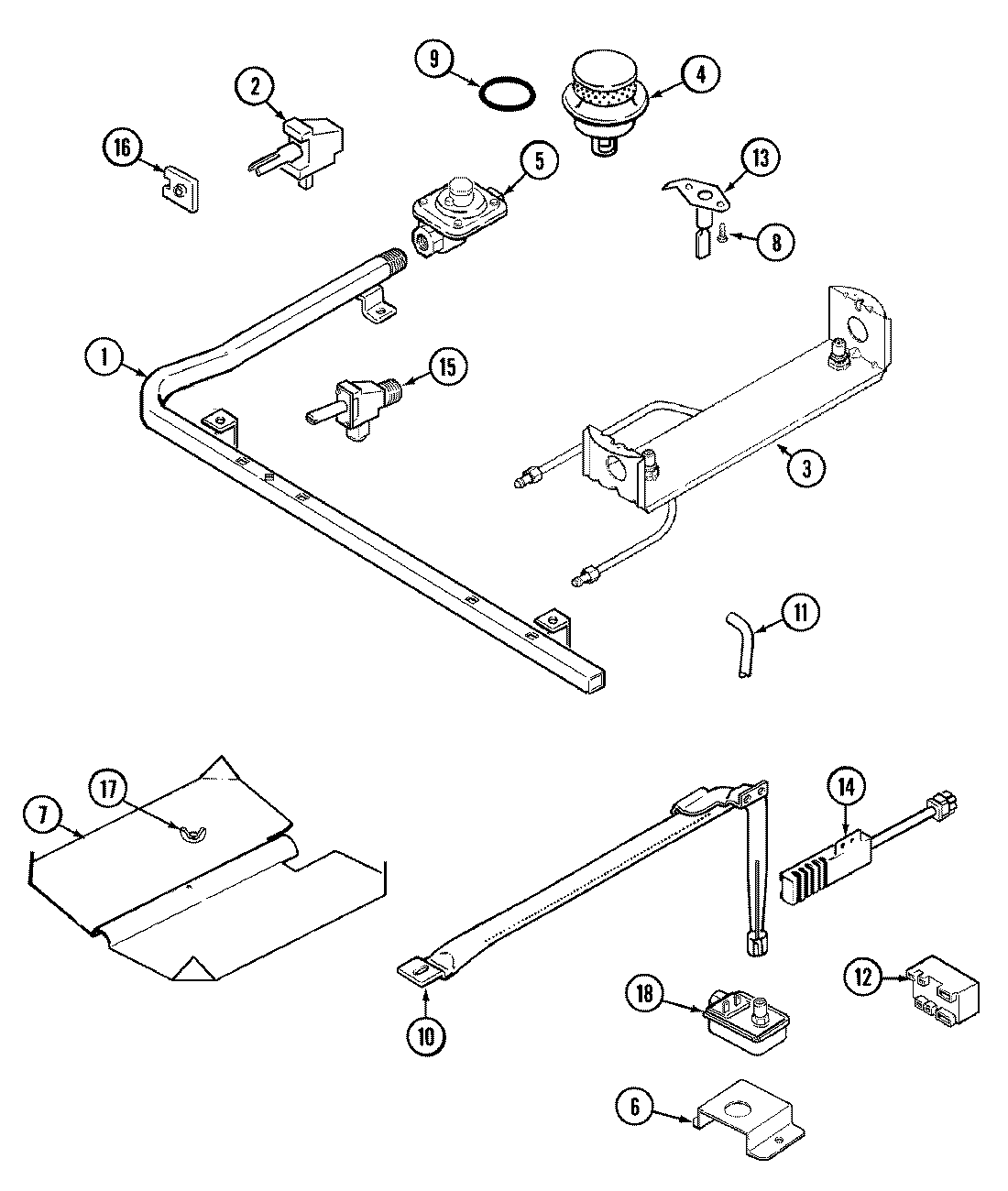

31315XBA 04 – GAS CONTROLS

Products

Position	Product
1	MAY 74002531
2	WP8273096 Whirlpool Screw
2	MAY 74002532
2	MAY 7502P252-60
3	MAY 74002535
3	MAY 74002534
4	MAY 3412D018-09
5	MAY 7510P049-60
6	MAY 74002394
7	MAY 74002393
8	MAY Y707113
9	MAY 7201P050-60
10	MAY 74002434
10	SCREW
11	MAY 1555251
11	MAY 74002456
12	MAY 74003288
12	8215557 Whirlpool Gas Stove Range Oven Cooktop Spark Module
14	MAY 7432P076-60
14	WP3351614 Whirlpool Screw
15	12002280 Whirlpool Oven Valve Kit and Screw
15	MAY 7101P044-60
16	WP7403P287-60 Whirlpool Igniter Switch
16	MAY 74002533
17	NUT, WING
18	MAY 74002387
19	MAY 74002457
19	MAY 74002363
19	MAY 74002362
20	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
