3147XRW-X 02 – CONTROL PANEL – Aparts

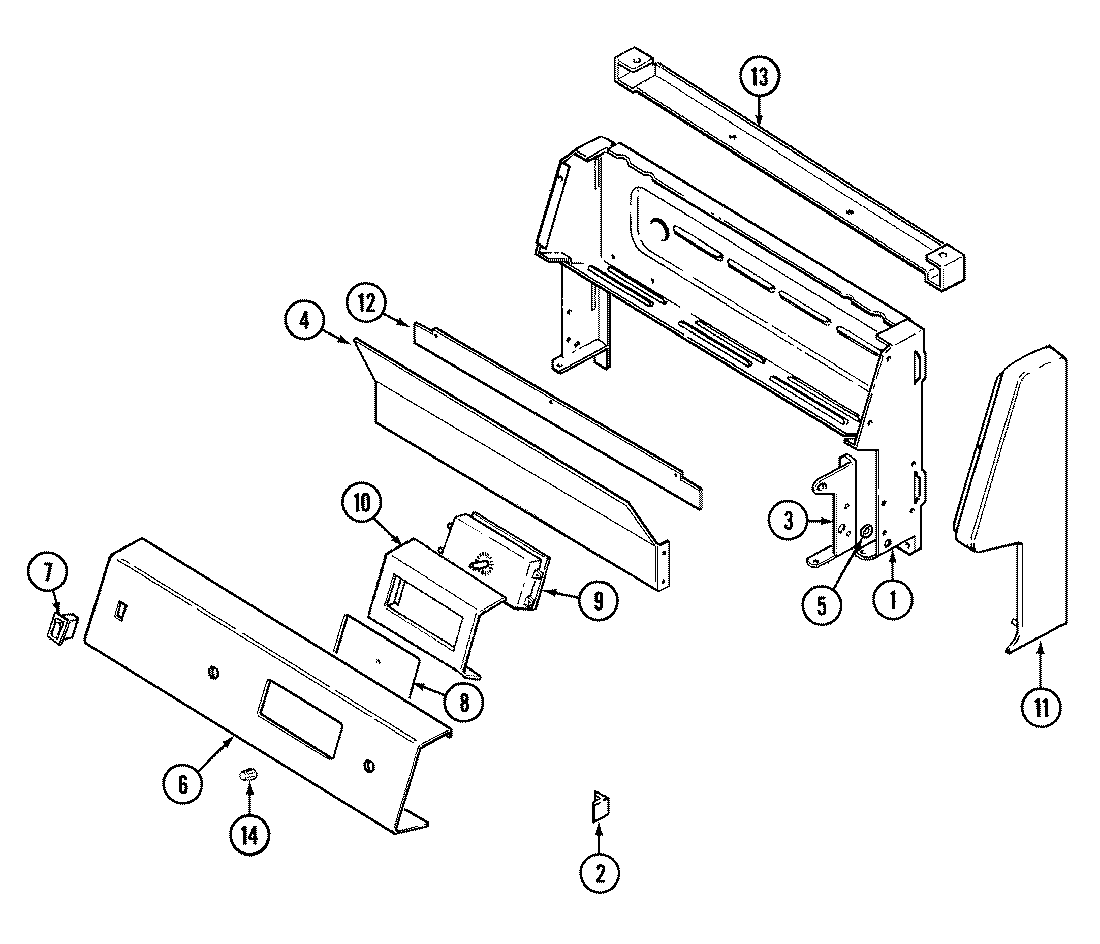

3147XRW-X 02 – CONTROL PANEL

Products

Position	Product
1	MAY 4001F088-51
2	MAY 8010P083-60
3	MAY 3807F454-51
3	MAY 3807F453-51
4	MAY 3604F188-09
5	WP3195558 Whirlpool Nut
6	MAY 7703P279-60
7	7403P067-60 Whirlpool Light Switch
8	MAY 7902P108-60
8	MAY 7201P056-60
9	MAY 7602P085-60
10	MAY 3801F249-45
11	MAY 7726P050-60
11	MAY 7726P046-60
12	MAY 8036P003-60
13	MAY 4001F064-51
14	MAY 7711P466-60
19	MAY 5195D078-60
19	MAY 5125A312-60
19	MAY 5180D139-60
20	MAY 8113P043-60
21	MAY 16000329
