3147XTA 01 – BODY
Written by
in

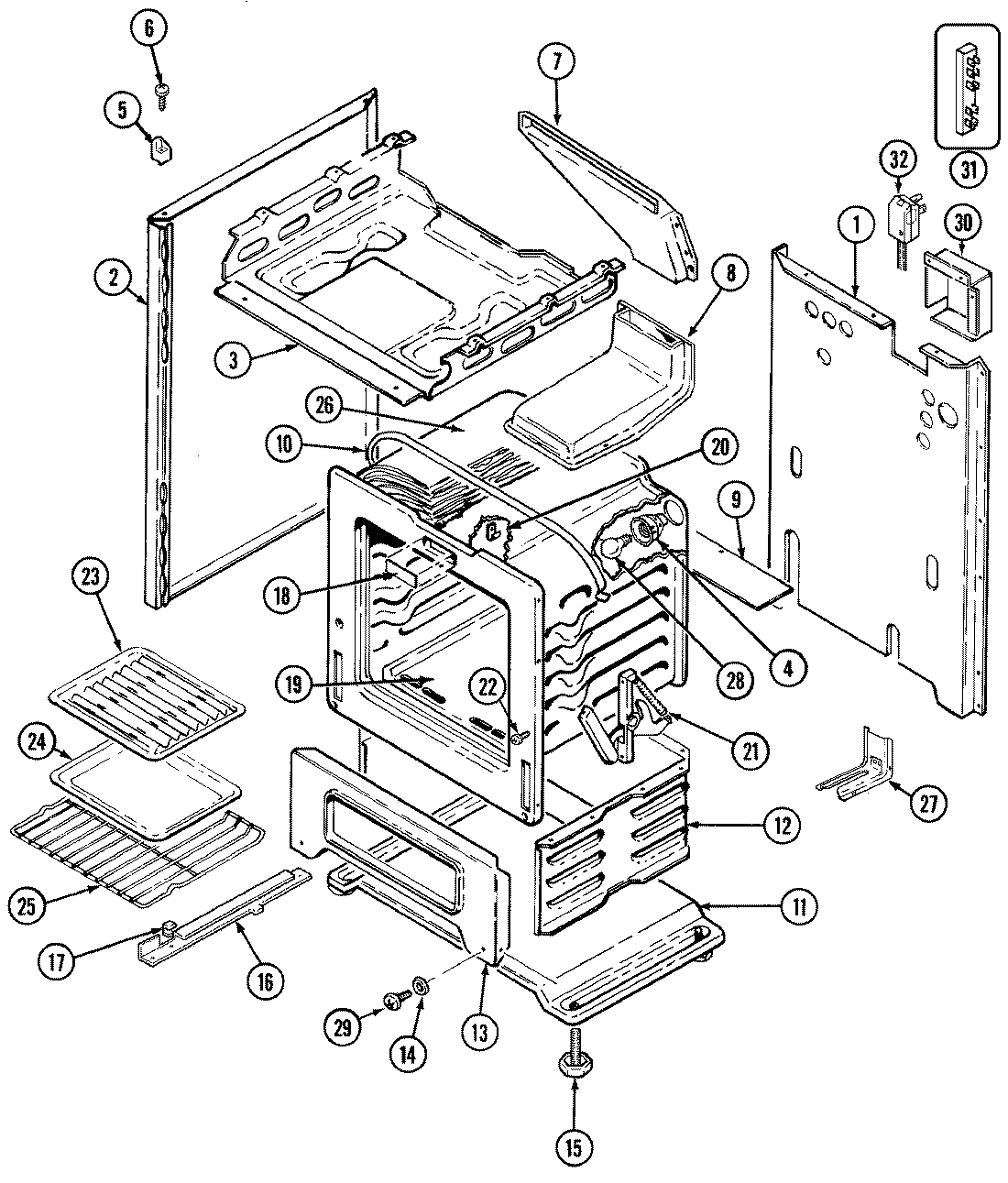

3147XTA 01 – BODY
Products
Position
Product
1
MAY 4002F188-80
2
MAY 2618F099-74
3
MAY 4011F209-80
4
WP7407P182-60 Whirlpool Lamp
5
SPACER, MAIN TOP (RT)
5
SPACER, MAIN TOP (LT)
6
MAY 7118P013-60
7
MAY 4022W005-19
8
WP74003976 Whirlpool Screw
8
MAY 4006W113-45
9
MAY 3807F416-45
10
MAY 4820F001-59
11
MAY 4003W028-80
12
MAY 4016F039-45
13
MAY 2201F073-19
14
MAY 8004P024-60
15
MAY 7101P306-60
16
MAY 3404F018-51
16
MAY 3404F021-51
17
MAY 8016P010-60
18
MAY 8114P335-60
19
MAY 3804F010-50
19
MAY 3601F229-45
19
MAY 5504A001-19
19
MAY 7101P290-60
20
WP7112P004-60 Whirlpool Thermal Clip
21
MAY 7106P055-60
22
SCREW, HINGE
23
MAY Y3413F01619
24
MAY Y3401F02019
25
MAY 7801P036-60
26
MAY 4804F017-60
26
MAY 4804F018-60
27
MAY 3801F218-51
28
MAY 7407P026-60
29
MAY 7101P300-60
30
MAY 4005F385-51
31
MAY 7401P037-60
32
MAY 7402P043-60
32
MAY 5185D250-60
←
