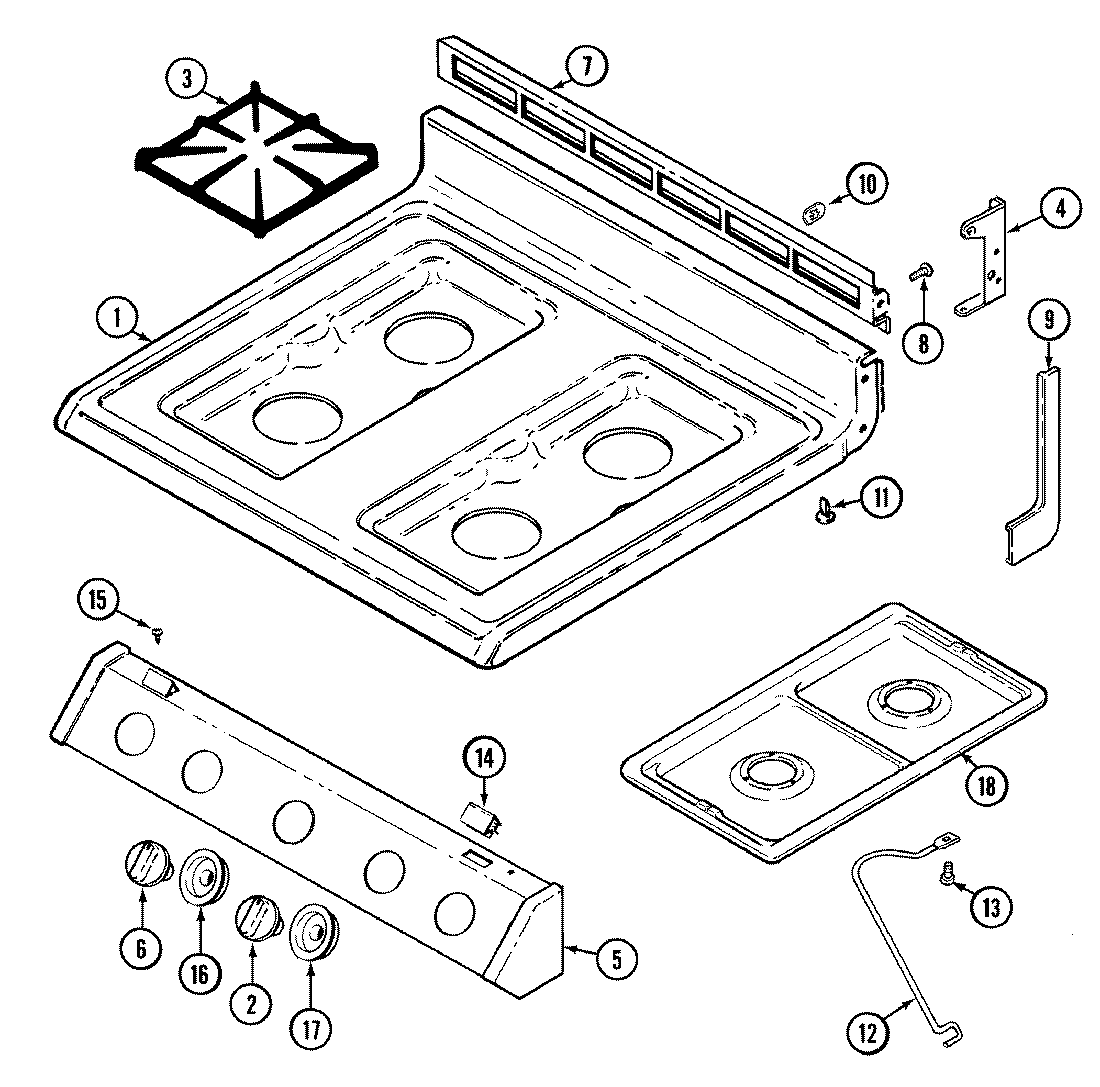

3147XTW 05 – TOP ASSEMBLY/MANIFOLD PANEL

3147XTW 05 – TOP ASSEMBLY/MANIFOLD PANEL

Written by

in

3147XTW 05 – TOP ASSEMBLY/MANIFOLD PANEL

Products

Position	Product
1	MAY 2001W082-81
2	WP74003781 Whirlpool Valve Knob
3	MAY 2003W027-00
4	MAY 3807F424-51
4	MAY 3807F423-51
4	MAY 8114P348-60
5	MAY 7712P131-60
5	MAY 7101P291-60
6	MAY 7731P082-60
7	MAY 3608F042-09
8	SCREW (10ABX1/4P TR ZN)
9	MAY 7746P030-60
9	MAY 7746P031-60
9	MAY 8270P095-60
10	MAY 7103P129-60
11	MAY 8016P013-60
12	MAY 3807F431-45
13	MAY 7101P290-60
14	MAY 7112P087-60
15	MAY 7118P015-60
16	WP7740P058-60 Whirlpool Knob Bezel
17	MAY 5401A452-60
17	MAY 7740P019-60
