3167XRA-X 02 – CONTROL PANEL – Aparts

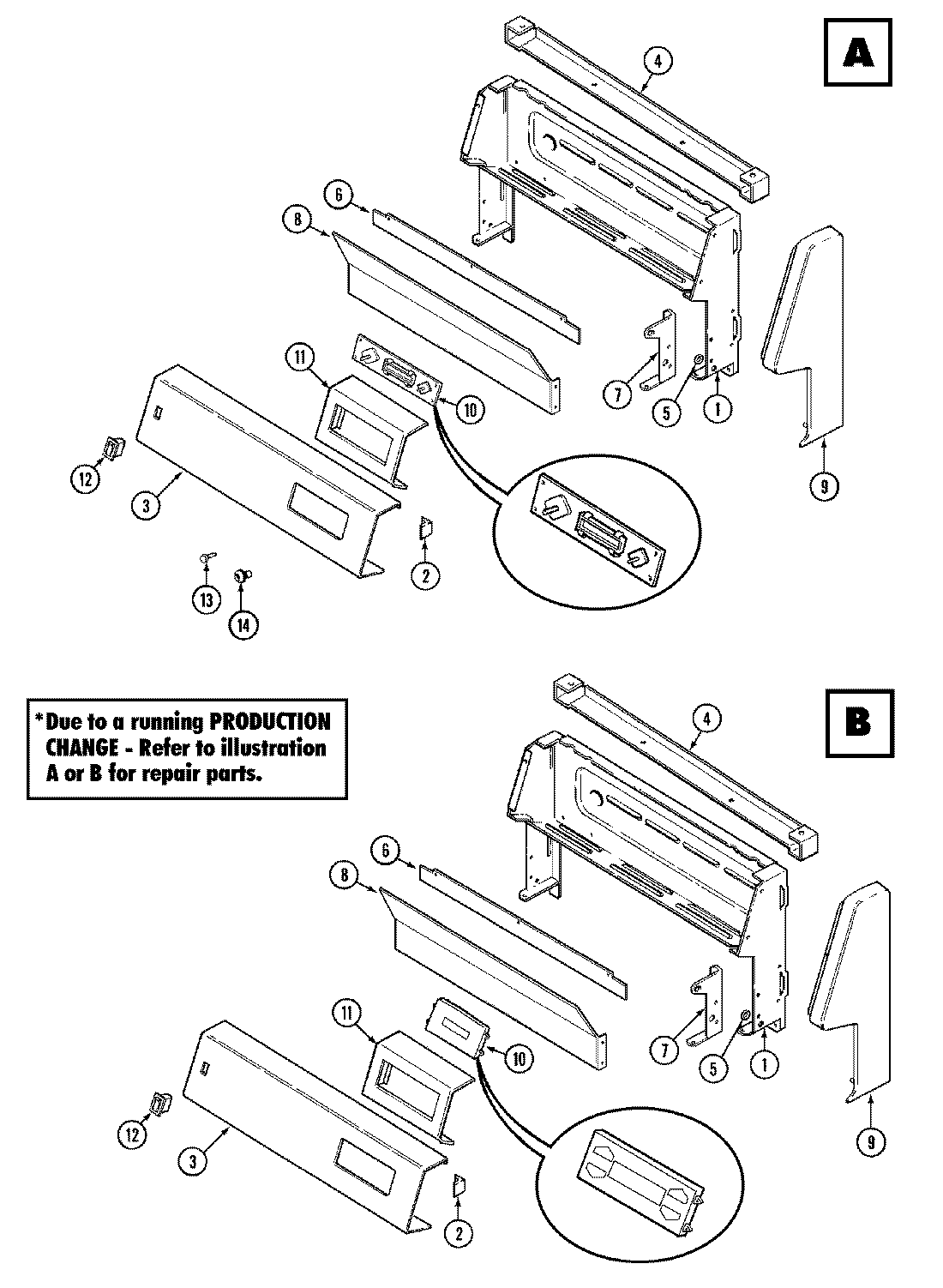

3167XRA-X 02 – CONTROL PANEL

Products

Position	Product
1	MAY 4005F448-45
1	MAY 4001F091-51
2	MAY 8010P083-60
3	MAY 12001082
3	MAY 7703P568-60
4	MAY 4001F064-51
5	WP3195558 Whirlpool Nut
6	MAY 8036P003-60
7	MAY 3807F454-51
7	MAY 3807F453-51
8	MAY 3604F188-09
9	MAY 7726P060-60
9	MAY 7726P059-60
10	WP8312P015-60 Whirlpool Knob Shaft
10	MAY 7602P095-60
10	MAY 7602P118-60
11	MAY 3801F340-45
11	MAY 3801F266-45
12	7403P067-60 Whirlpool Light Switch
13	MAY 7711P468-60
14	MAY 7711P172-60
15	MAY 5180D138-60
16	MAY 8113P043-60
16	MAY 16007436
17	MAY 16000329
