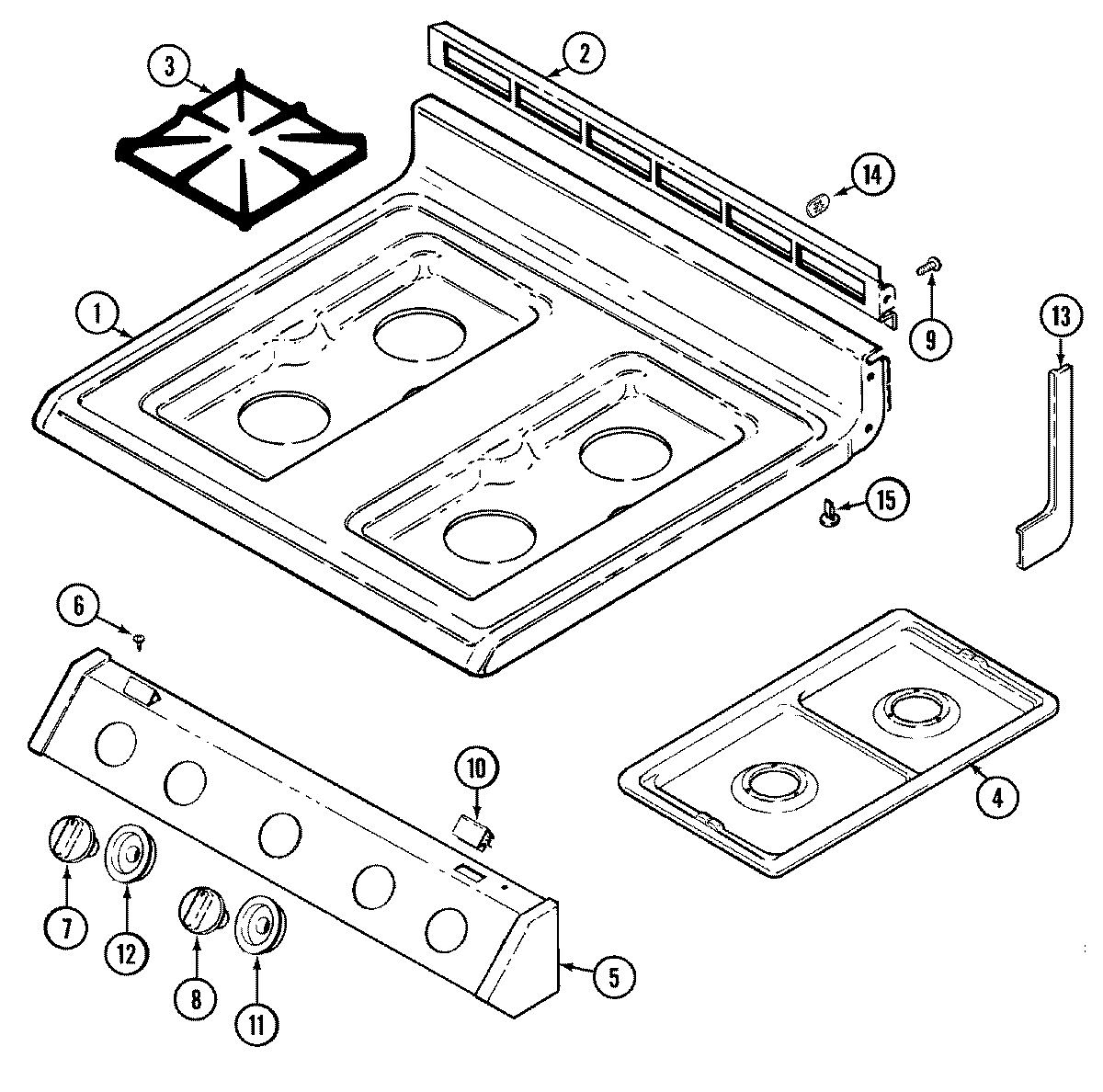

3167XUW 05 – TOP ASSEMBLY

3167XUW 05 – TOP ASSEMBLY

Written by

in

3167XUW 05 – TOP ASSEMBLY

Products

PositionProduct
1MAY 2001W082-81
2MAY 3608F042-09
3MAY 2003W027-00
4MAY 5401A452-60
5MAY 7712P131-60
5MAY 7101P291-60
6MAY 7118P015-60
7MAY 7731P082-60
8WP74003781 Whirlpool Valve Knob
9SCREW (10ABX1/4P TR ZN)
10MAY 7112P087-60
11WP7740P058-60 Whirlpool Knob Bezel
12MAY 7740P019-60
13MAY 8270P095-60
13MAY 7746P031-60
13MAY 7746P030-60
14MAY 7103P129-60
15MAY 8016P013-60
16MAY 8114P348-60
16MAY 3418A088-34
16MAY 3418A087-34
