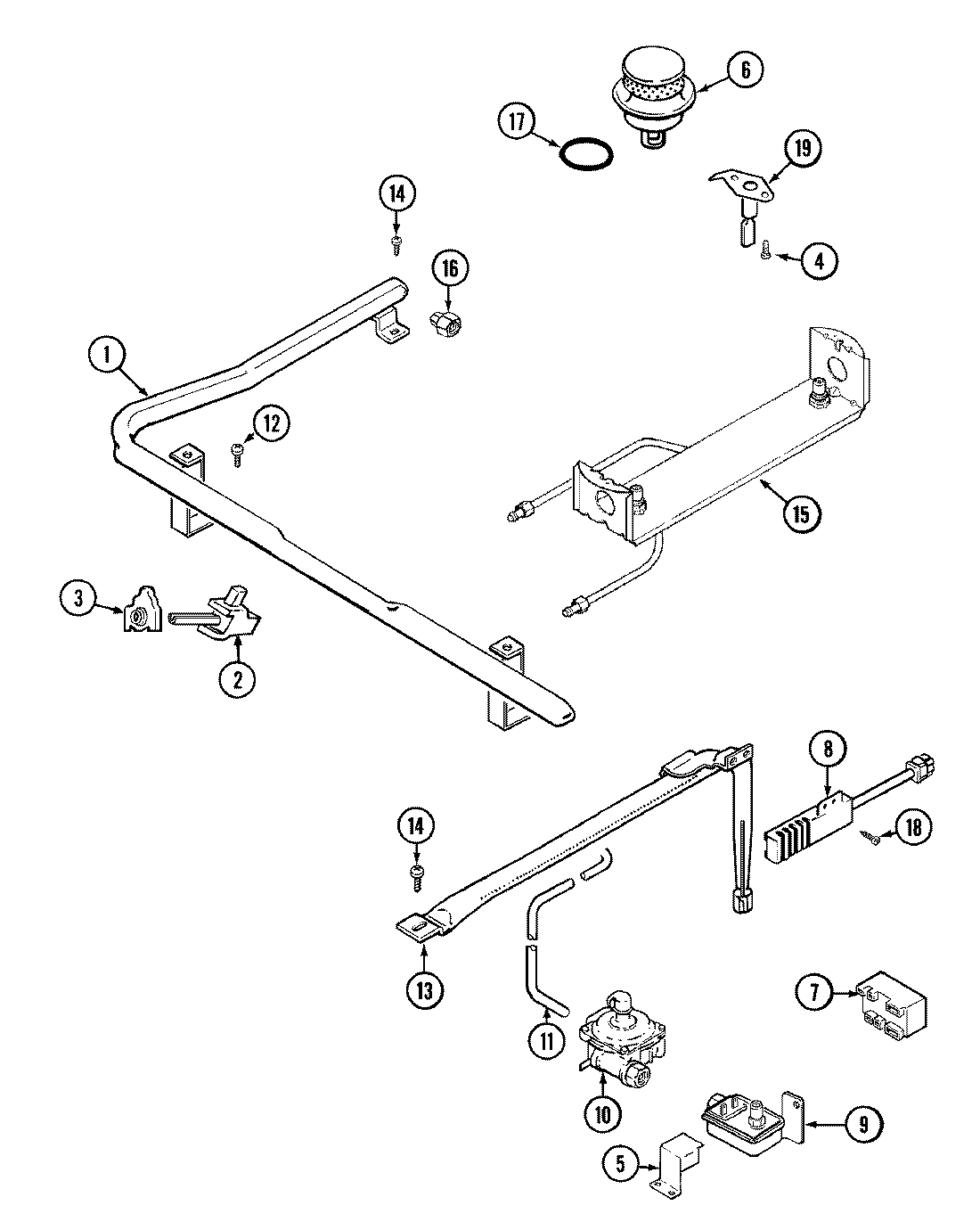

3167XYW 04 – GAS CONTROLS

Products

Position	Product
1	MAY 7513P120-60
2	MAY 7502P251-60
3	WP7403P279-60 Whirlpool Igniter Switch
4	MAY 7101P148-60
5	MAY 4005F333-51
6	MAY 3412D018-09
7	MAY 3807F432-45
7	MAY 7431P027-60
7	SCREW (8BX3/8-NI)
8	MAY 7432P076-60
9	MAY 7501P137-60
10	MAY 7507P123-60
10	WP74006429 Whirlpool Regulator
11	MAY 3414F104-44
12	MAY 7101P044-60
13	MAY 3403D023-45
14	SCREW
15	MAY 5187D034-60
15	MAY 5187D033-60
16	MAY 7103P130-60
17	MAY 7201P050-60
18	WP3351614 Whirlpool Screw
21	MAY 7111P017-60
22	MAY 5125A312-60
22	MAY 5140D038-60
22	MAY 5195D078-60
23	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
