3187VRV 02 – CONTROL PANEL – Aparts

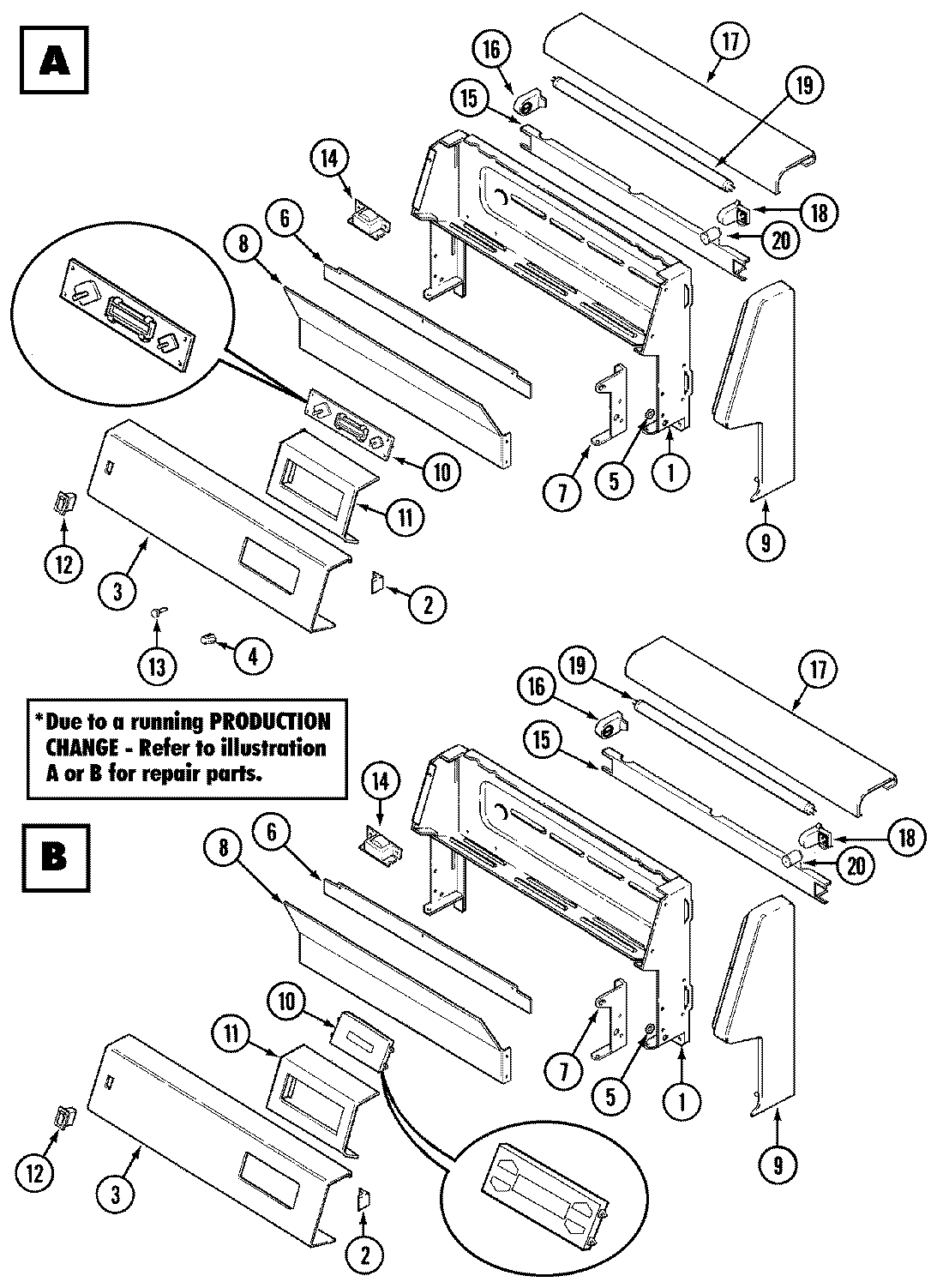

3187VRV 02 – CONTROL PANEL

Products

Position	Product
1	MAY 4001F091-51
1	MAY 4005F448-45
2	MAY 8010P083-60
3	MAY 74002420
3	MAY 12001084
4	MAY 7711P493-60
5	WP3195558 Whirlpool Nut
6	MAY 8036P003-60
7	MAY 3807F454-51
7	MAY 3807F453-51
8	MAY 3604F188-09
9	MAY 7726P073-60
9	MAY 7726P074-60
10	W10799767 Whirlpool Clock Timer
10	WP8312P015-60 Whirlpool Knob Shaft
11	MAY 3801F340-45
11	MAY 3801F266-45
12	MAY 7403P314-60
13	MAY 7711P420-60
14	MAY 7412P007-60
15	MAY 3807F406-71
16	MAY 7408P030-60
17	MAY 7724P059-60
18	MAY 7408P029-60
19	MAY 7407P004-60
20	MAY 7415P001-60
21	MAY 5180D138-60
22	MAY 8113P043-60
22	MAY 16007436
23	MAY 16000329
