3187VRV 05 – TOP ASSEMBLY – Aparts

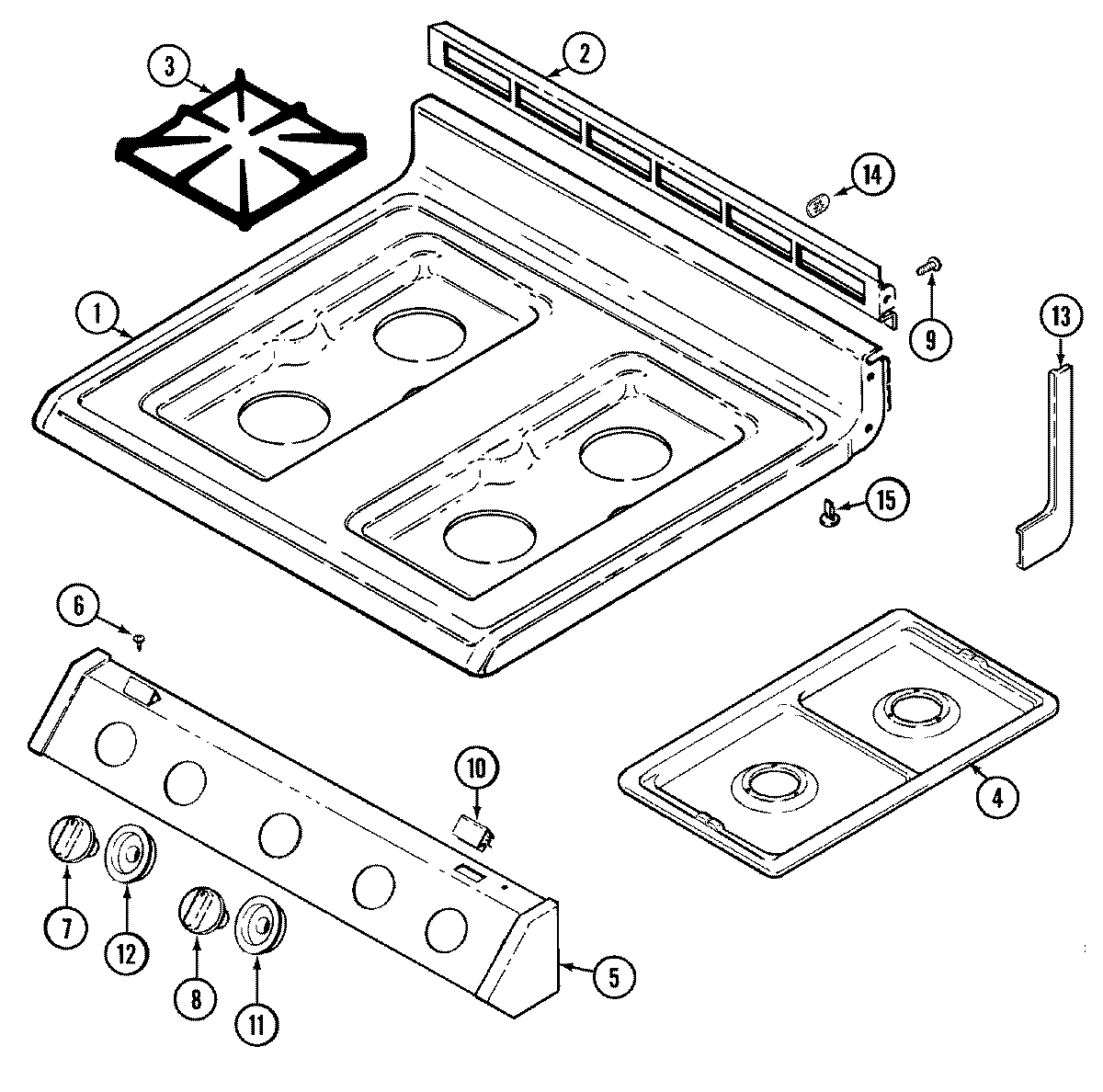

3187VRV 05 – TOP ASSEMBLY

Products

Position	Product
1	MAY 2001W082-81
2	MAY 3608F042-09
3	MAY 2003W027-26
4	MAY 5401A452-60
5	MAY 7712P148-60
5	MAY 7101P291-60
6	MAY 7118P015-60
7	MAY 7731P081-60
8	WP74003769 Whirlpool Valve Knob
9	SCREW (10ABX1/4P TR ZN)
10	MAY 7112P087-60
11	MAY 7740P034-60
12	MAY 7740P022-60
13	MAY 8270P095-60
13	MAY 7746P033-60
13	MAY 7746P032-60
14	MAY 7103P129-60
15	MAY 8016P013-60
