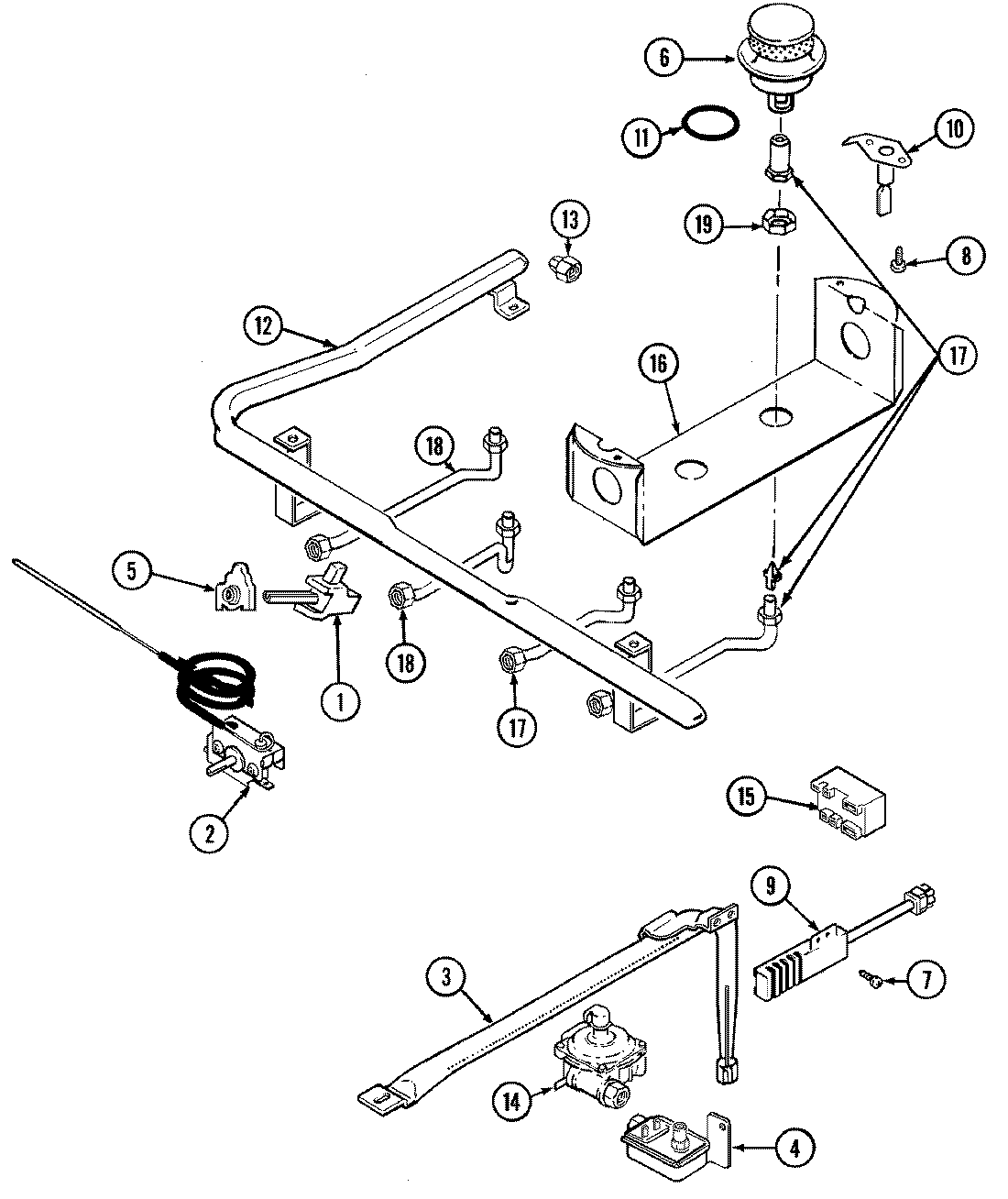

3187XRA 04 – GAS CONTROLS

Products

Position	Product
1	MAY 7502P218-60
2	MAY 7404P084-60
2	MAY 3604F177-51
2	MAY 7101P280-60
3	MAY 3403D023-45
4	MAY 7501P099-60
4	MAY 4005F334-51
5	WP7403P279-60 Whirlpool Igniter Switch
6	MAY 3412D017-09
7	SCREW (10-24X5/16-NI)
8	MAY 7101P315-60
9	MAY 7432P067-60
11	MAY 7201P050-60
12	MAY 3414F104-44
12	MAY 7513P120-60
13	MAY 7103P130-60
14	MAY 7510P050-60
15	MAY 7431P021-60
15	MAY 3807F432-45
16	MAY 3807F444-45
17	MAY 7507P085-60
18	MAY 7507P113-60
19	MAY 7507P084-60
20	MAY 7507P091-60
21	MAY 7103P119-60
22	MAY 5140D038-60
22	MAY 5125A312-60
22	MAY 7101P296-60
23	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
