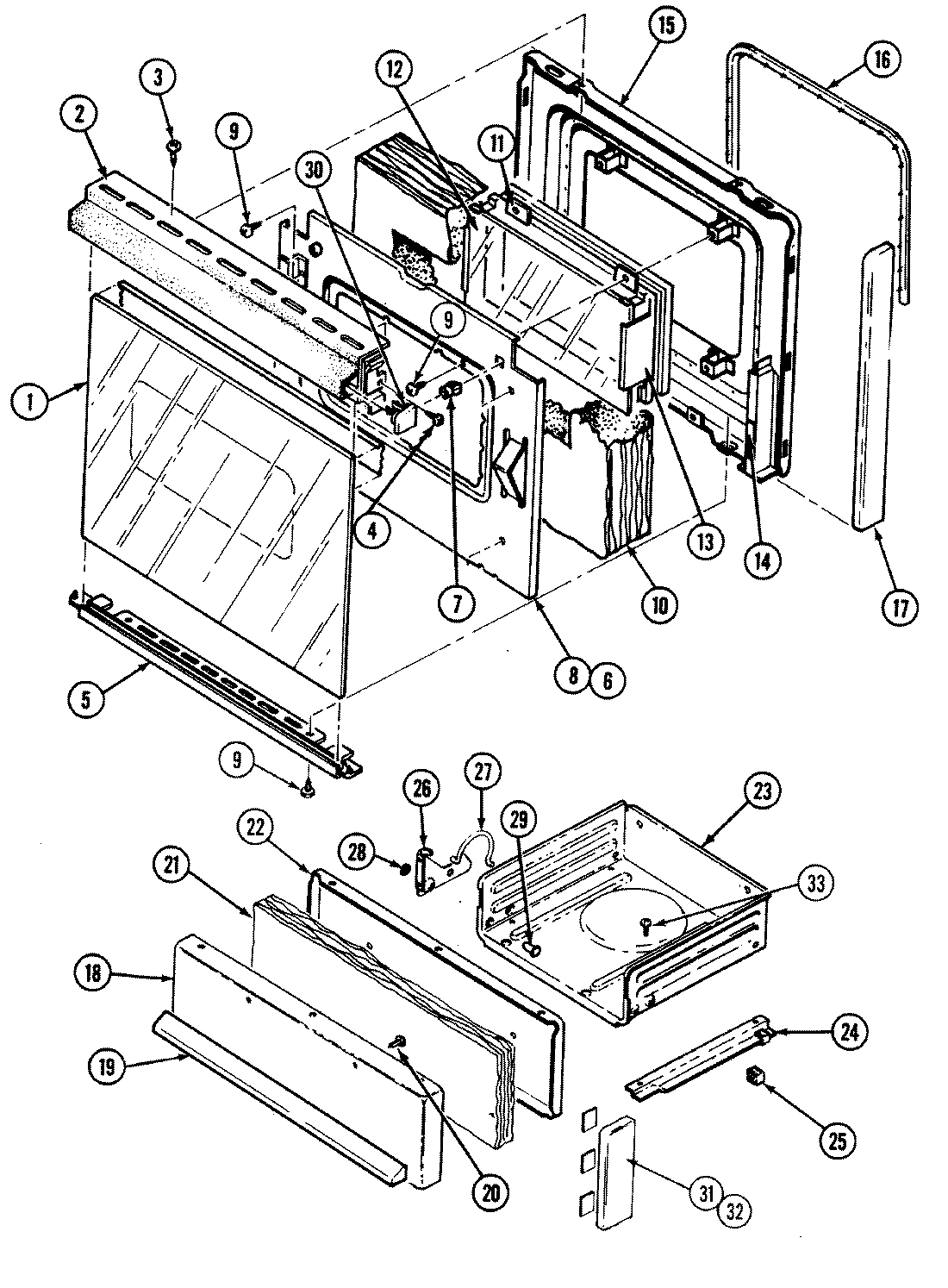

3187XTW 03 – DOOR/DRAWER (3187XTx MODEL)

Products

Position	Product
1	MAY 7902P321-60
2	MAY 7701P103-60
3	WP98008545 Whirlpool Screw
4	MAY 7101P291-60
5	MAY 7744P078-60
6	MAY 8010P085-60
7	MAY 8010P075-60
8	MAY 3601F219-45
9	MAY 7101P290-60
10	MAY 4804F011-60
11	MAY 3603F036-80
12	MAY 7902P319-60
13	MAY 7907P016-60
14	MAY 7208P011-60
15	MAY 2402W193-19
16	MAY 7212P034-60
17	MAY 7744P055-60
18	MAY 2403F028-70
19	WP2411F013-70 Whirlpool Door Handle
20	74002481 Whirlpool Screw
21	MAY 4804F025-60
22	MAY 2404F035-19
23	MAY 3407F012-19
24	MAY 3404F022-51
24	MAY 3404F023-51
25	MAY 8016P011-60
25	MAY 8016P013-60
26	MAY 3418F079-51
26	MAY 3418F080-51
27	MAY 7803P065-60
27	MAY 7803P064-60
28	MAY 7103P022-60
29	MAY 7113P012-60
30	MAY 7744P075-60
30	MAY 7744P076-60
31	MAY 7744P073-60
32	MAY 8270P094-60
33	MAY 7101P061-60
