3187XUW 02 – CONTROL PANEL – Aparts

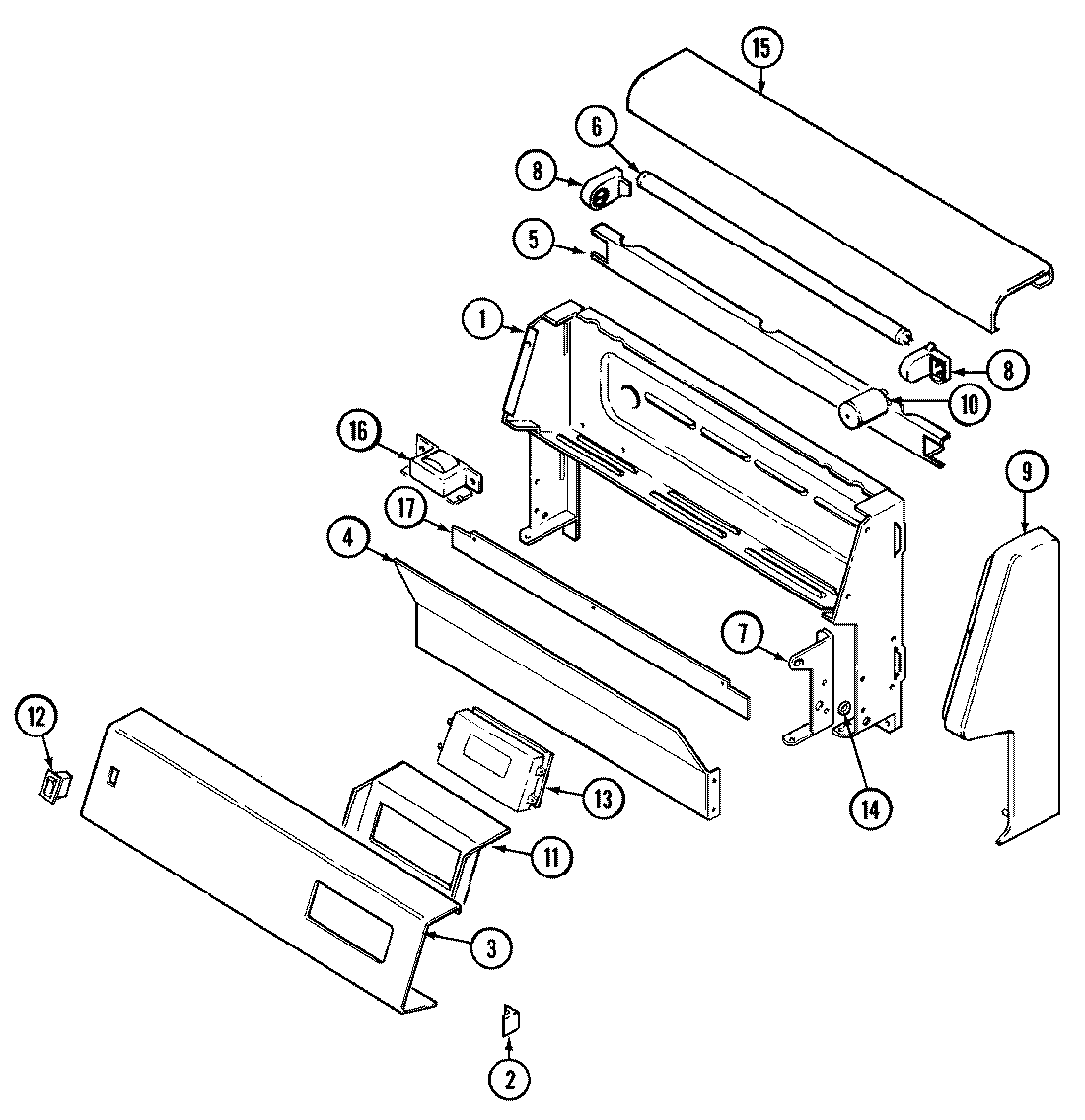

3187XUW 02 – CONTROL PANEL

Products

Position	Product
1	MAY 4001F088-51
2	MAY 7101P148-60
2	MAY 8010P083-60
3	MAY 7703P567-60
3	WPY706189 Whirlpool Stove Screw
4	MAY 3604F188-09
5	MAY 3807F406-71
6	MAY 7407P004-60
7	MAY 3807F453-51
7	MAY 3807F454-51
8	MAY 7408P030-60
8	MAY 7408P029-60
9	MAY 7726P048-60
9	MAY 7118P019-60
9	MAY 7726P047-60
10	MAY 7415P001-60
11	MAY 3801F330-45
12	7403P067-60 Whirlpool Light Switch
13	MAY 7602P118-60
14	MAY 7103P129-60
15	MAY 7724P054-60
16	MAY 7412P007-60
17	MAY 8036P003-60
18	MAY 5180D138-60
19	MAY 8113P043-60
20	MAY 16000329
