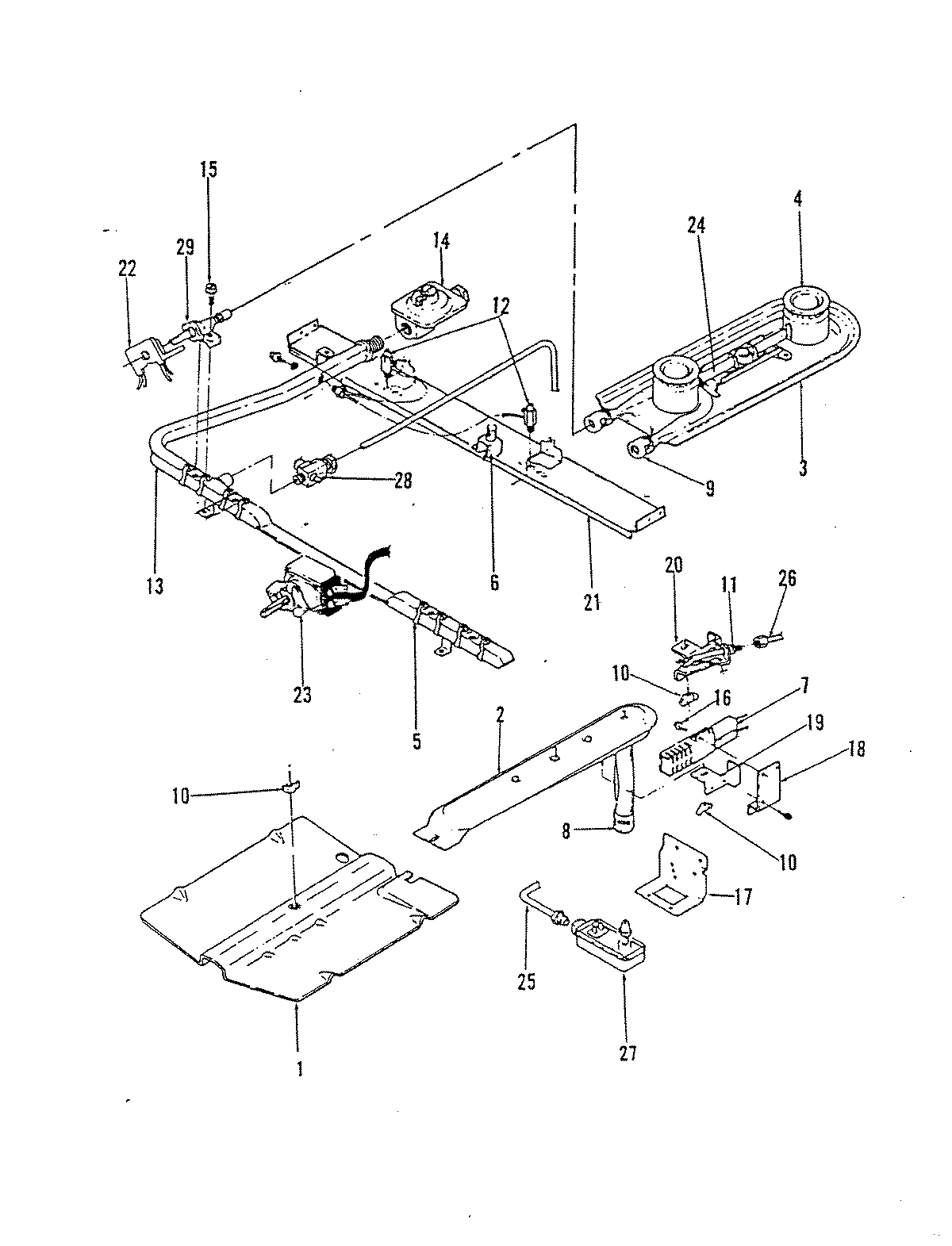

31FA-1 02 – CONTROL SYSTEM
Written by
in
31FA-1 02 – CONTROL SYSTEM
Products
Position
Product
1
MAY 0153321
1
MAY 3601F099-45
2
MAY 7505P064-60
2
MAY 0298234
3
MAY Y0300252
4
MAY 1083219
5
MAY 1141225
6
MAY 1482239
6
MAY 1482237
7
W11027451 Whirlpool Knob Thermostat
7
WP7711P135-60 Whirlpool Knob
8
MAY 0607214
9
MAY 1555222
9
MAY Y0607215
9
MAY 1555251
10
MAY 1555258
10
MAY 1555254
11
MAY 1566267
12
MAY 1566281
12
MAY 7505P057-60
13
MAY 7513E028
14
MAY 1665248
15
MAY 1986319
17
MAY 0862445
19
MAY 0862434
20
MAY 0862435
21
MAY 0862470
23
MAY 7515P015-60
24
MAY 1930321
24
MAY 1930254
25
MAY Y0936102
26
MAY 0931202
27
MAY 7501P021-60
27
MAY 1945271
28
NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
29
MAY 7502P016-60
29
MAY 7502P015-60
29
MAY 7502P109-60
←
