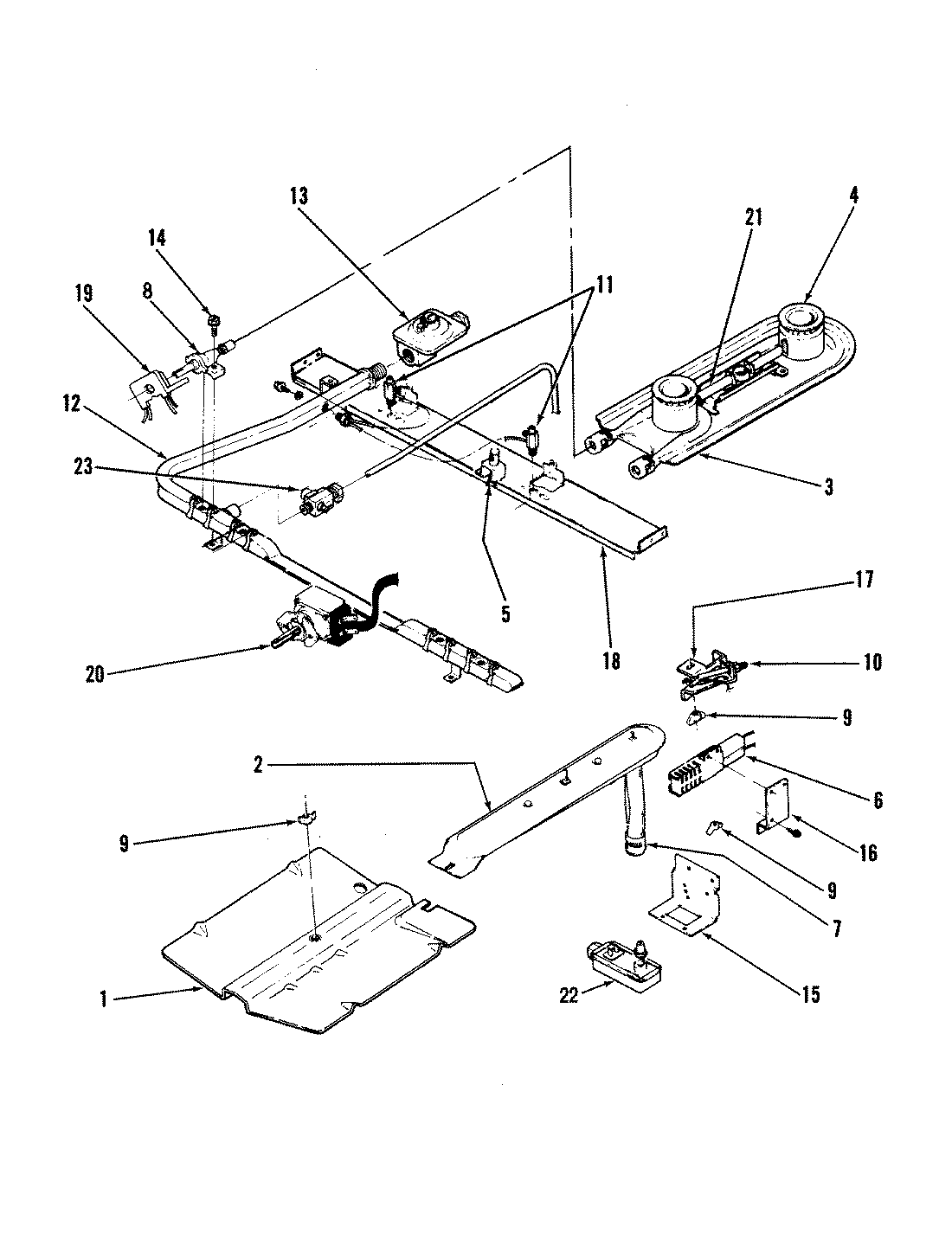

31FK-10-FJ 04 – OVEN CONTROL SYSTEM

Products

Position	Product
1	MAY 3601F099-45
2	MAY 7505P064-60
2	MAY 0298234
3	MAY Y0300253
4	MAY 7504P001-60
6	MAY 7711P137-60
6	WP7711P135-60 Whirlpool Knob
7	MAY 3411F001-34
7	MAY 1555222
7	MAY 1555251
8	MAY 7502P109-60
8	MAY 7502P016-60
9	MAY 1555254
9	MAY 1555258
10	MAY 1566267
11	MAY 7505P081-60
12	MAY 7513P028-60
13	MAY 7510P002-60
14	MAY 1986319
15	MAY 3807F120-34
17	MAY 0862435
18	MAY 3807F221-80
20	MAY 7515P015-60
21	MAY 7506P006-60
22	MAY 7501P021-60
23	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
