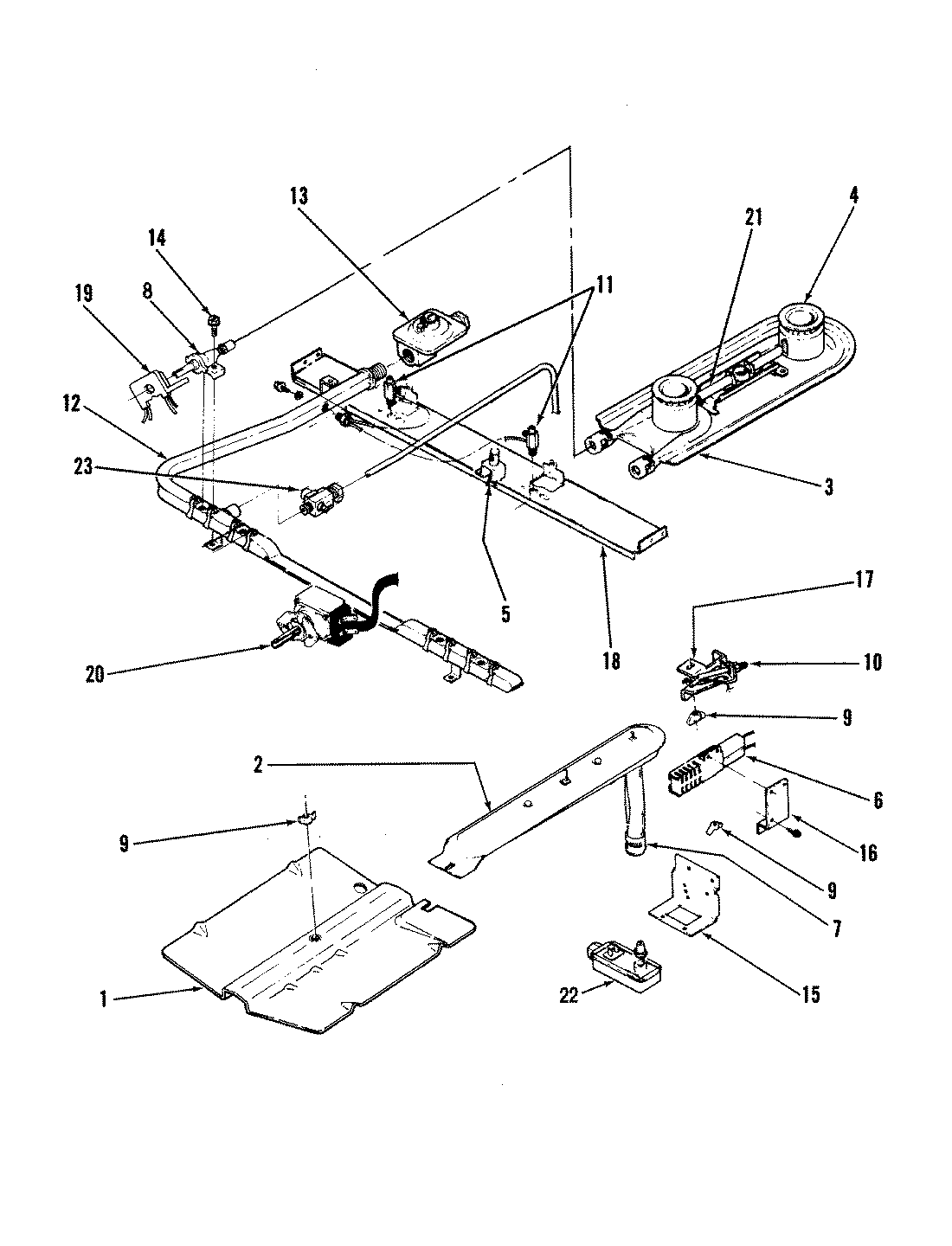

31FY-10KXS-ON 04 – OVEN CONTROL SYSTEM

Products

Position	Product
1	MAY 3601F099-45
2	MAY 7505P064-60
2	MAY 0298234
3	MAY Y0300253
4	MAY 7504P001-60
4	MAY 4005F304-51
5	MAY 7432P015-60
5	MAY 7432P008-60
6	MAY 7711P312-60
6	WP7711P135-60 Whirlpool Knob
6	MAY 7432P062-60
6	MAY 1482224
7	MAY 3411F001-34
7	MAY 7431P006-60
7	MAY 1555251
7	MAY 1555222
8	MAY 7502P016-60
8	MAY 7502P109-60
9	MAY 1555254
9	MAY 1555258
12	MAY 7513P043-60
12	MAY 3830F006-45
13	MAY 7510P002-60
14	MAY 1986319
15	MAY 3807F120-34
16	MAY 3807F118-45
17	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
18	MAY 3807F221-80
19	MAY 7403P041-60
20	MAY 7515P008-60
21	MAY 7506P006-60
