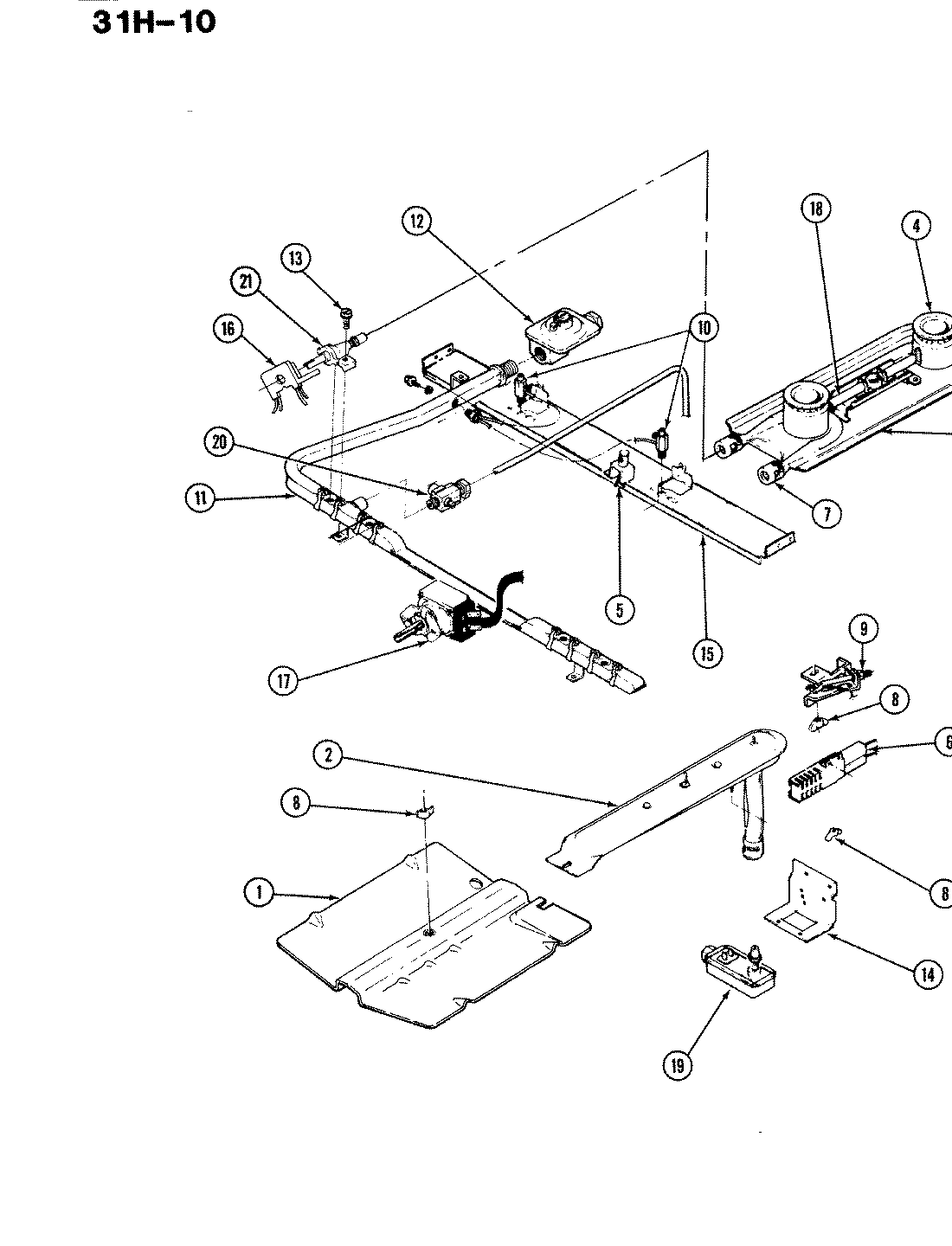

31HA-10KXS-ON 04 – OVEN CONTROL SYSTEM

Products

Position	Product
1	MAY 3801F179-45
1	MAY 3601F181-45
1	MAY 7101P061-60
2	MAY 7505P101-60
2	MAY 3403A015-45
2	MAY 3403D027-45
3	MAY 7505P170-60
3	MAY 7505P171-60
3	MAY 3412A004-23
3	MAY 3412A004-19
4	MAY 7504P001-60
4	MAY 4005F167-80
4	MAY 4005F006-80
4	MAY 4005F173-51
4	MAY 4005F304-51
5	MAY 7432P008-60
5	MAY 7432P015-60
6	MAY 7432P062-60
6	MAY 7432P052-60
7	MAY 7431P006-60
7	MAY 1555222
7	MAY 1555251
7	MAY 3411F001-34
8	MAY 1555258
8	NUT, WING
11	MAY 7513P101-60
11	MAY 3830F006-45
11	MAY 7513P043-60
11	MAY 7513P133-60
12	MAY 7510P002-60
13	MAY 3604F030-51
13	MAY 7101P044-60
13	MAY 3411F006-35
13	MAY 7214P003-60
13	MAY 3604F042-51
13	MAY 7101P043-60
13	MAY 7101P296-60
13	MAY 3411F006-34
14	MAY 3807F120-34
15	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
16	WP7403P190-60 Whirlpool Switch
16	MAY 7403P216-60
16	MAY 7403P259-60
16	MAY 7403P285-60
17	MAY 7404P063-60
17	MAY 7404P062-60
17	MAY 7515P008-60
18	MAY 7506P006-60
18	MAY 3414F049-44
19	MAY 7501P017-60
20	MAY 7502P002-60
21	MAY 7502P109-60
21	MAY 7502P174-60
21	MAY 7502P132-60
