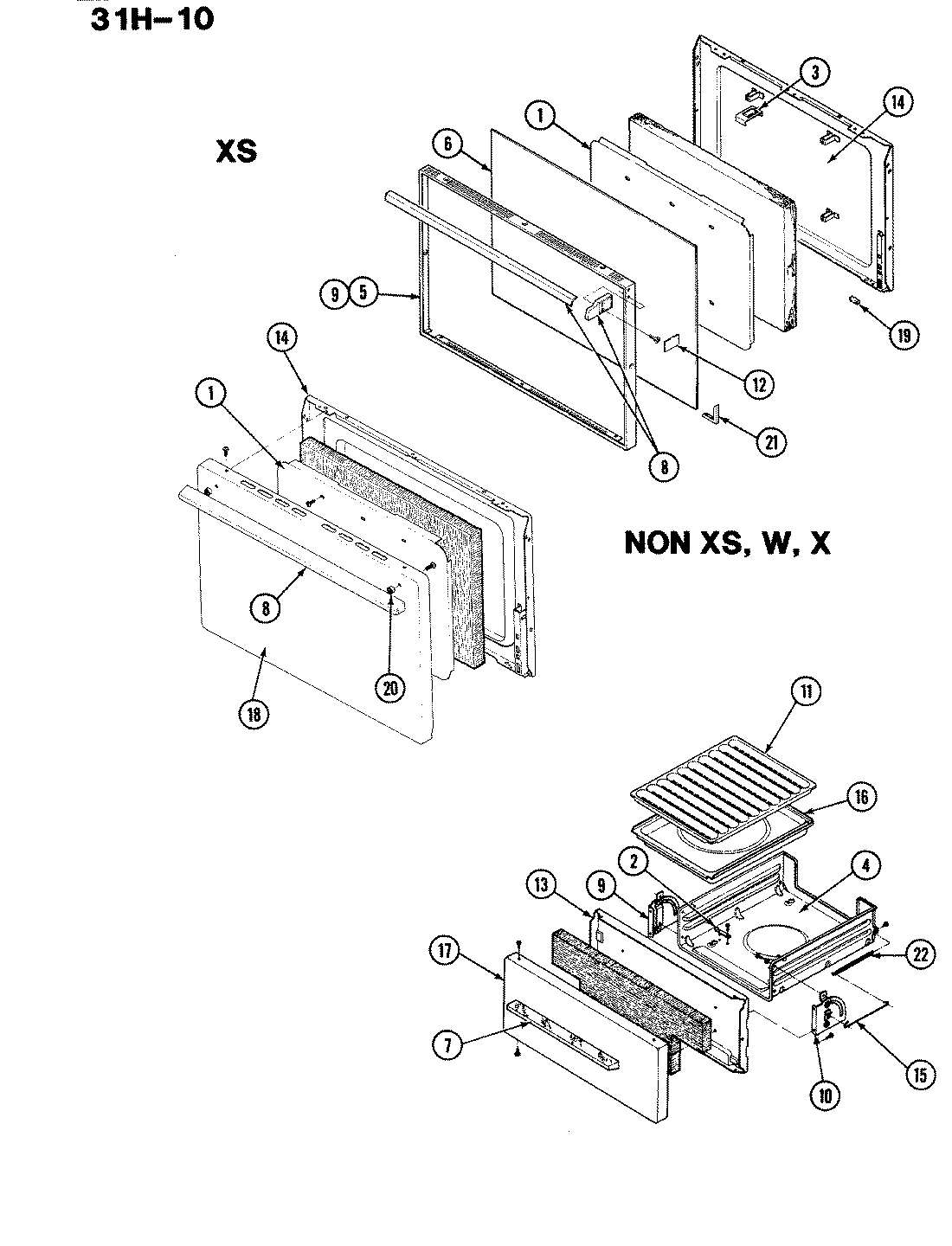

31HA-10XS-ON 03 – DOOR PARTS

Products

Position	Product
1	MAY 3601F026-51
2	MAY 7103P067-60
2	MAY 7101P076-60
2	MAY 8002P001-60
3	CLIP, DOOR
4	MAY 3407W009-23
5	MAY 7706P243-60
6	MAY 7902P275-60
7	MAY 7701P012-60
8	MAY 7101P123-60
8	MAY 7701P047-60
9	MAY 3418A063-34
10	MAY 3418A062-34
10	MAY 7101P061-60
11	MAY 3413F002-23
12	MAY 7728P012-60
13	MAY 2404F016-23
13	MAY 7101P058-60
14	MAY 2402W090-23
15	MAY 7807P001-60
16	MAY 3401F004-23
17	MAY 2416F025-74
19	MAY 7208P011-60
20	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
21	MAY 8010P045-60
22	MAY 7803P014-60
