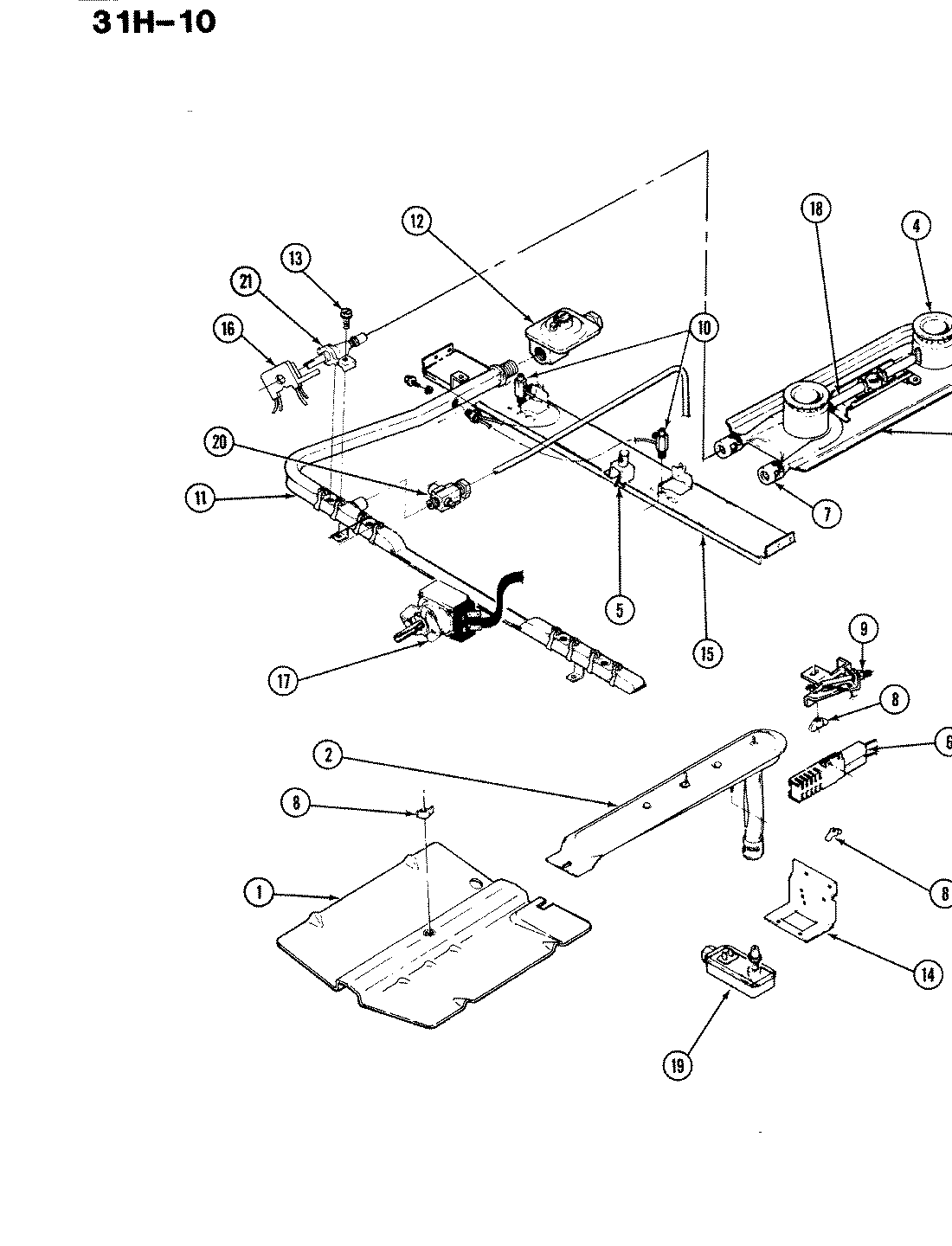

31HA-10XS-ON 04 – OVEN CONTROL SYSTEM

Products

Position	Product
1	MAY 3601F181-45
2	MAY 3403A015-45
2	MAY 3403D027-45
2	MAY 7505P101-60
3	MAY 7505P171-60
3	MAY 7505P170-60
3	MAY 3412A004-19
3	MAY 3412A004-23
4	MAY 4005F173-51
4	MAY 7504P001-60
7	MAY 3411F001-34
7	MAY 1555251
7	MAY 7103P070-60
7	MAY 1555222
8	MAY 1555258
8	NUT, WING
9	MAY 1566267
9	MAY 7432P068-60
10	MAY 7505P193-60
10	MAY 7505P081-60
11	MAY 7513P131-60
11	MAY 7513P028-60
11	MAY 7513P102-60
12	MAY 7510P002-60
13	MAY 3604F030-51
13	MAY 3411F006-35
13	MAY 3604F042-51
13	MAY 3411F006-34
13	MAY 7101P296-60
13	MAY 7101P044-60
13	MAY 7101P043-60
13	MAY 7214P003-60
14	MAY 3807F204-34
14	MAY 3807F120-34
14	MAY 7101P025-60
15	MAY 3807F347-51
17	MAY 7515P026-60
17	MAY 7515P015-60
17	MAY 7515P032-60
18	MAY 3414F050-44
18	MAY 7506P006-60
18	MAY 3414F099-44
18	MAY 3414F062-44
19	MAY 7501P101-60
19	MAY 7501P061-60
20	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
21	MAY 7502P174-60
21	MAY 7502P109-60
21	MAY 7502P222-60
