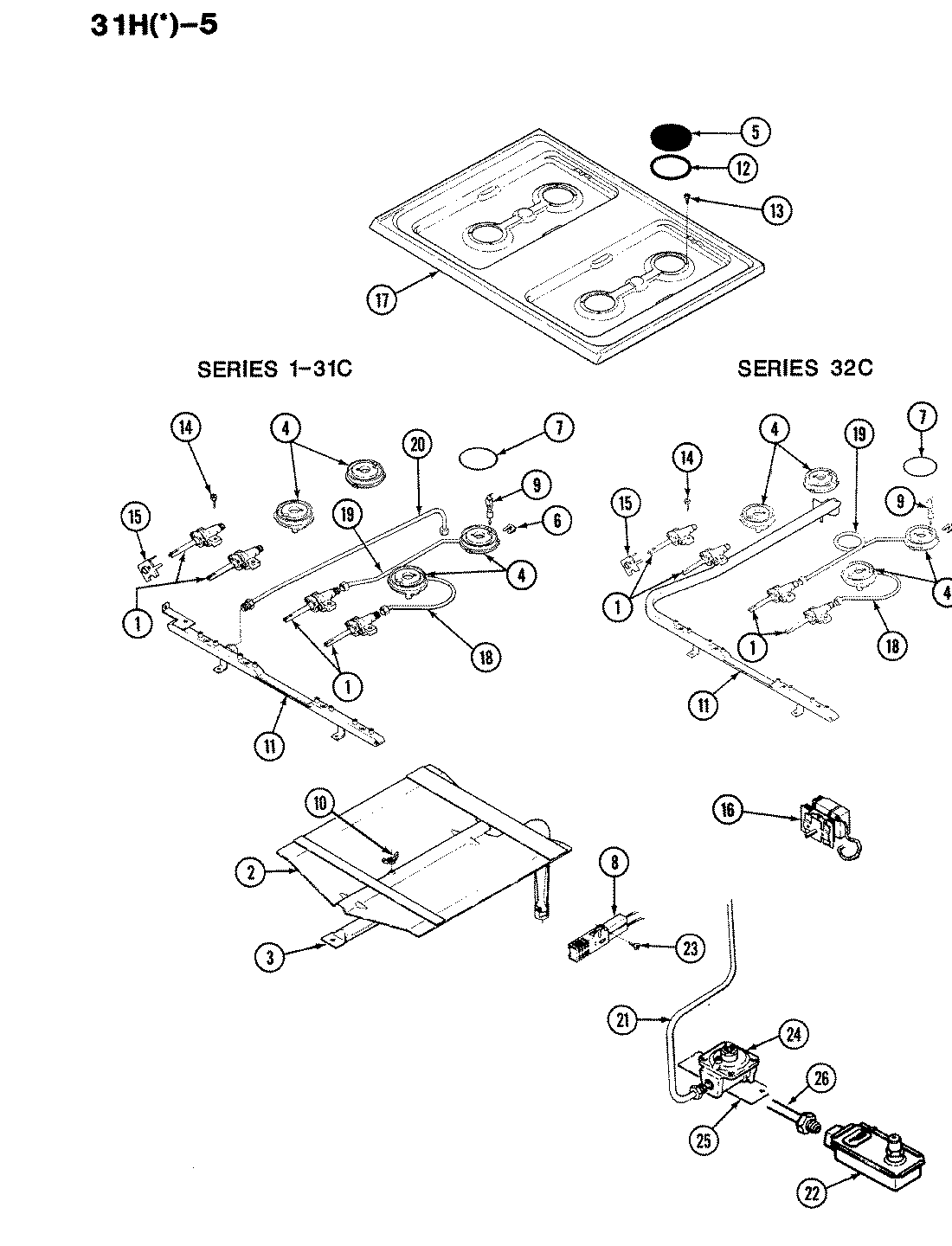

| 1 | MAY 7502P100-60 |
| 1 | MAY 7502P141-60 |
| 2 | MAY 3601F181-45 |
| 3 | MAY 3403A015-45 |
| 3 | MAY 7505P101-60 |
| 4 | MAY W10127325 |
| 4 | MAY 7505P187-60 |
| 5 | MAY 4005F167-80 |
| 5 | MAY 7504P007-60 |
| 5 | MAY 4005F304-51 |
| 5 | MAY 7504P005-60 |
| 6 | MAY 7507P053-60 |
| 6 | MAY 7112P072-60 |
| 7 | MAY 7201P037-60 |
| 7 | MAY 7518P004-60 |
| 8 | MAY 7432P062-60 |
| 8 | MAY 7432P052-60 |
| 9 | MAY 7431P006-60 |
| 9 | MAY 7431P016-60 |
| 9 | MAY 7431P017-60 |
| 9 | MAY 7432P053-60 |
| 10 | MAY 7509P034-60 |
| 10 | MAY 7509P033-60 |
| 10 | NUT, WING |
| 11 | MAY 7513P104-60 |
| 11 | MAY 3830F006-45 |
| 11 | MAY 7513P093-60 |
| 11 | MAY 7513P086-60 |
| 12 | MAY 2014F001-00 |
| 13 | MAY 7101P256-60 |
| 14 | MAY 3411F006-35 |
| 14 | MAY 7101P043-60 |
| 14 | MAY 7214P003-60 |
| 14 | MAY 3411F006-34 |
| 15 | WP7403P190-60 Whirlpool Switch |
| 16 | MAY 7404P063-60 |
| 16 | MAY 7515P008-60 |
| 16 | MAY 7101P279-60 |
| 17 | MAY 2001F063-84 |
| 17 | MAY 7746P026-60 |
| 17 | MAY 7746P025-60 |
| 18 | MAY 7506P076-60 |
| 19 | MAY 7506P077-60 |
| 20 | MAY 7506P092-60 |
| 20 | NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED) |
| 21 | MAY 7506P100-60 |
| 21 | MAY 7506P090-60 |
| 22 | MAY 7501P017-60 |
| 23 | SCREW (10-24X5/16-NI) |
| 24 | MAY 7510P026-60 |
| 25 | MAY 5110P824-60 |
| 25 | MAY 5110P825-60 |
| 25 | MAY 3801F191-45 |
| 26 | MAY 7506P098-60 |
| 26 | MAY 5415A014-60 |
