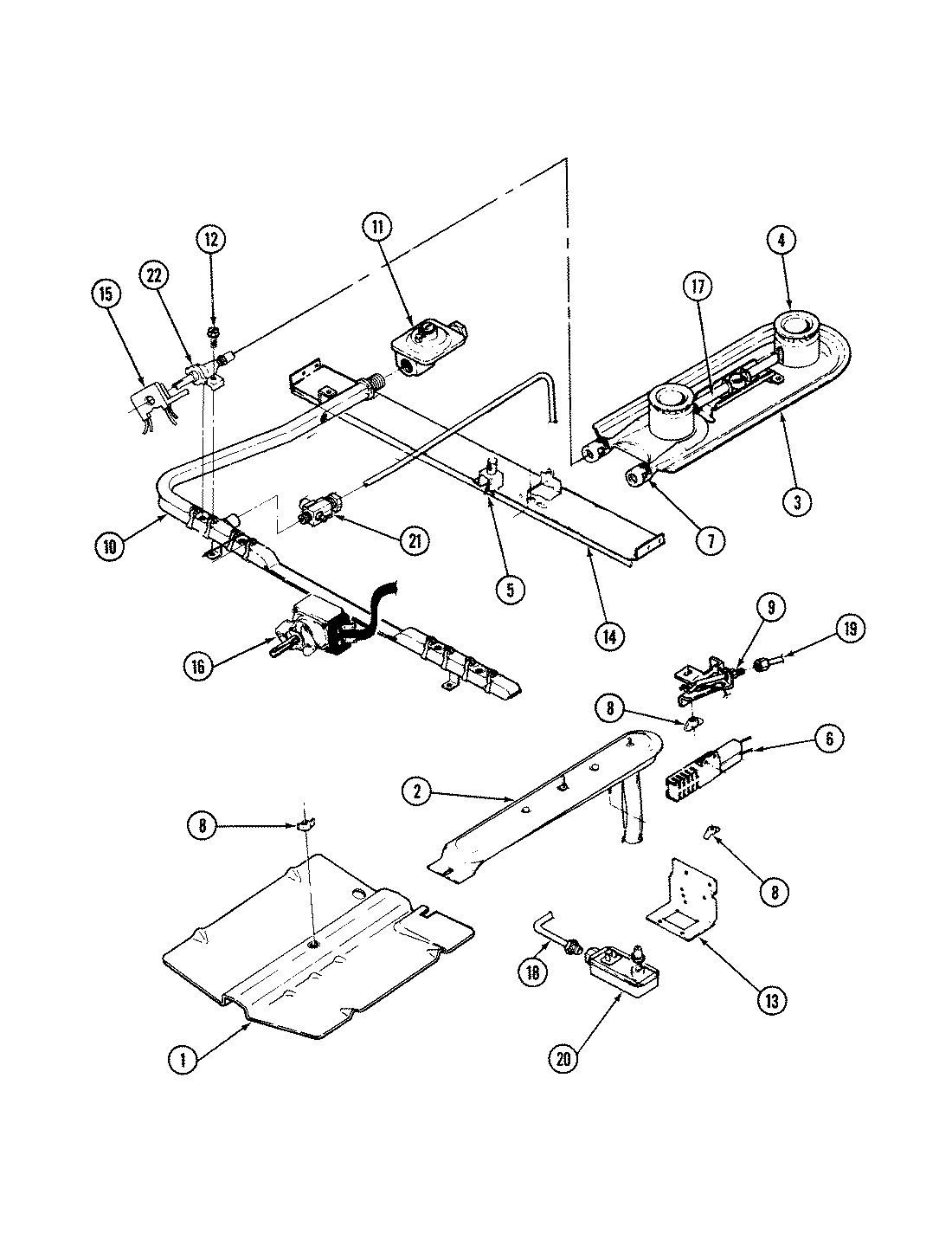

31HA-92KLW 04 – GAS CONTROLS

Products

Position	Product
1	MAY 3601F099-45
2	MAY 3403A015-45
2	MAY 3403D027-45
2	MAY 7505P101-60
3	MAY 3412A004-19
3	MAY 3412A004-23
4	MAY 4005F304-51
4	MAY 7504P001-60
5	MAY 7432P015-60
5	MAY 7432P008-60
6	WP7731P018-60 Whirlpool Knob
6	MAY 7432P062-60
6	MAY 7733P027-60
7	MAY 3411F004-34
7	MAY 7431P006-60
8	NUT, WING
10	MAY 7513P101-60
10	MAY 7513P133-60
10	MAY 7513P043-60
10	MAY 3830F006-45
11	MAY 7510P002-60
12	MAY 7101P296-60
12	MAY 7101P044-60
12	MAY 3411F006-34
12	MAY 7101P043-60
12	MAY 3411F006-35
13	MAY 3807F120-34
14	MAY 3807F221-80
15	MAY 7403P285-60
15	MAY 7403P216-60
15	MAY 7403P259-60
15	MAY 7403P041-60
15	MAY 7403P107-60
16	MAY 7404P063-60
17	MAY 7506P006-60
18	MAY 3414F099-44
18	MAY Y0936102
19	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
20	MAY 7501P017-60
21	MAY 7502P002-60
22	MAY 7502P174-60
22	MAY 7502P222-60
22	MAY 7502P016-60
22	MAY 7502P109-60
