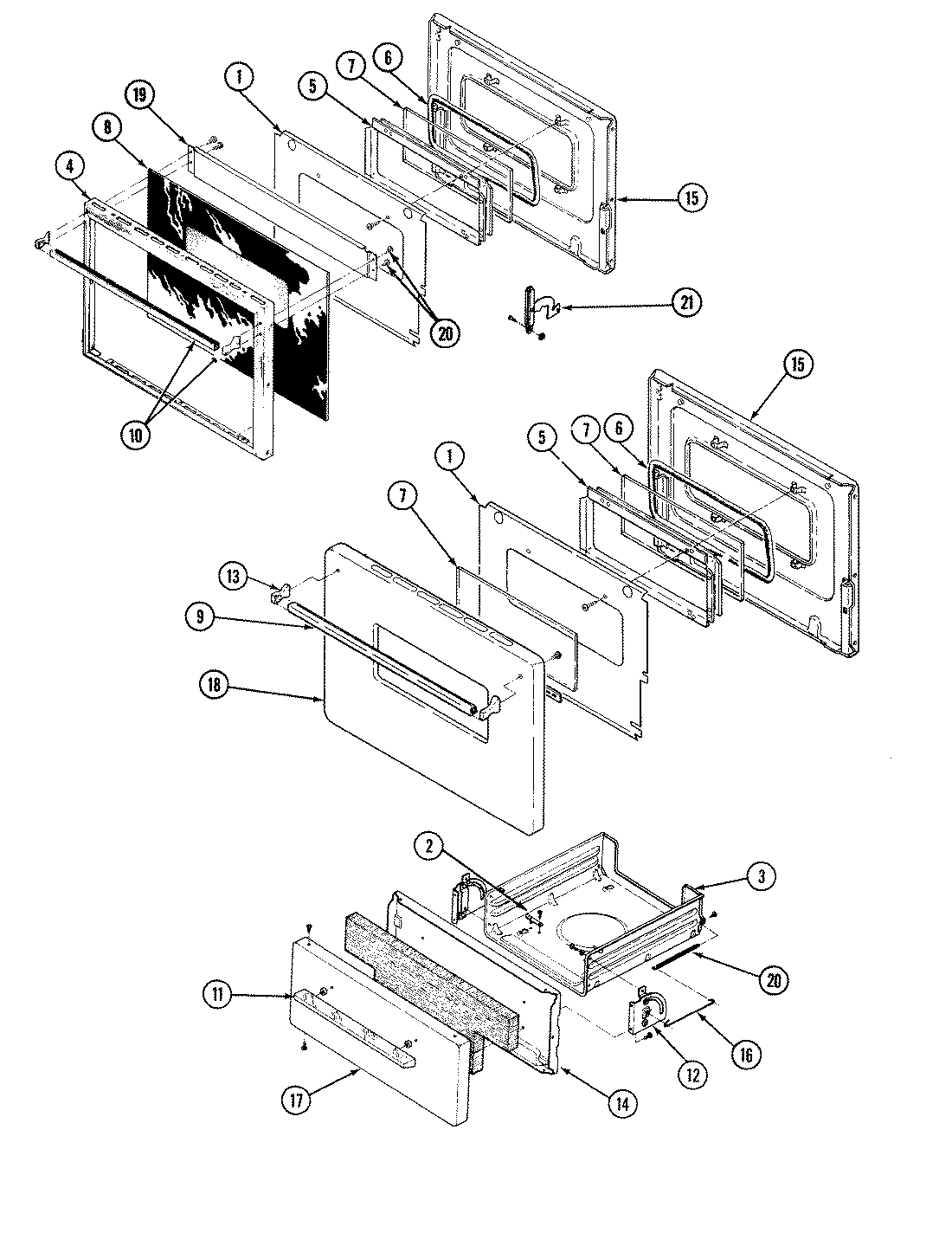

31HA-92KLX-EL 04 – DOOR PARTS

Products

Position	Product
1	MAY 3601F094-51
2	CLIP, DOOR
2	MAY 8002P001-60
3	MAY 3407W009-11
4	MAY 7706P178-60
5	MAY 3603F013-80
6	MAY 7201P017-60
7	MAY 7902P035-60
8	MAY 7902P274-60
10	MAY 7701P047-60
12	MAY 3418A062-34
12	MAY 3418A063-34
13	MAY 7728P012-60
14	MAY 2404F021-23
14	MAY 2404F021-19
15	MAY 2402W091-16
16	MAY 7807P001-60
17	MAY 2416F013-74
19	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
19	MAY 7208P011-60
19	MAY 1726252
19	MAY 7101P080-60
19	74002481 Whirlpool Screw
19	MAY 8010P002-60
20	MAY 7803P002-60
20	MAY 7803P014-60
21	MAY 3420A033-34
