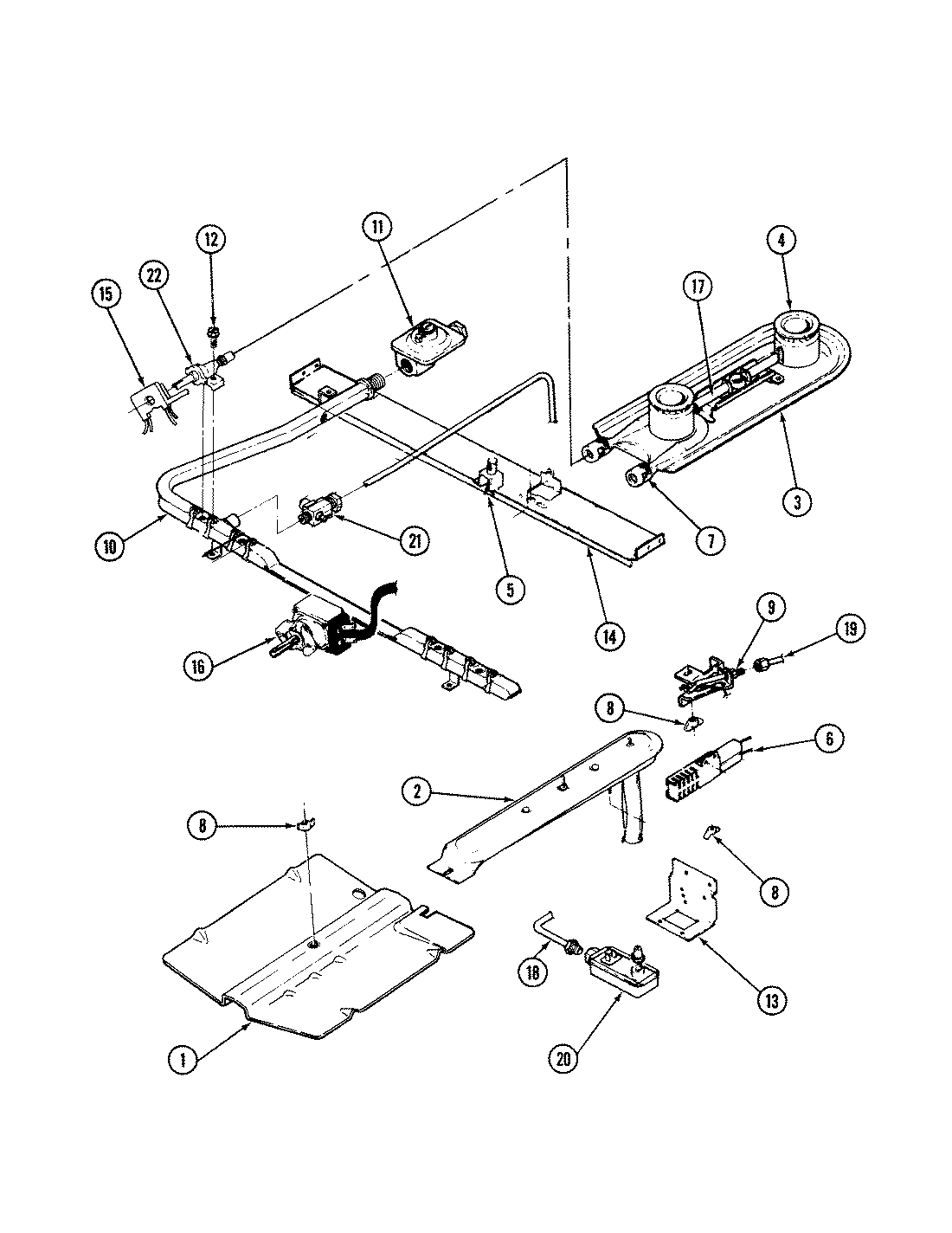

31HA-92KLX-ON 04 – GAS CONTROLS

Products

Position	Product
1	MAY 3601F099-45
2	MAY 3403A015-45
2	MAY 7505P101-60
2	MAY 3403D027-45
3	MAY 3412A004-23
3	MAY 3412A004-19
4	MAY 7504P001-60
4	MAY 4005F304-51
5	MAY 7432P008-60
5	MAY 7432P015-60
6	MAY 7733P027-60
6	WP7731P018-60 Whirlpool Knob
6	MAY 7432P062-60
7	MAY 3411F004-34
7	MAY 7431P006-60
8	NUT, WING
10	MAY 7513P043-60
10	MAY 3830F006-45
10	MAY 7513P101-60
10	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
10	MAY 7513P133-60
11	MAY 7510P002-60
12	MAY 3411F006-35
12	MAY 3411F006-34
12	MAY 7101P296-60
12	MAY 7101P044-60
12	MAY 7101P043-60
13	MAY 3807F120-34
14	MAY 3807F221-80
