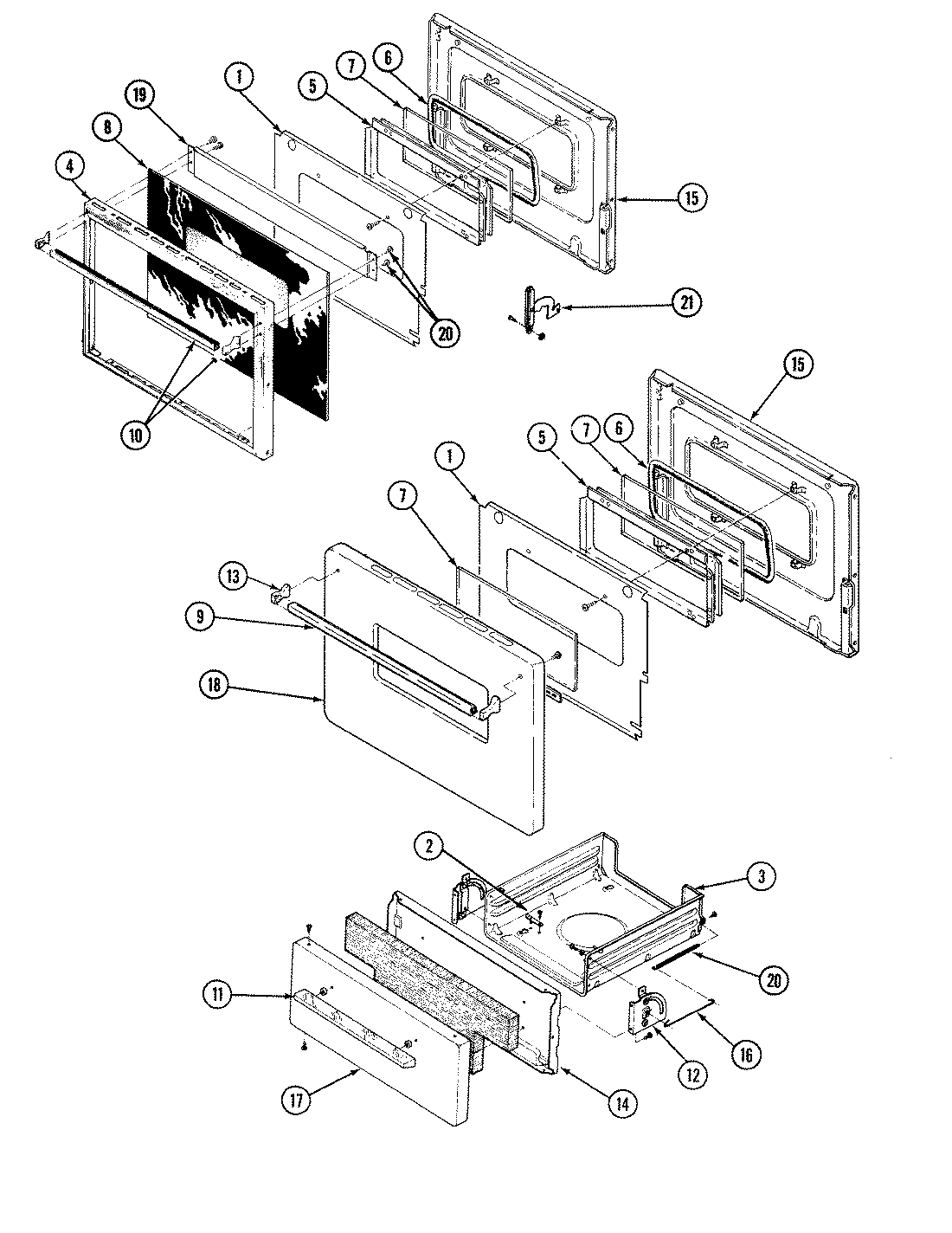

31HG-92KW 04 – DOOR PARTS

Products

Position	Product
1	MAY 3601F094-51
2	MAY 8002P001-60
3	MAY 3407W009-11
5	MAY 3603F013-80
6	MAY 7201P017-60
7	MAY 7902P035-60
8	MAY 7902P051-60
9	MAY 7701P030-60
10	MAY 7701P047-60
11	MAY 7701P012-60
12	MAY 3418A062-34
12	MAY 3418A063-34
13	MAY 7728P012-60
14	MAY 2404F021-23
14	MAY 2404F021-19
15	MAY 2402W091-16
16	MAY 7807P001-60
19	MAY 3804F050-80
19	MAY 8010P002-60
19	74002481 Whirlpool Screw
19	MAY 7101P080-60
19	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
20	MAY 7803P014-60
20	MAY 7803P002-60
21	MAY 3420A033-34
