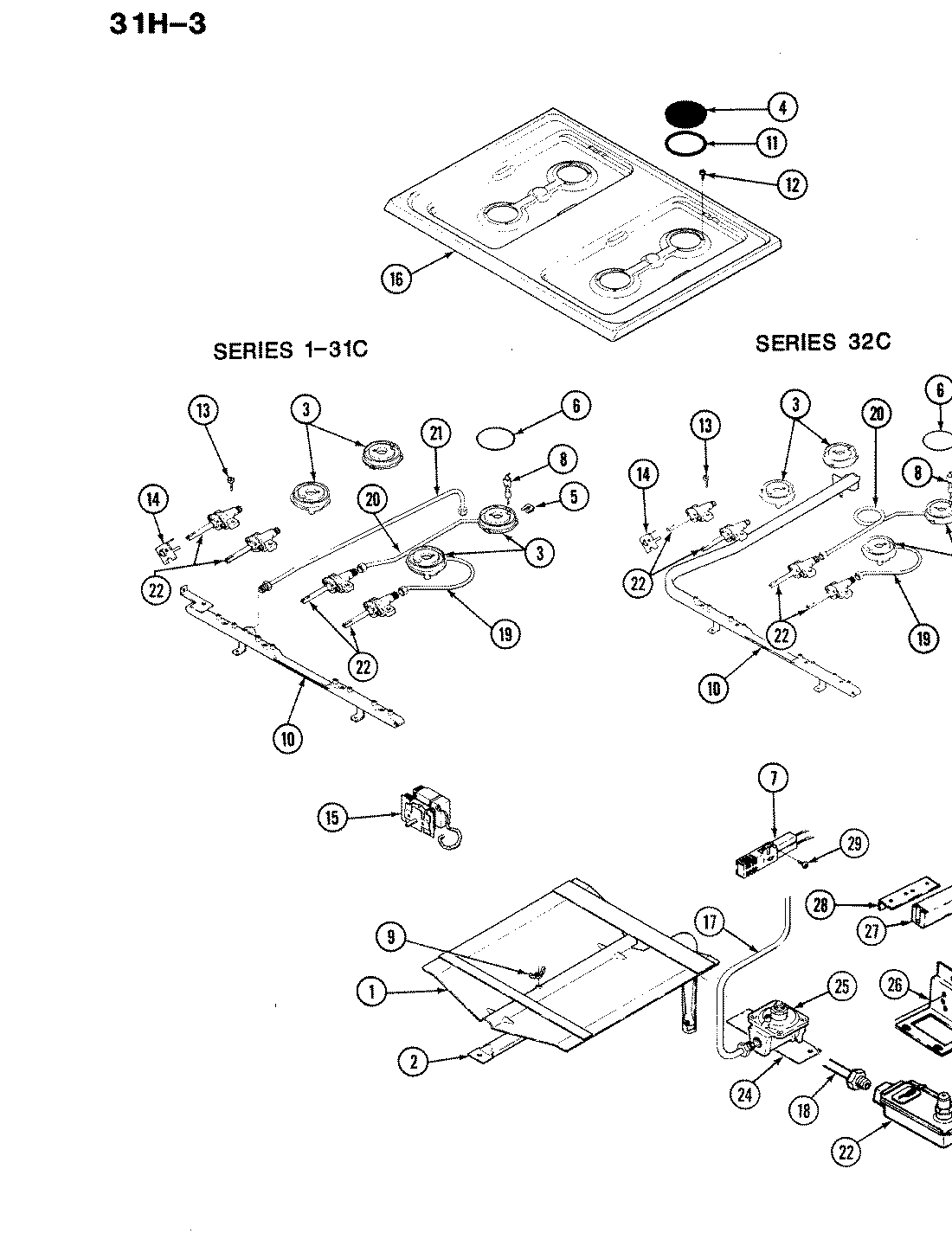

31HN-3KLW 03 – CONTROL SYSTEM

Products

Position	Product
1	MAY 3601F181-45
2	MAY 3403A015-45
2	MAY 7505P101-60
3	MAY 7505P187-60
3	MAY W10127325
4	MAY 7504P007-60
4	MAY 7504P005-60
5	MAY 7112P072-60
5	MAY 7507P053-60
5	MAY 4005F304-51
6	MAY 7201P037-60
6	MAY 7518P004-60
7	MAY 7432P067-60
7	MAY 7101P057-60
7	MAY 7432P052-60
8	MAY 7432P053-60
9	MAY 7509P034-60
9	MAY 7509P033-60
9	NUT, WING
10	MAY 7513P093-60
10	MAY 3830F006-45
10	MAY 7513P086-60
11	MAY 2014F001-00
12	MAY 7101P256-60
13	MAY 3411F006-34
13	MAY 3411F006-35
14	WP7403P190-60 Whirlpool Switch
15	MAY 7101P101-60
15	MAY 7515P008-60
16	MAY 2001F063-91
17	MAY 7506P090-60
17	MAY 7506P100-60
18	MAY 7506P098-60
19	MAY 7506P076-60
20	MAY 7506P077-60
21	MAY 7506P092-60
21	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
22	MAY 7501P017-60
23	MAY 7502P100-60
23	MAY 7101P043-60
23	MAY 5110A824-60
23	MAY 5110A825-60
24	MAY 3801F191-45
25	MAY 7510P026-60
26	MAY 3807F120-34
27	MAY 7431P006-60
27	MAY 7431P016-60
27	MAY 7431P017-60
28	MAY 3801F205-45
29	SCREW (10-24X5/16-NI)
