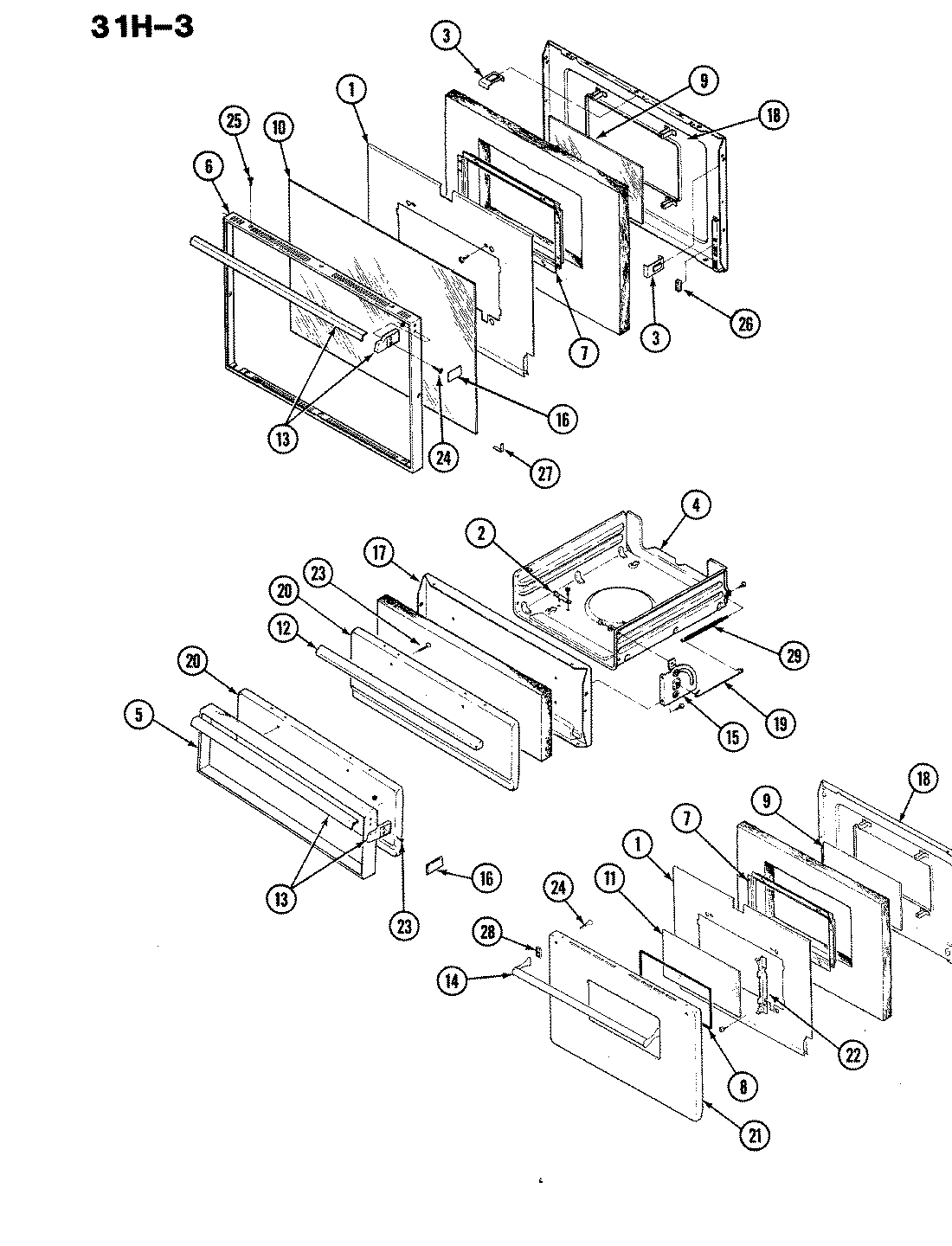

31HN-3KLW 04 – DOOR

Products

Position	Product
1	MAY 7101P061-60
1	WP7101P126-60 Whirlpool Screw
1	MAY 3601F094-51
2	MAY 8002P001-60
4	MAY 3407W009-23
7	MAY 3603F013-80
8	MAY 7201P017-60
9	MAY 7902P035-60
11	MAY 7902P051-60
12	MAY 7701P030-60
14	MAY 7701P011-60
15	MAY 3418A062-34
15	MAY 3418A063-34
17	MAY 2404F021-23
17	MAY 7101P058-60
18	MAY 2402W091-16
19	MAY 7807P001-60
20	MAY 2416F025-71
21	MAY 2401F042-71
22	MAY 3804F095-80
23	74002481 Whirlpool Screw
23	MAY 7101P080-60
24	MAY 7101P073-60
26	MAY 8010P002-60
27	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
28	MAY 8010P028-60
29	MAY 7803P014-60
29	MAY 3420A033-34
29	MAY 7803P002-60
