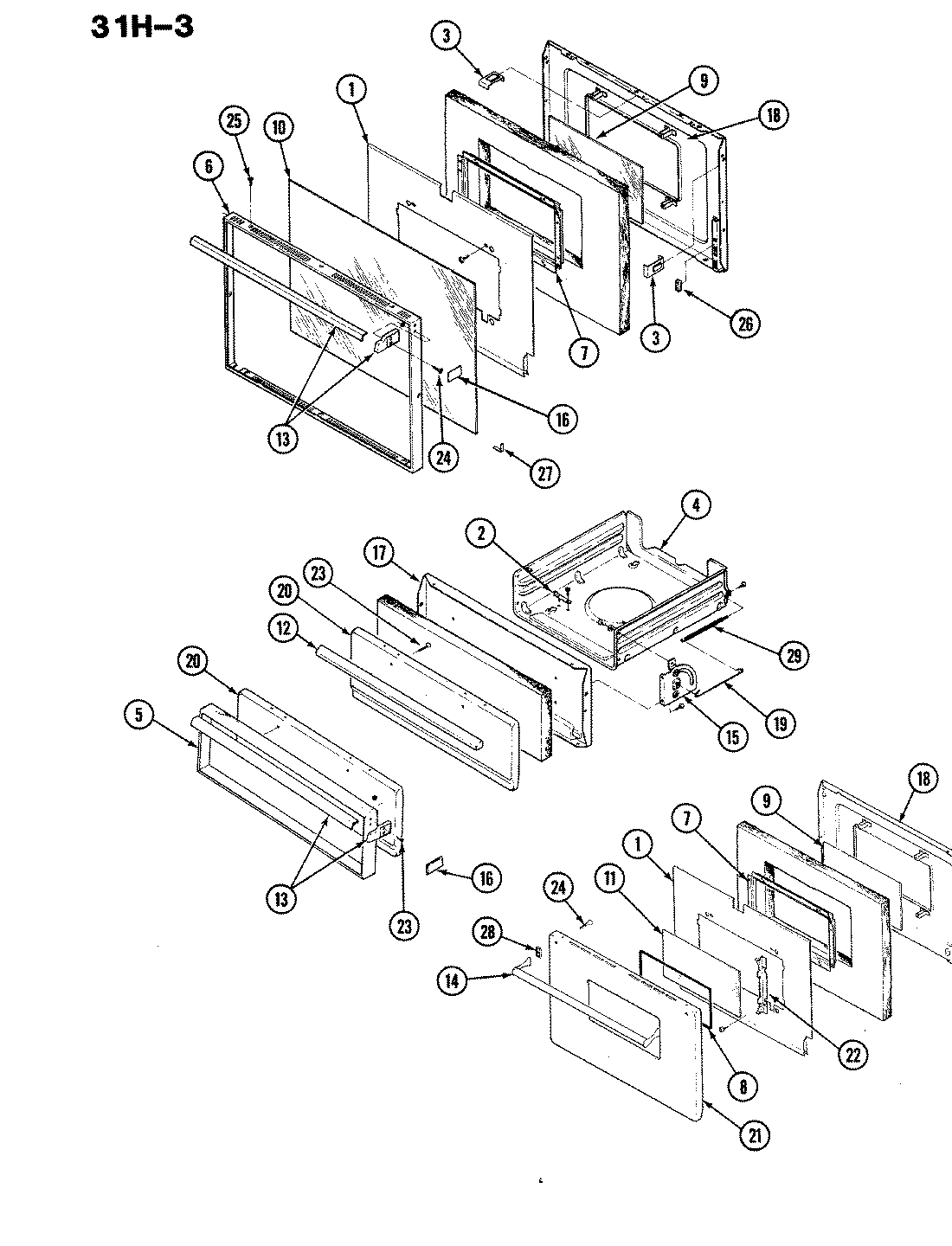

31HN-3KLX 04 – DOOR

Products

Position	Product
1	MAY 7101P061-60
1	MAY 3601F094-51
2	MAY 8002P001-60
3	CLIP, DOOR
4	MAY 3407W009-23
5	MAY 7706P182-60
6	MAY 7706P178-60
7	MAY 3603F013-80
9	MAY 7902P035-60
10	MAY 7902P274-60
13	MAY 7701P047-60
15	MAY 3418A063-34
15	MAY 3418A062-34
16	MAY 7728P012-60
17	MAY 2404F021-23
17	MAY 7101P058-60
18	MAY 2402W091-16
19	MAY 7807P001-60
20	MAY 2416F025-71
23	MAY 7101P083-60
23	MAY 7101P080-60
24	MAY 7101P123-60
25	WP7101P126-60 Whirlpool Screw
26	MAY 8010P002-60
26	MAY 7208P011-60
27	MAY 8010P045-60
28	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
29	MAY 7803P002-60
29	MAY 3420A033-34
29	MAY 7803P014-60
