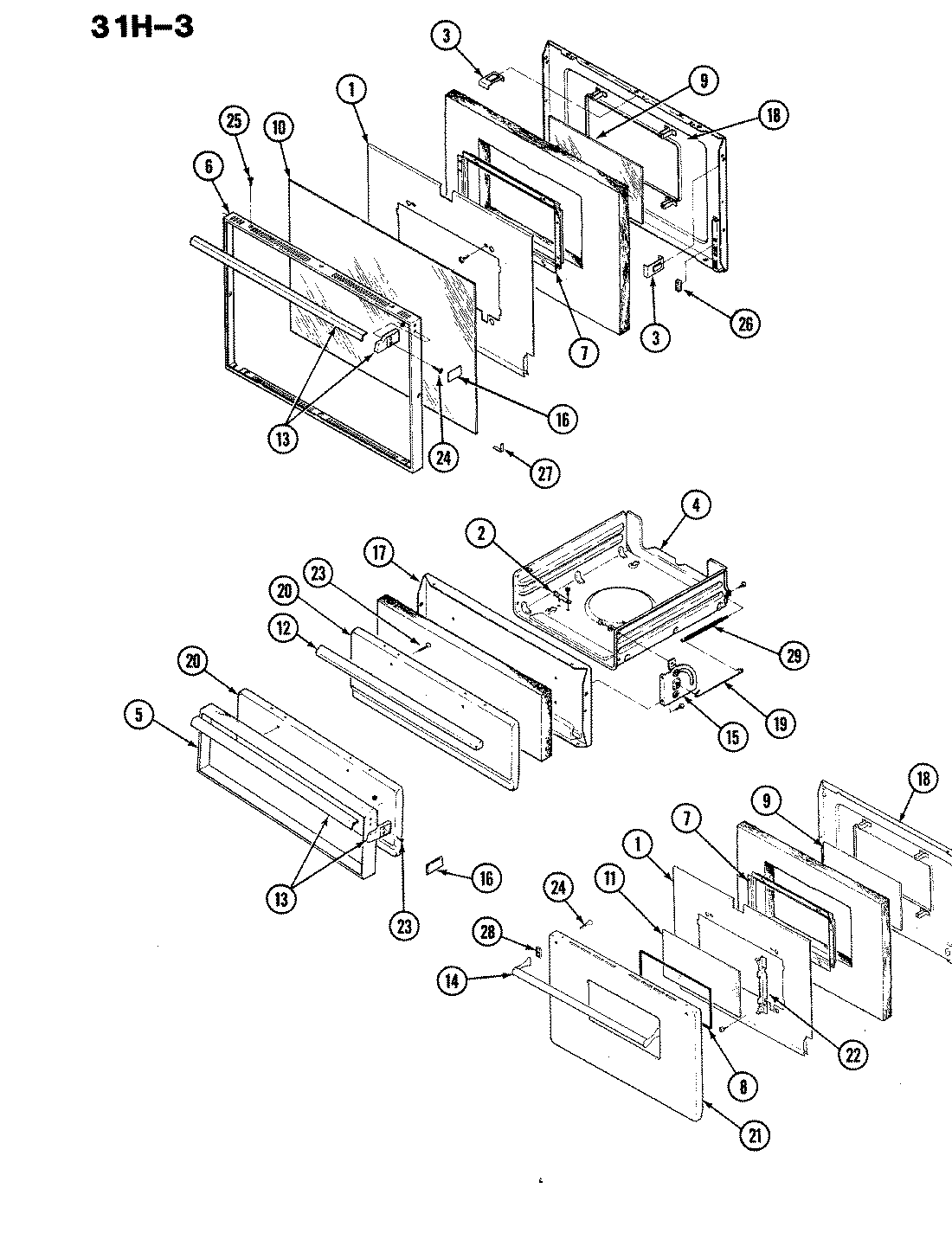

| 1 | MAY 3601F094-51 |
| 1 | MAY 7101P061-60 |
| 2 | MAY 8002P001-60 |
| 3 | CLIP, DOOR |
| 4 | MAY 3407W009-23 |
| 5 | MAY 7706P182-60 |
| 6 | MAY 7706P178-60 |
| 7 | MAY 3603F013-80 |
| 9 | MAY 7902P035-60 |
| 10 | MAY 7902P285-60 |
| 13 | MAY 7701P123-60 |
| 13 | MAY 7701P031-60 |
| 15 | MAY 3418A063-34 |
| 15 | MAY 3418A062-34 |
| 16 | MAY 7728P012-60 |
| 17 | MAY 2404F021-23 |
| 17 | MAY 7101P058-60 |
| 18 | MAY 2402W091-23 |
| 19 | MAY 7807P001-60 |
| 20 | MAY 2416F014-71 |
| 24 | MAY 7101P123-60 |
| 25 | WP7101P126-60 Whirlpool Screw |
| 26 | MAY 7208P011-60 |
| 27 | MAY 8010P045-60 |
| 28 | NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED) |
| 29 | MAY 7803P002-60 |
| 29 | MAY 7803P014-60 |
| 29 | MAY 3420A033-34 |
